Diagnostic Procedure

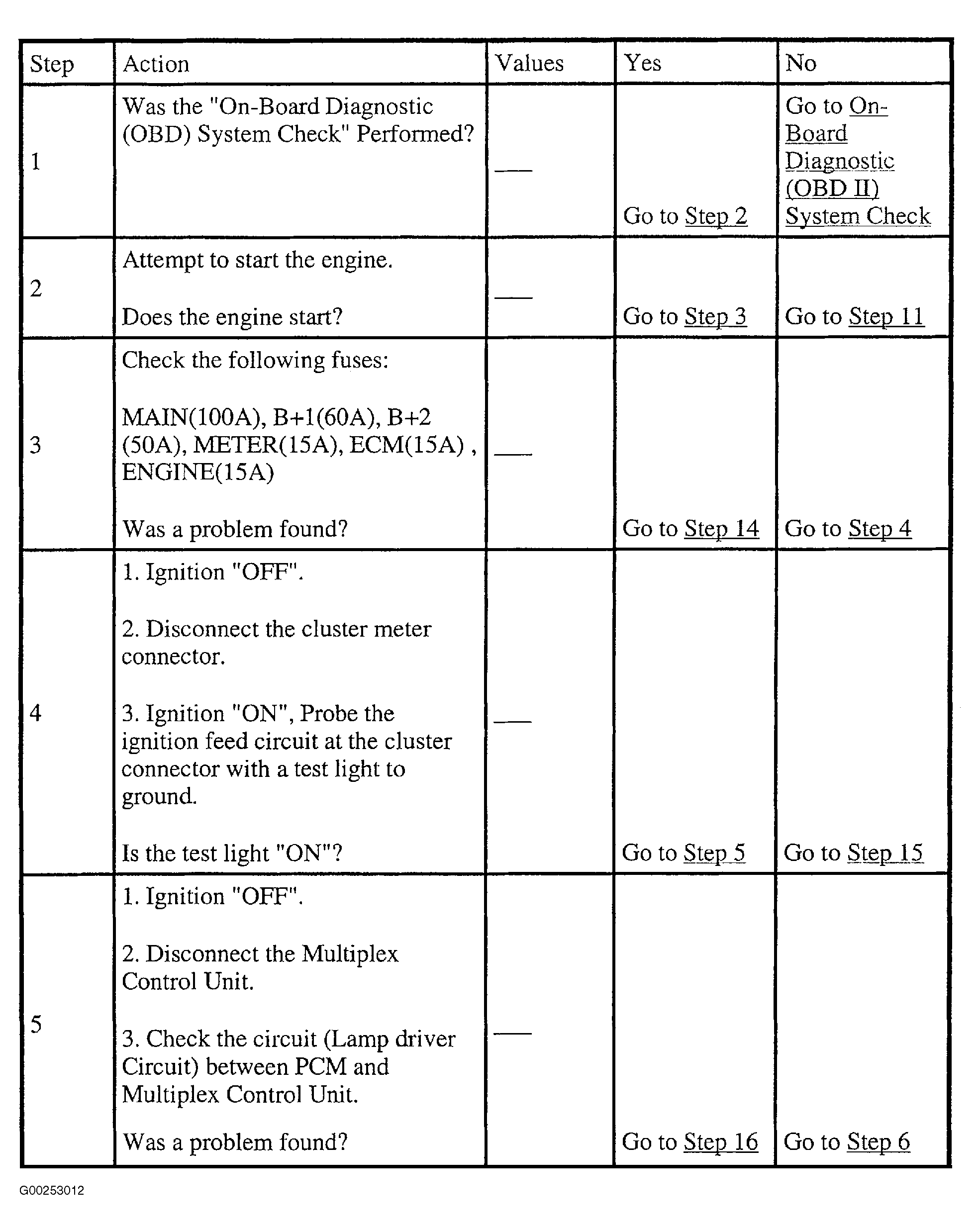

Fig 1: No Reduced Power Lamp (Steps 1-5)

Courtesy of ISUZU MOTOR CO.

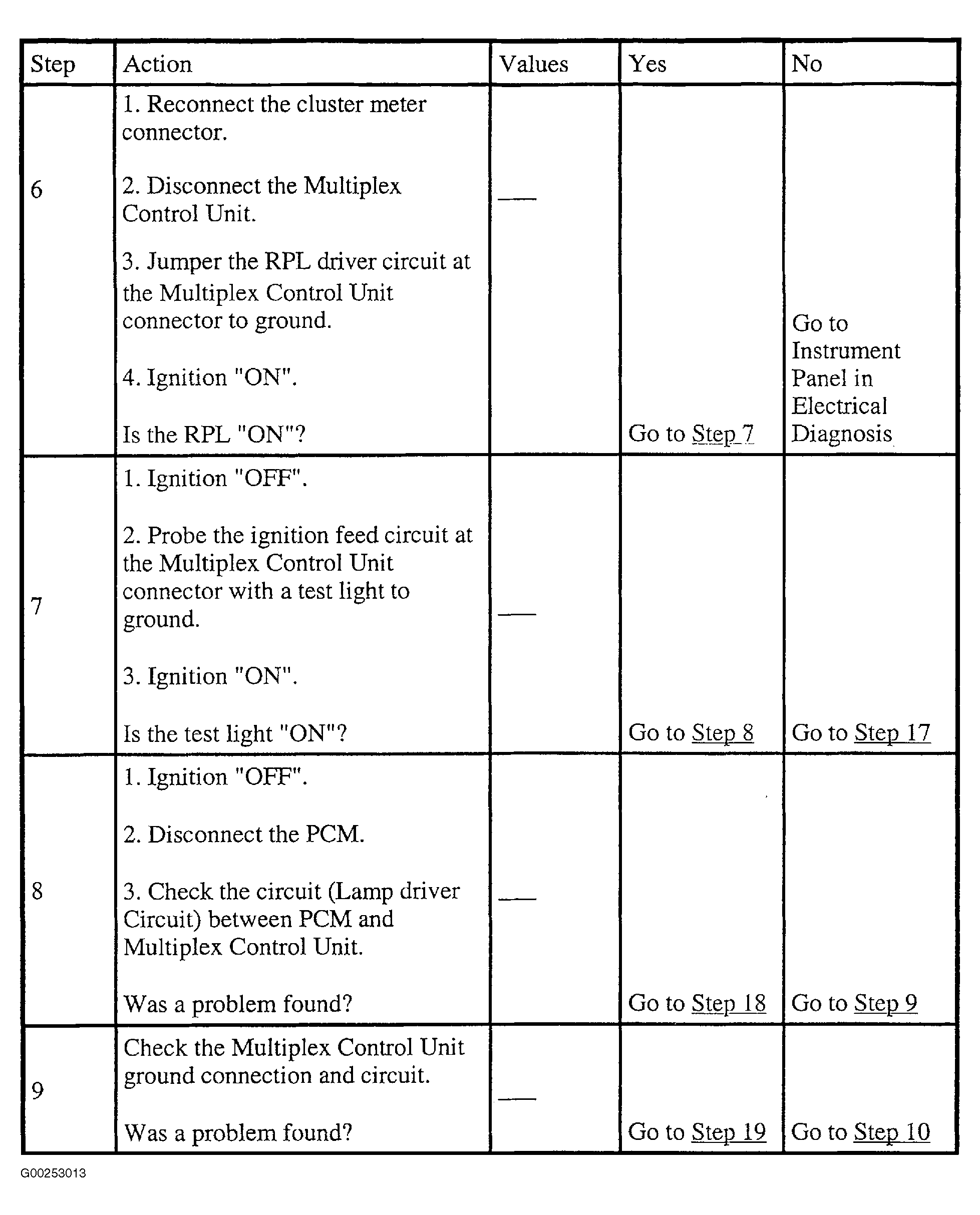

Fig 2: No Reduced Power Lamp (Steps 6-9)

Courtesy of ISUZU MOTOR CO.

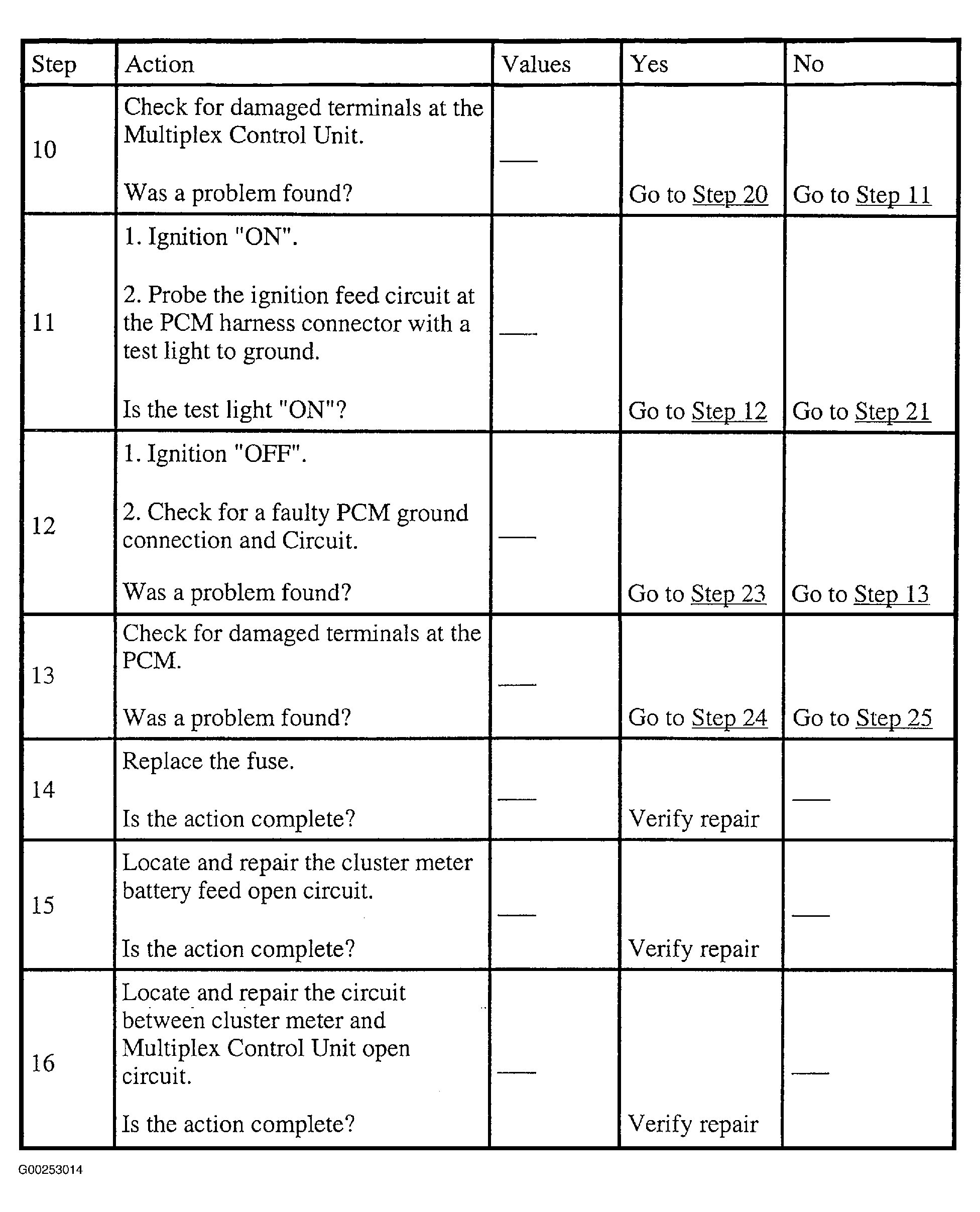

Fig 3: No Reduced Power Lamp (Steps 10-16)

Courtesy of ISUZU MOTOR CO.

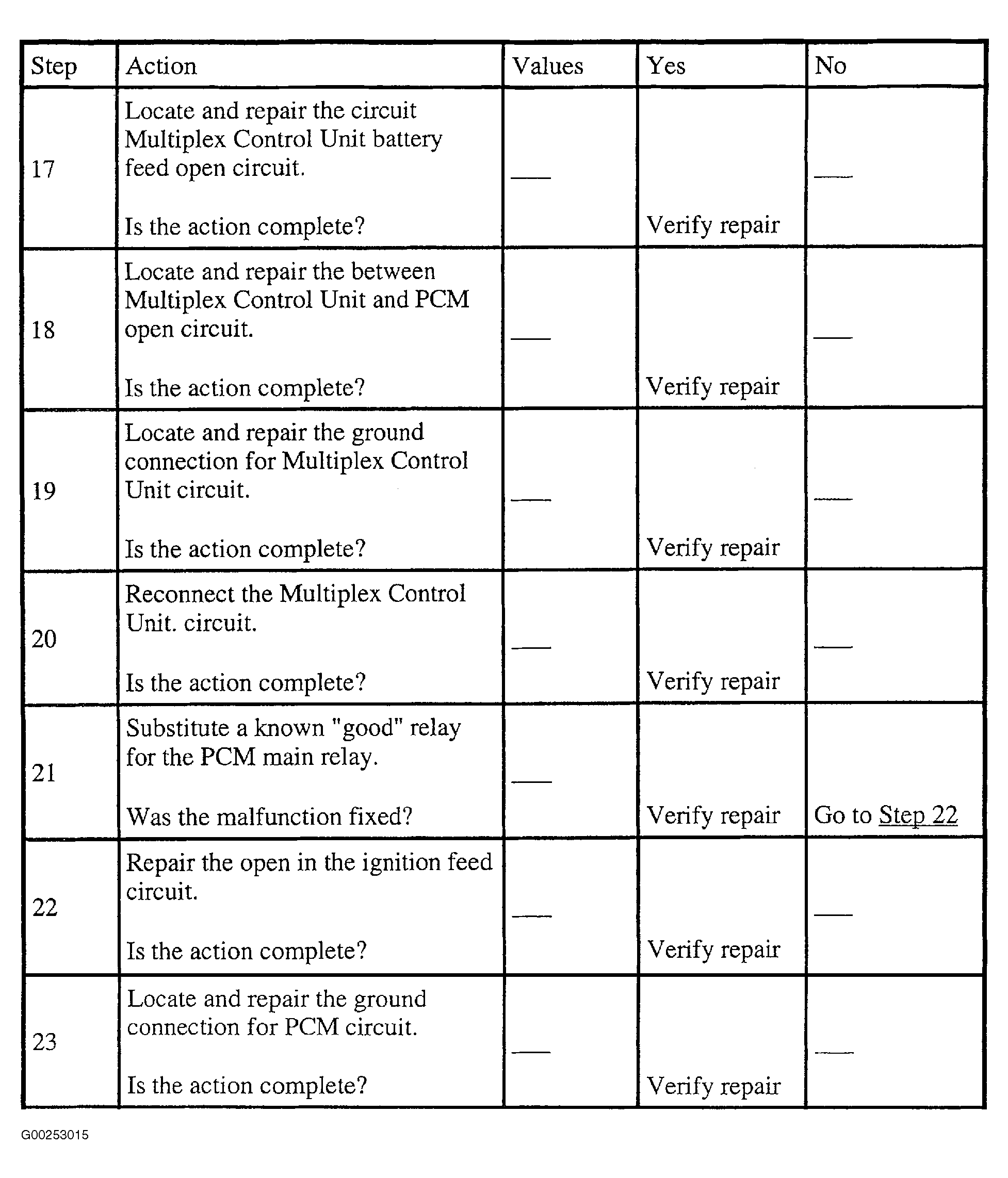

Fig 4: No Reduced Power Lamp (Steps 17-23)

Courtesy of ISUZU MOTOR CO.

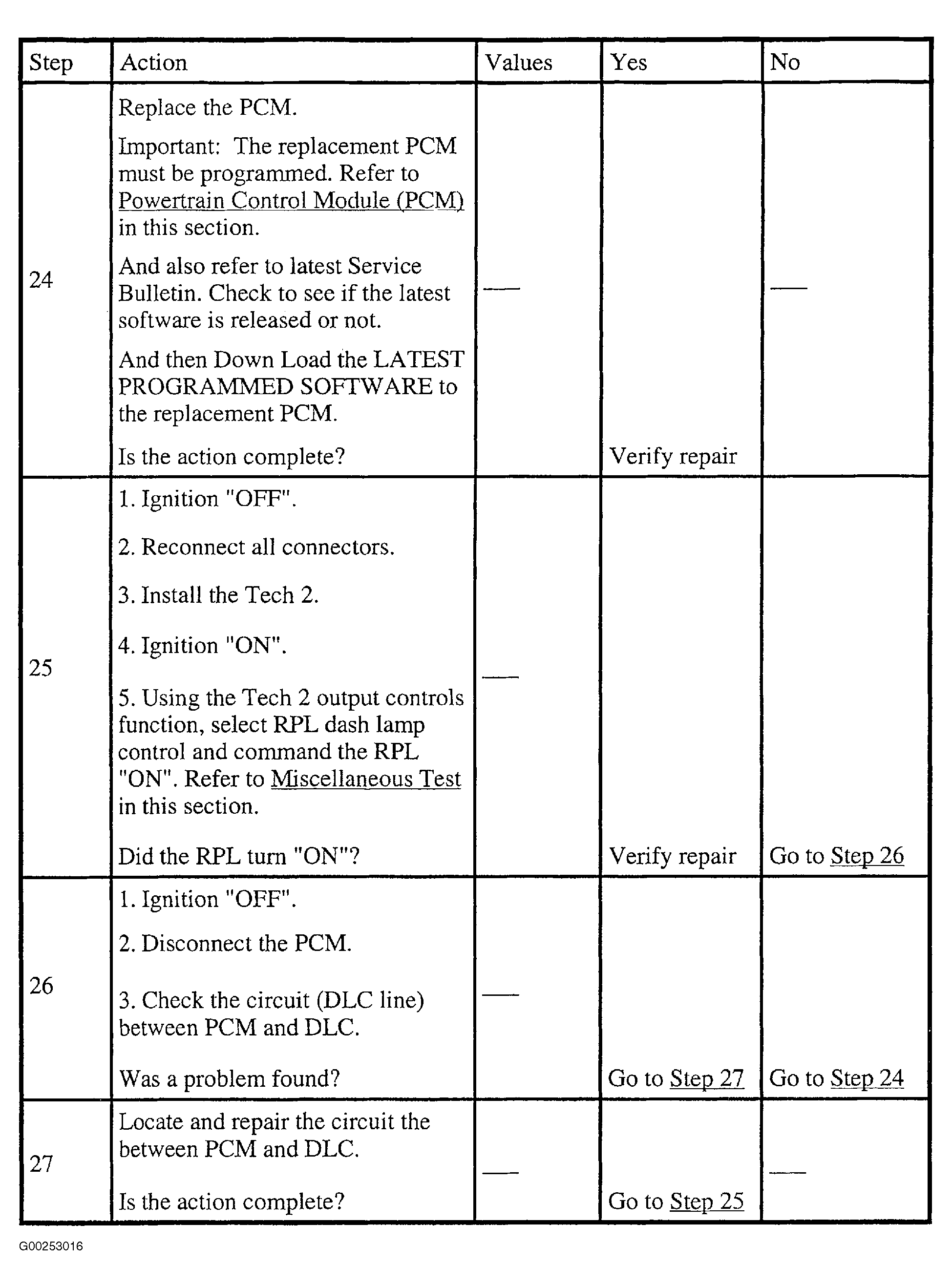

Fig 5: No Reduced Power Lamp (Steps 24-27)

Courtesy of ISUZU MOTOR CO.
