Diagnostic Trouble Code (DTC) Identification
DIAGNOSTIC TROUBLE CODE (DTC) IDENTIFICATION

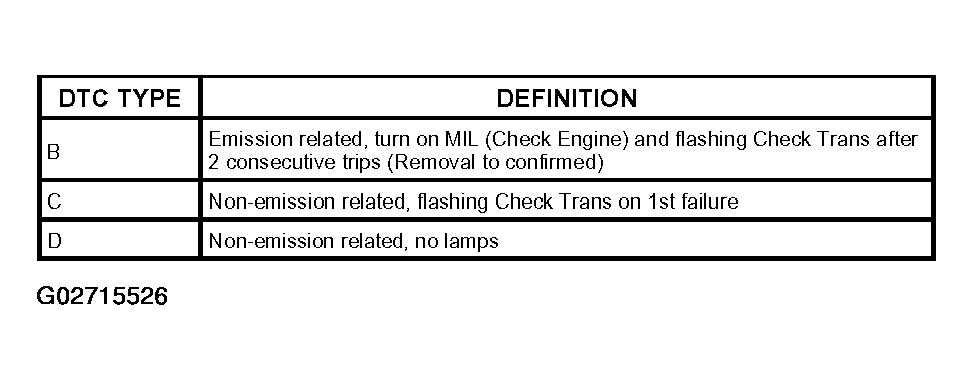

| DTC NUMBER | DTC NAME | DTC TYPE | MIL "CHECK ENGINE" | "CHECK TRANS" |
|---|---|---|---|---|
| P0218 | Transmission Fluid Over Temperature | D | - | - |
| P0705 | Transmission Range Switch (Mode Switch) Illegal Position | D | - | - |
| P0706 | Transmission Range Switch (Mode Switch) Performance | D | - | - |
| P0711 | Transmission Fluid Temperature (TFT) Sensor Performance | D | - | - |
| P0712 | Transmission Fluid Temperature (TFT) Sensor Circuit Low Input | D | - | - |
| P0713 | Transmission Fluid Temperature (TFT) Sensor Circuit High Input | D | - | - |
| P0719 | Brake Switch Circuit Low (Stuck on) | D | - | - |
| P0722 | Automatic Transmission Output Speed Sensor (OSS) Low Input | B | ON | Flash |
| P0723 | Automatic Transmission Output Speed Sensor (OSS) Intermittent | B | ON | Flash |
| P0724 | Brake Switch Circuit High (Stuck OFF) | D | - | - |
| P0730 | Gear Error With out Input Speed | C | - | Flash |
| P0742 | Torque Converter Clutch (TCC) System Stuck ON | B | ON | Flash |
| P0748 | Pressure Control Solenoid (PCS) (Force Motor) Circuit Electrical | C | - | Flash |
| P0751 | Shift Solenoid (A) Performance (Stuck OFF) | B | ON | Flash |
| P0752 | Shift Solenoid (A) Performance (Stuck ON) | B | ON | FLASH |
| P0753 | Shift Solenoid (A) Electrical | B | ON | Flash |
| P0756 | Shift Solenoid (B) Performance (Stuck OFF) | B | ON | Flash |
| P0757 | Shift Solenoid (B) Performance (Stuck ON) | B | ON | Flash |
| P0758 | Shift Solenoid (B) Electrical | B | ON | Flash |
| P1850 | Brake Band Apply Solenoid Malfunction | D | - | - |
| P1860 | TCC Solenoid Electrical | B | ON | Flash |
| P1870 | Transmission Component Slipping (TCC Stuck OFF) | B | ON | Flash |
