DTC P0719: Brake Switch Circuit Low (Stuck On): Notes

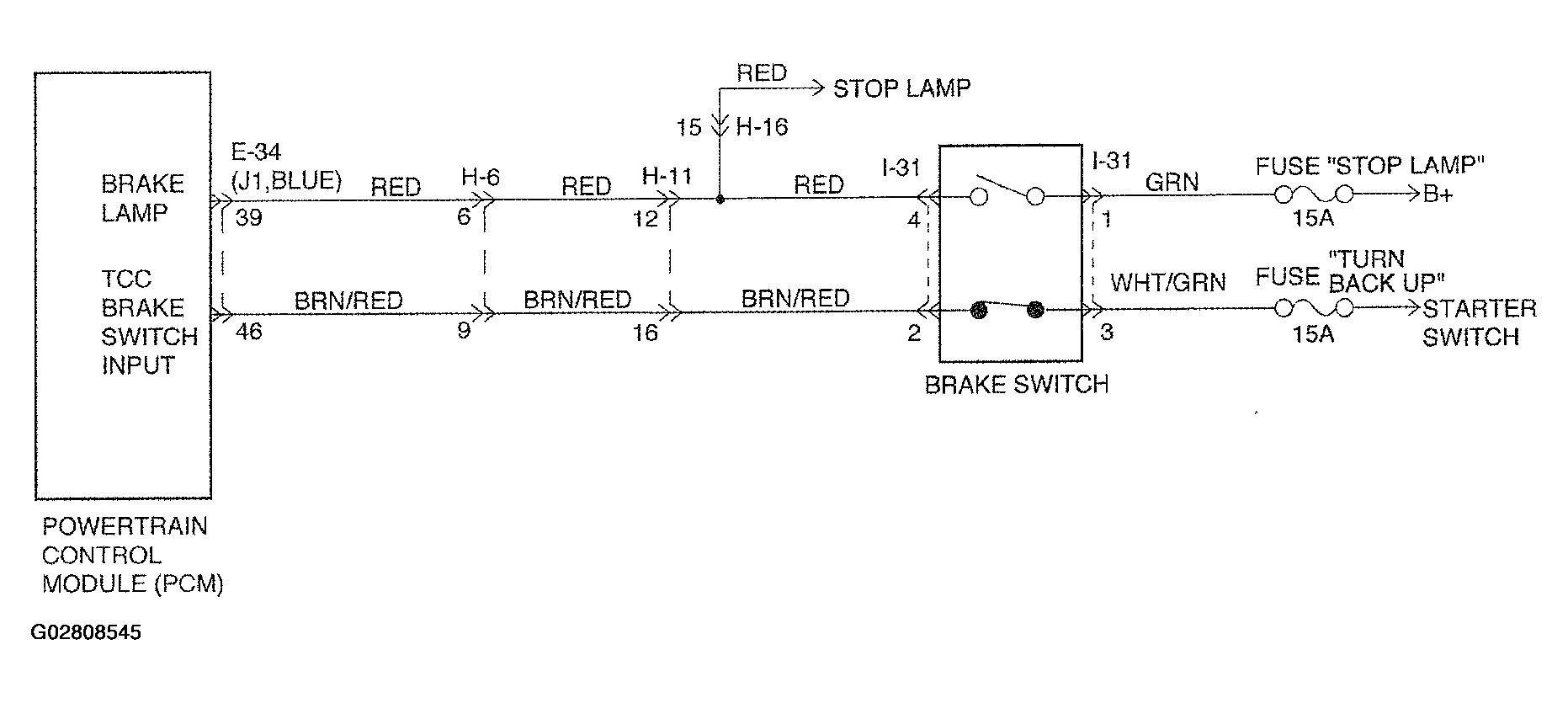

Fig 1: DTC P0719 Brake Switch Circuit Low (Stuck On) Circuit Diagram
G02808545Courtesy of ISUZU MOTOR CO.
