Electronic Control Diagram

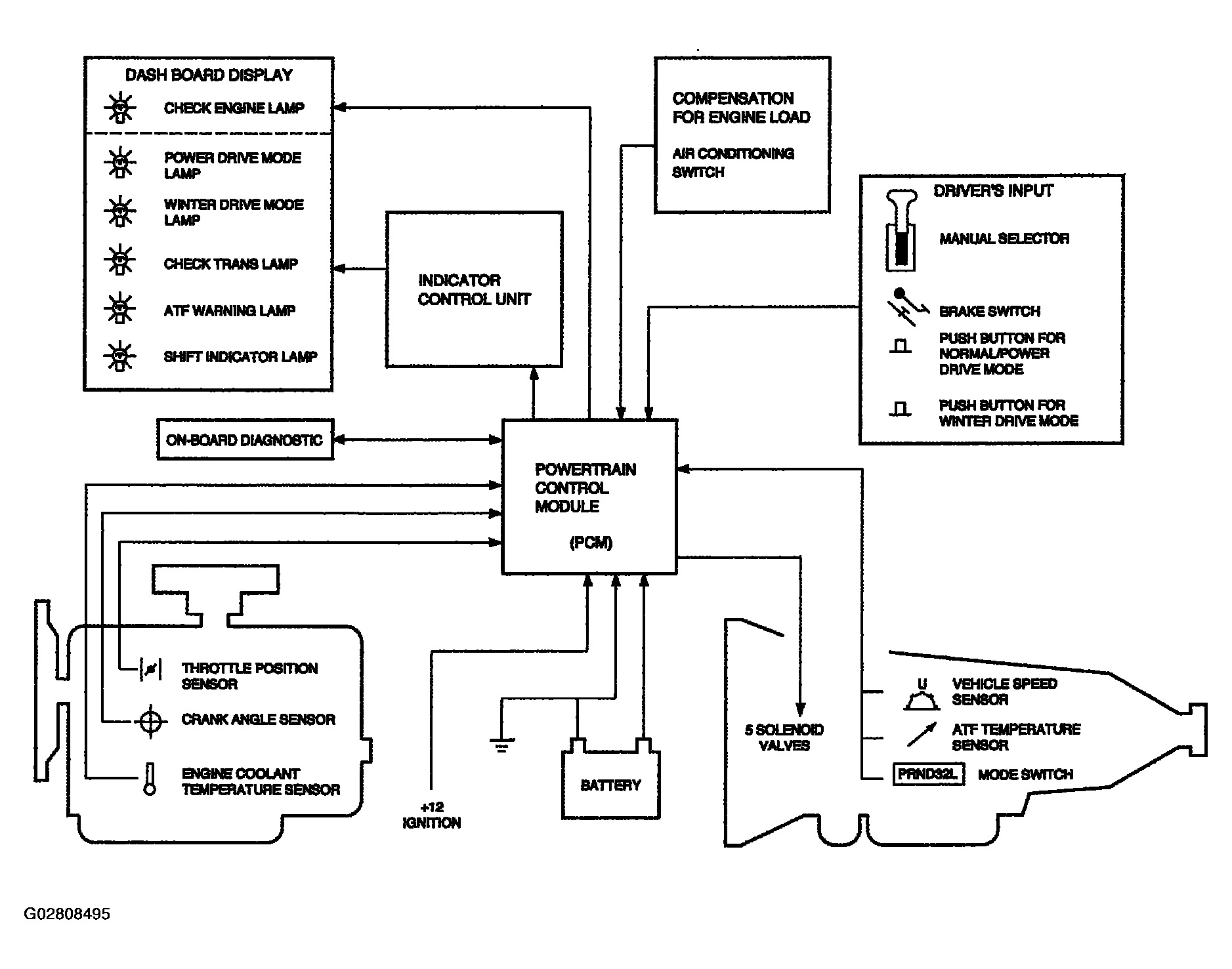

Fig 1: Electronic Control Diagram
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
