Wheel Alignment: Specifications: Specifications

Use illustration for wheel alignment specifications. See Fig 1 .

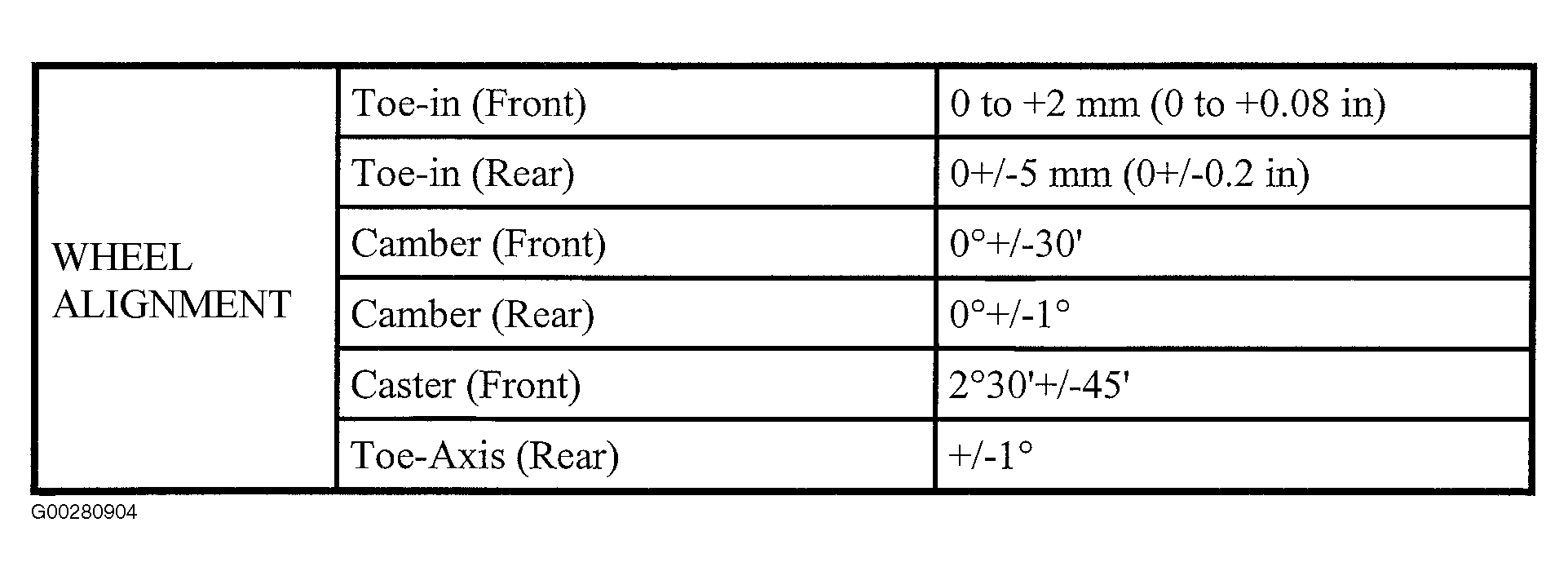

Fig 1: Wheel Alignment Specifications
G00280904Courtesy of ISUZU MOTOR CO.
