Driver Information

To analyze the problem fill out a complete description of the owner's complaint.

Please draw a circle around the right information and complete the following form. You can draw a circle around many numbers if you are not sure.

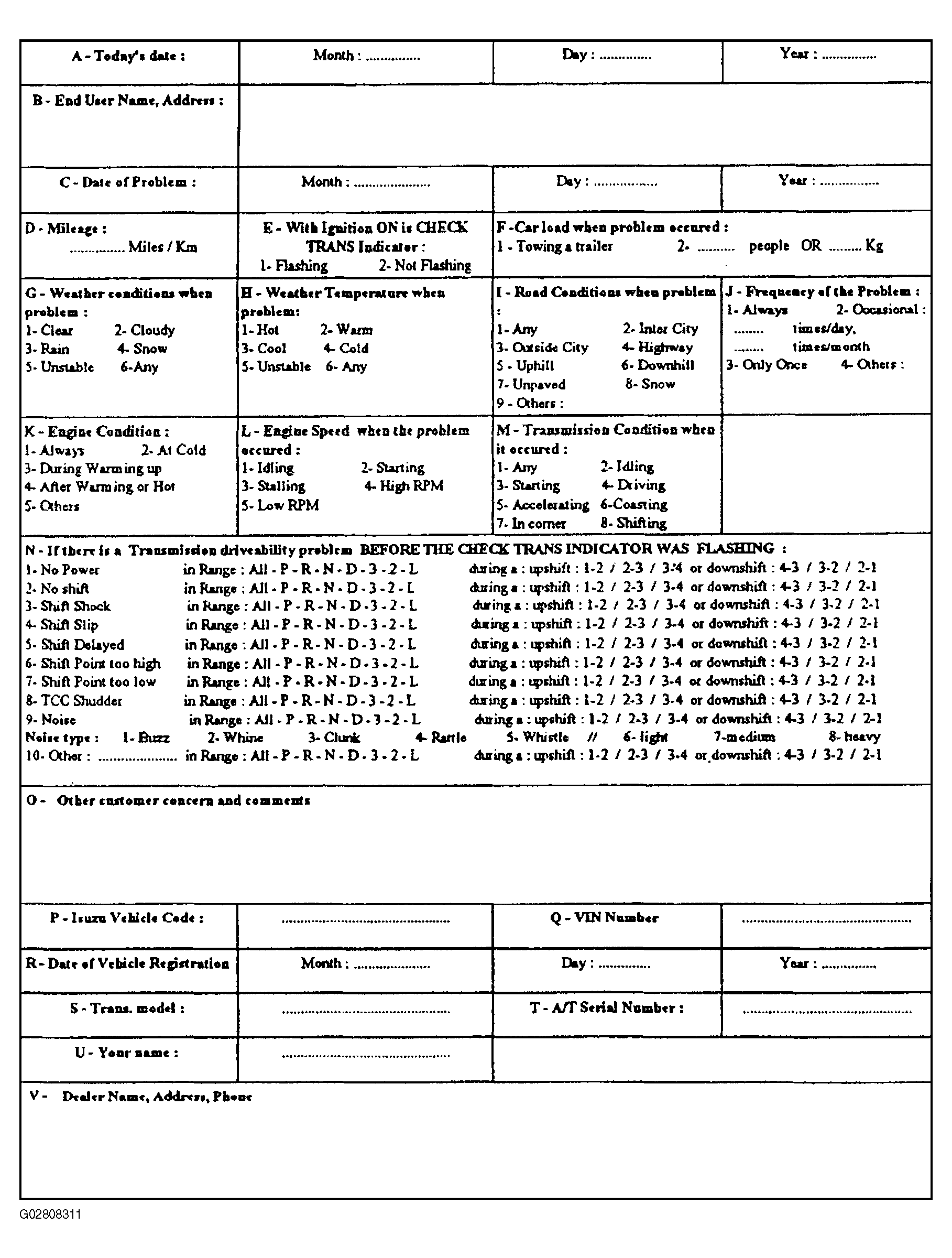

Fig 1: Driver Information Analysis Chart (1 Of 2)
G02808311Courtesy of ISUZU MOTOR CO.

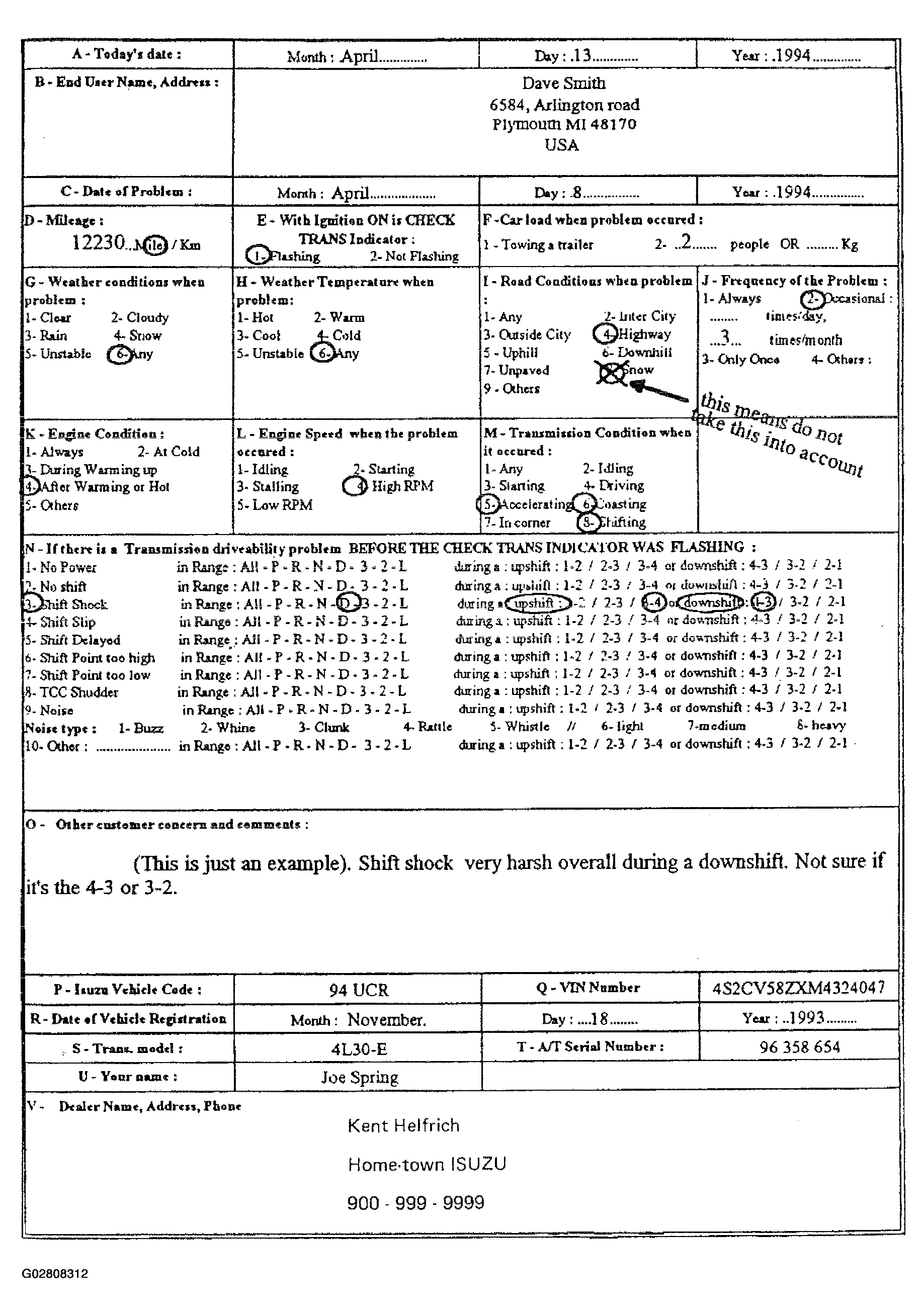

Example of form completed.

Fig 2: Driver Information Analysis Chart (2 Of 2)
G02808312Courtesy of ISUZU MOTOR CO.
