General Diagnosis Procedure

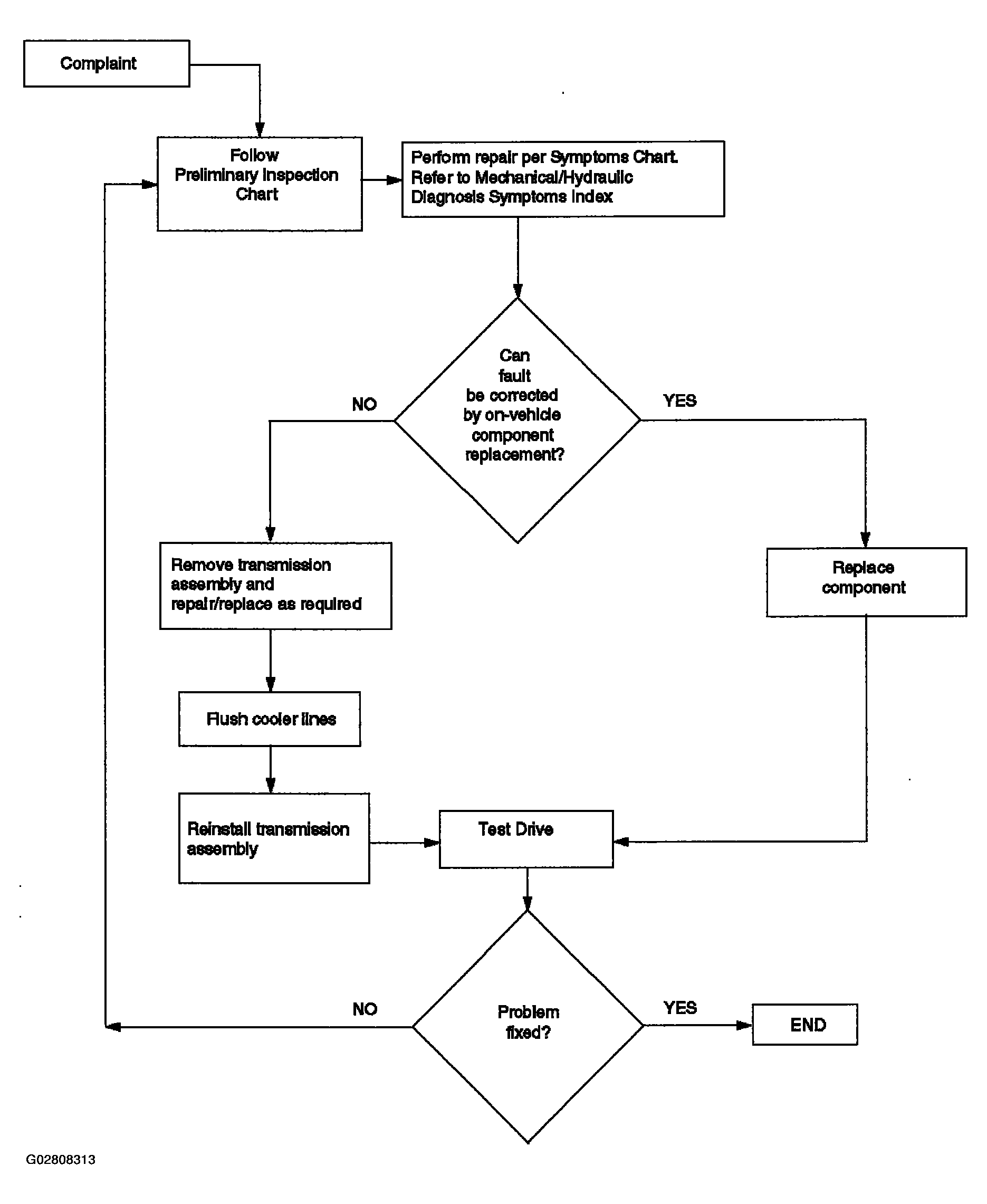

Fig 1: General Diagnosis Procedure - Flow Chart
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
