Lockup Speed Chart

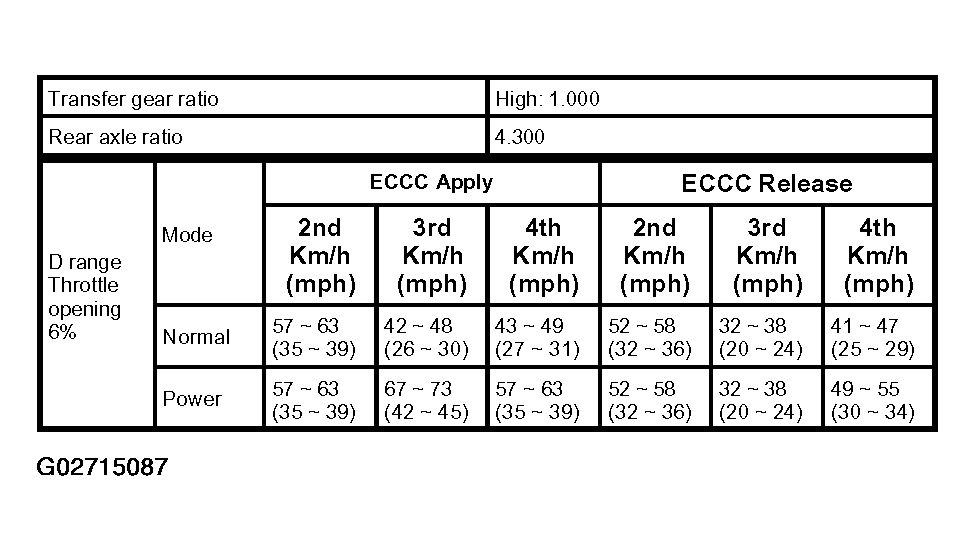

Fig 1: Lockup Speed Chart
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
