Shift Lock Cable: Removal

Set ignition key in "LOCK" position and selector lever in "P" position.
Remove knee pads, cluster upper cover, center cluster assembly, rear console, and front console.
- Refer to SELECTOR LEVER .
Disconnect inner cable from selector lever assembly then push claw and disconnect cable assembly.

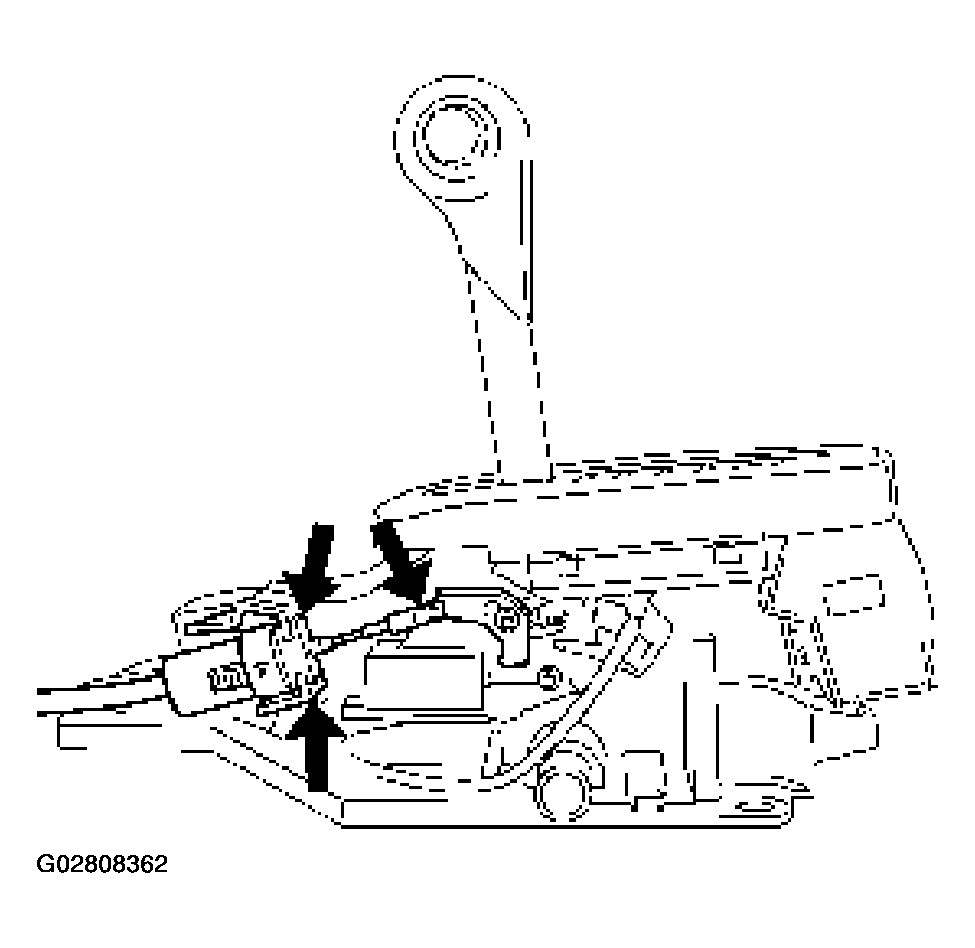

Fig 1: Disconnecting Inner Cable From Selector Lever Assembly
Courtesy of ISUZU MOTOR CO.
Remove instrument panel lower cover and steering column cover.

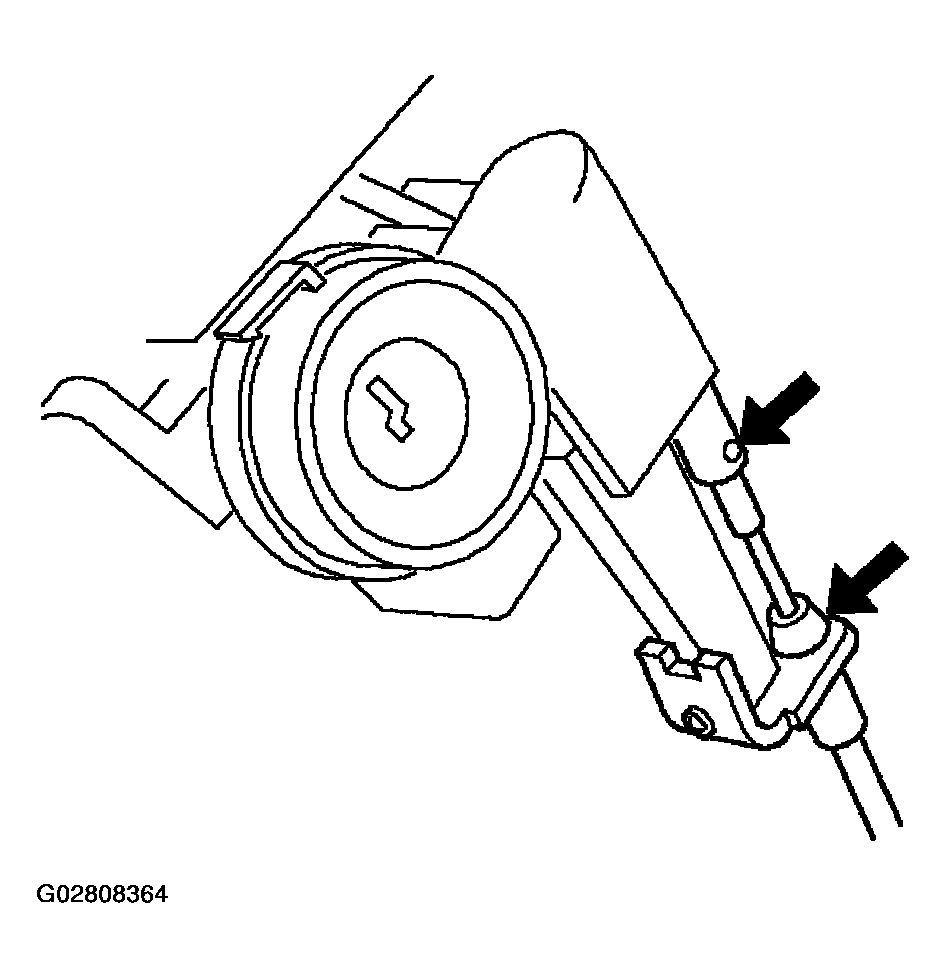

Fig 2: Disconnecting Lock Adjust
Courtesy of ISUZU MOTOR CO.
Remove spring pin and disconnect inner cable.
- Disconnect outer cable from bracket.

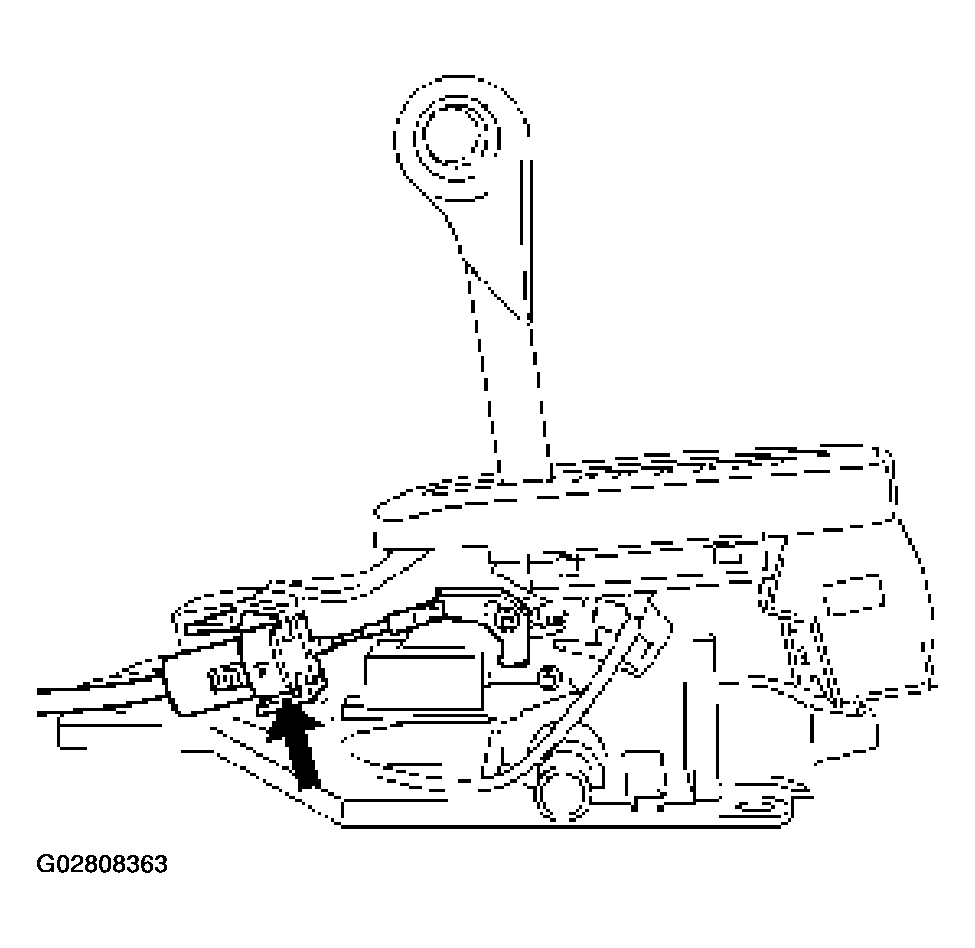

Fig 3: Disconnecting Outer Cable From Bracket

Courtesy of ISUZU MOTOR CO.
