Transmission and Associated Parts: Notes

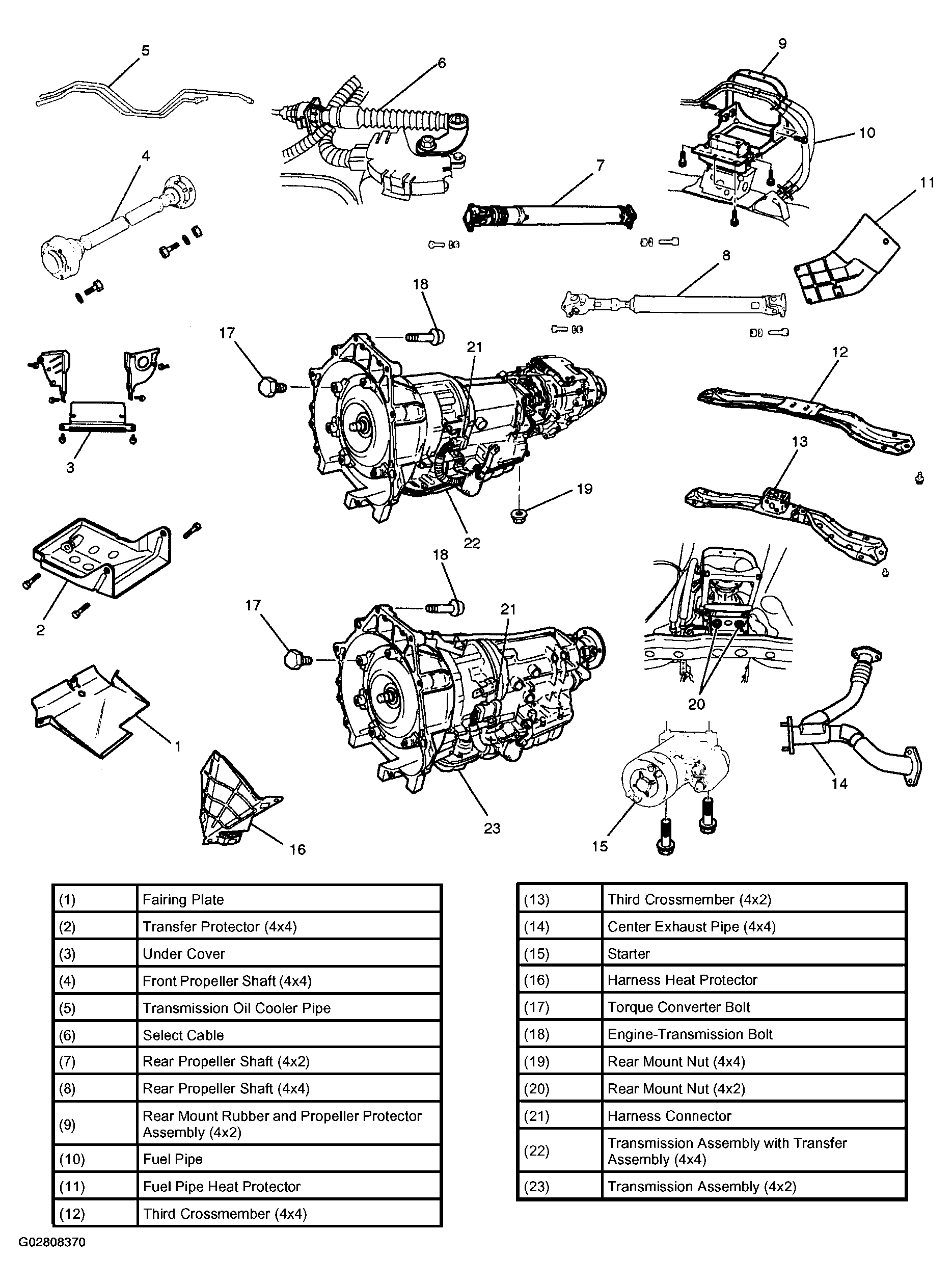

Fig 1: Identifying Transmission And Associated Parts
G02808370Courtesy of ISUZU MOTOR CO.
