Chart 5

TRANSFER NOT CHANGE FROM LOW TO HIGH

Chart 5	Transfer Does Not Change To Low From High
Function of circuit	___
Fail condition	When the TOD switch is selected to the 4L position, the transfer does not change to the low range.

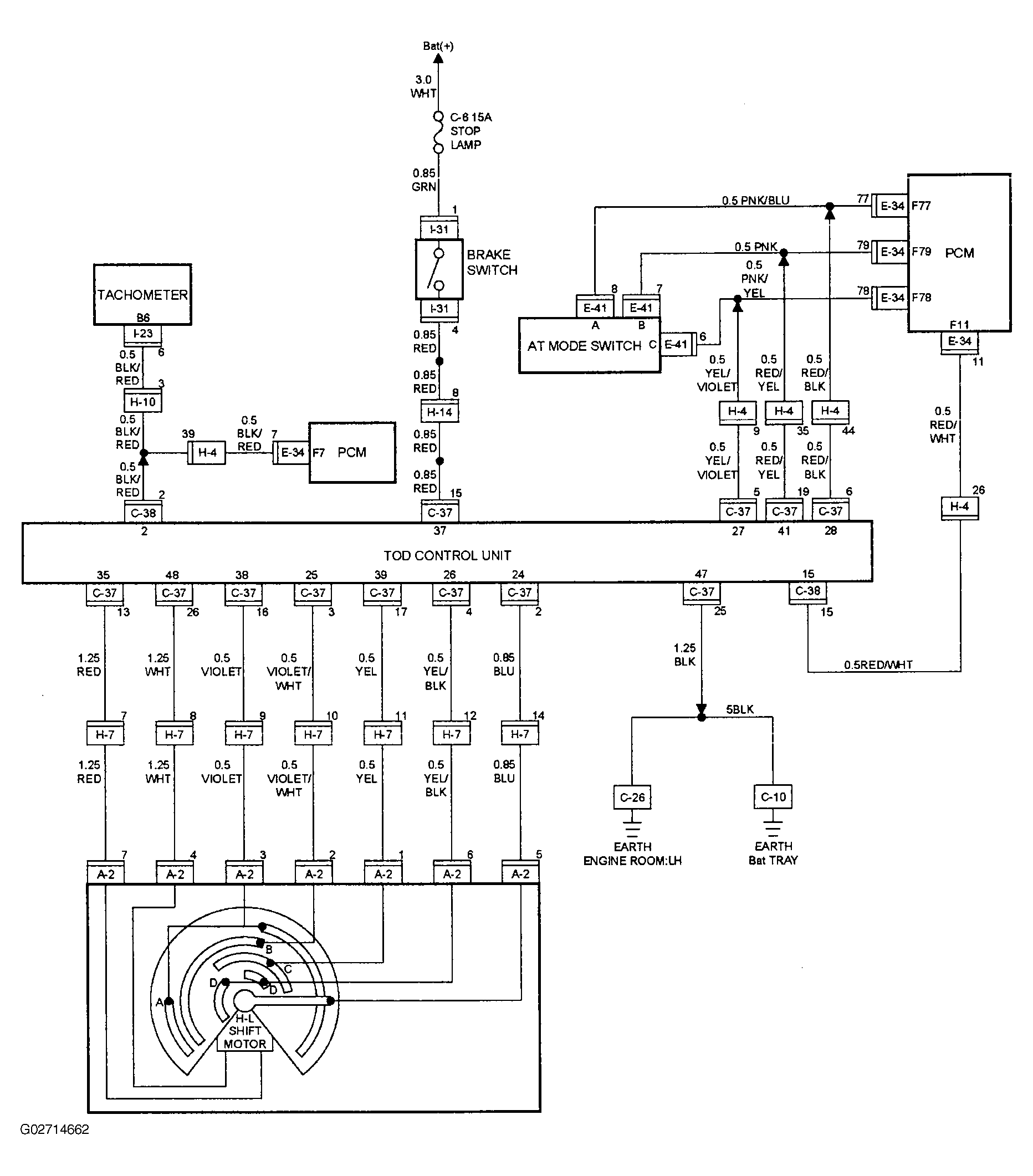

Fig 1: TOD Control Unit Circuit Diagram - Transfer Change (Chart 5)

Courtesy of ISUZU MOTOR CO.

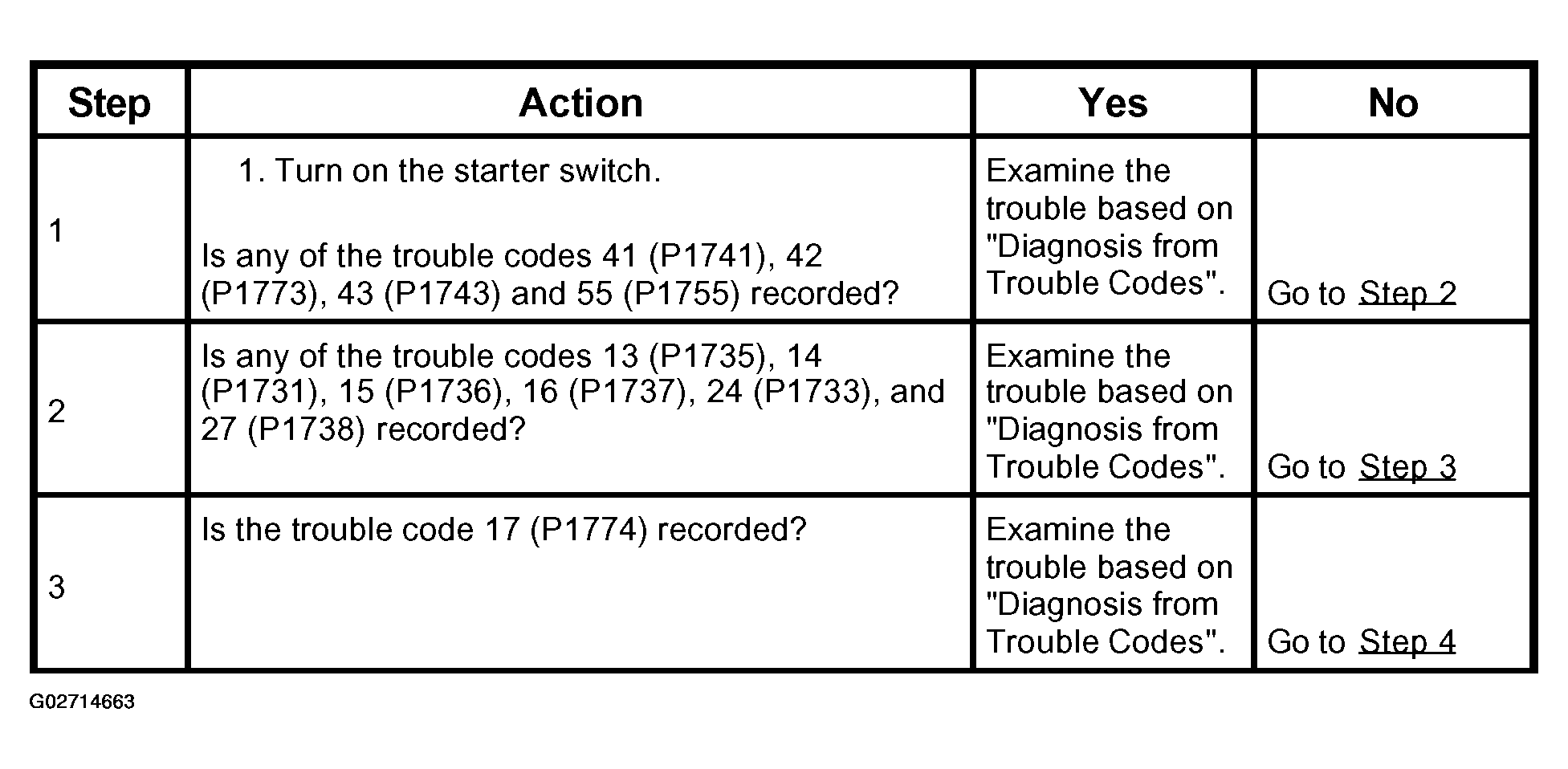

Fig 2: Symptom Diagnostic Procedure (1 Of 2) (Chart 5)

Courtesy of ISUZU MOTOR CO.

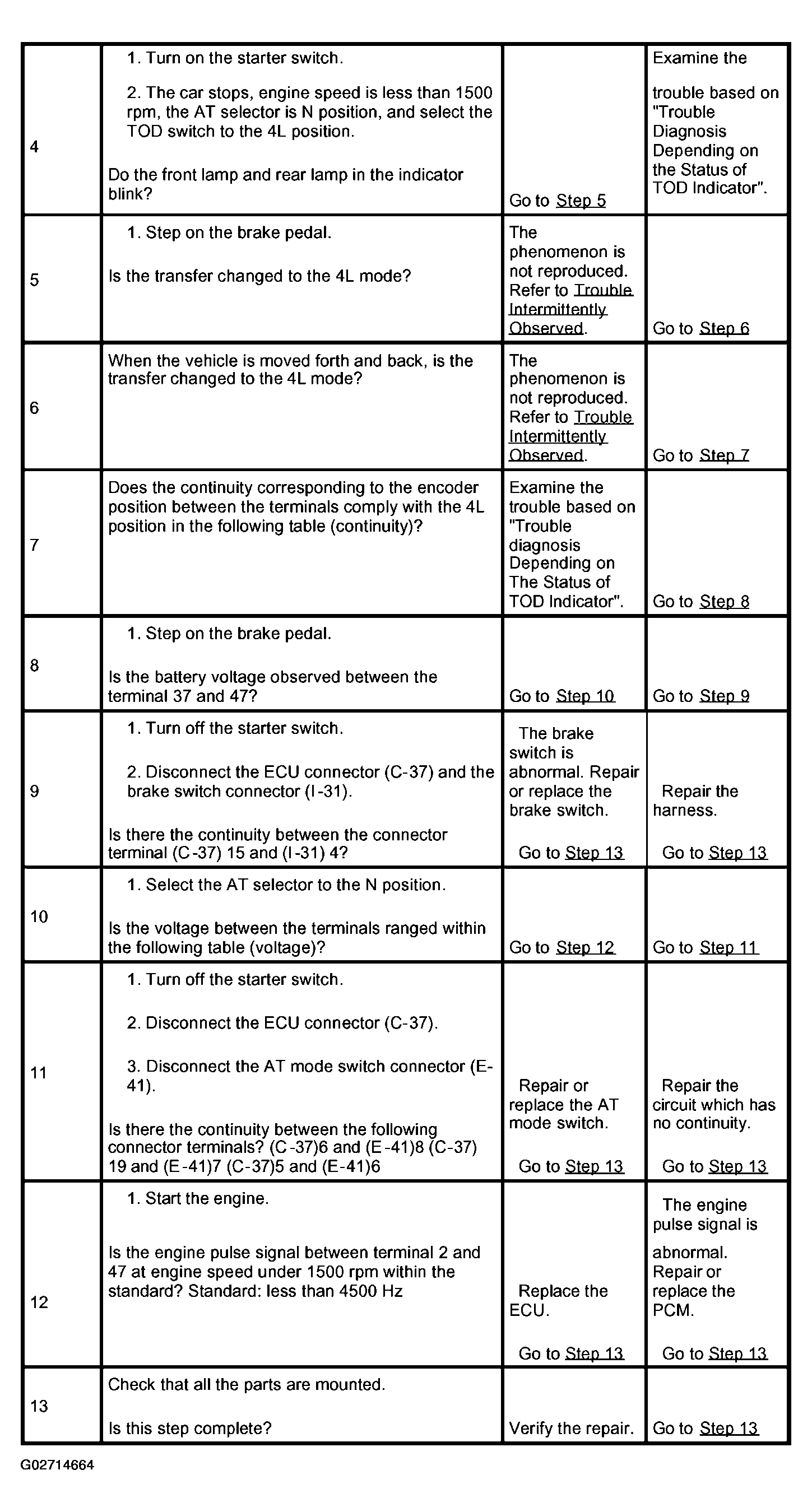

Fig 3: Symptom Diagnostic Procedure (2 Of 2) (Chart 5)

Courtesy of ISUZU MOTOR CO.

Continuity in 4L Position

CONTINUITY BETWEEN TERMINALS IN 4L POSITION

Terminals No.	26 and 24	39 and 24	25 and 24	38 and 24
Continuity of 4L position	YES	NO	YES	YES or NO

TERMINALS STANDARD VOLTAGE

Unit: V
Terminals	28 and 47	41 and 47	27 and 47
Voltage	0	12	0
