Trouble Code: 33 / P1762 - Check Flow 12
TROUBLE CODE: 33 / P1762 - ADC LINE SHORT-CIRCUITED TO GND

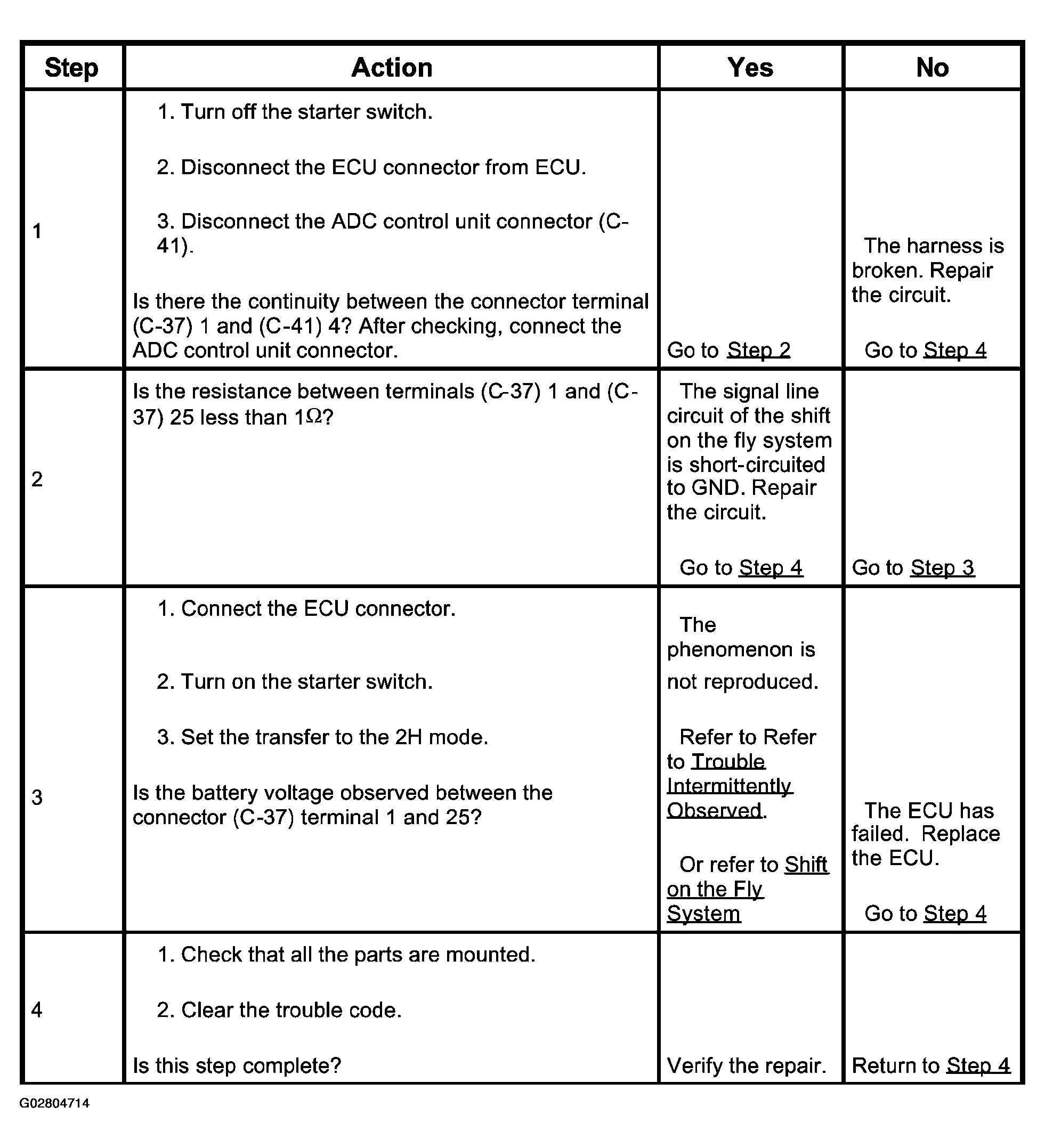

| Check Flow | Trouble Code | Phenomenon | Standard |
|---|---|---|---|
| 12 | 33 (P1762) | The ADC line is short-circuited to GND. | ___ |
NOTE:

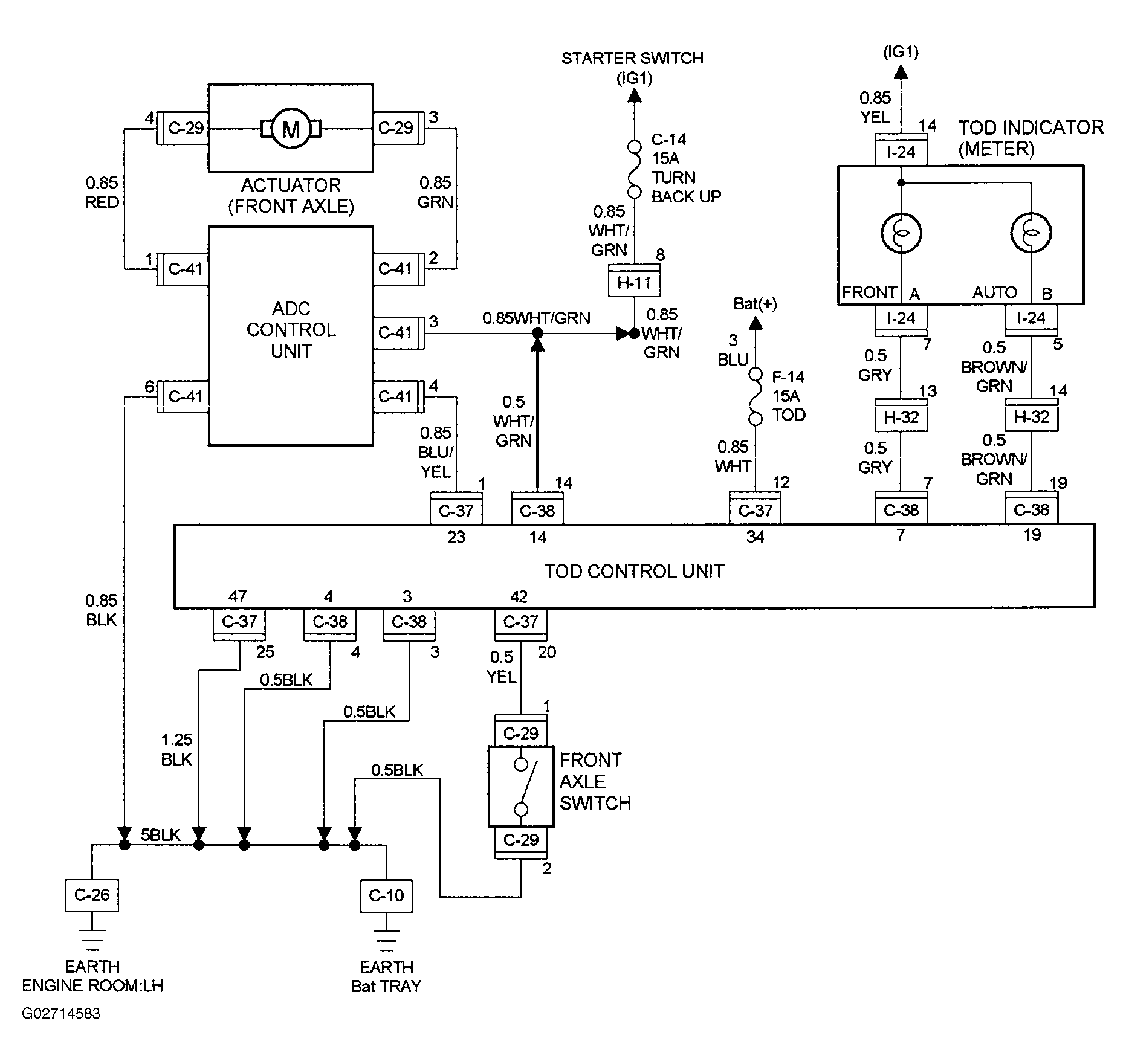

- The on/off signal line of the shift on the fly system is short-circuited to GND.
- The system enters into the fail-safe mode because of fusing or system protection.
(If a short-circuit is observed on GND, the output to the on/off signal line becomes 0V.)
