Mechanical Lock Sleeve

Couples the front and rear propeller shaft mechanically when the transfer shaft is in the 4L position.

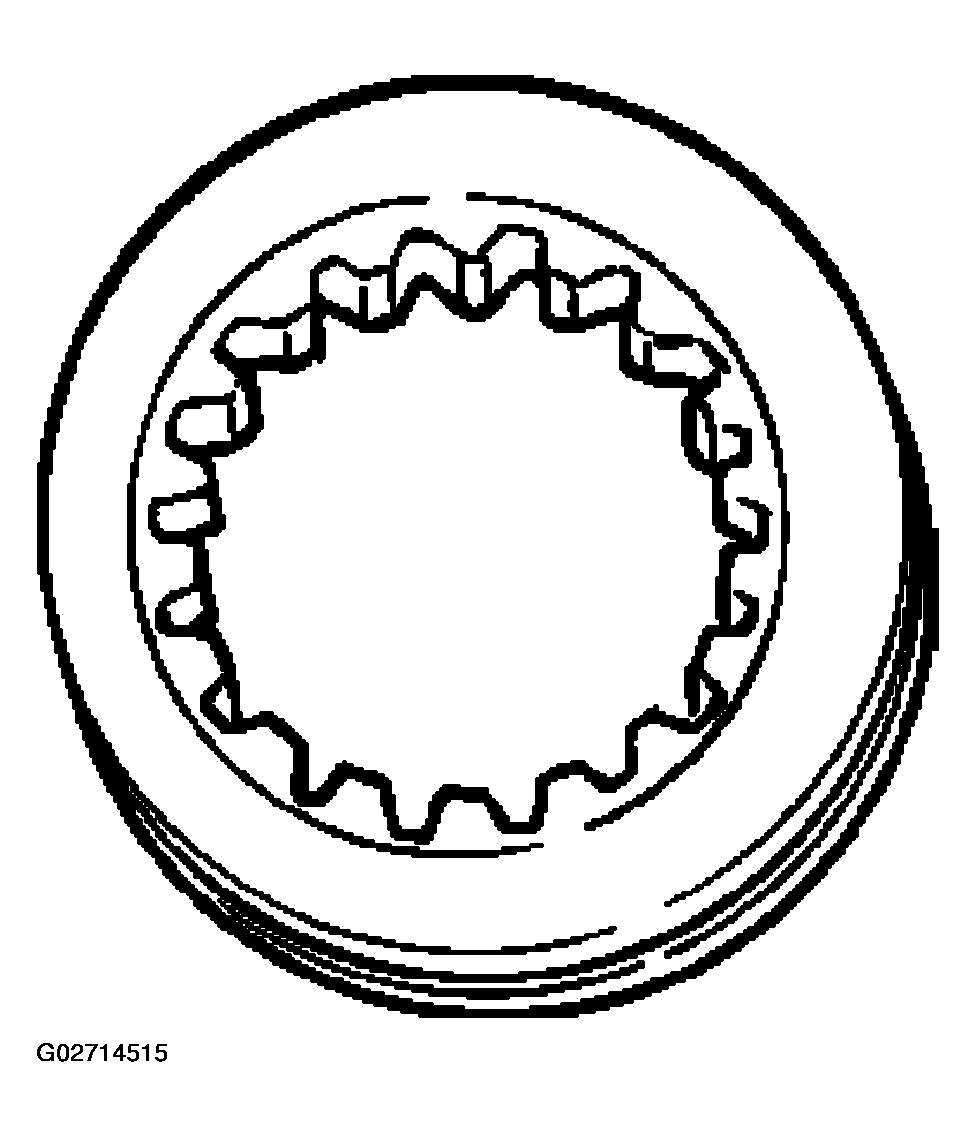

Fig 1: Identifying Mechanical Lock Sleeve
G02714515Courtesy of ISUZU MOTOR CO.
