Motor Position and Encoder Position Code

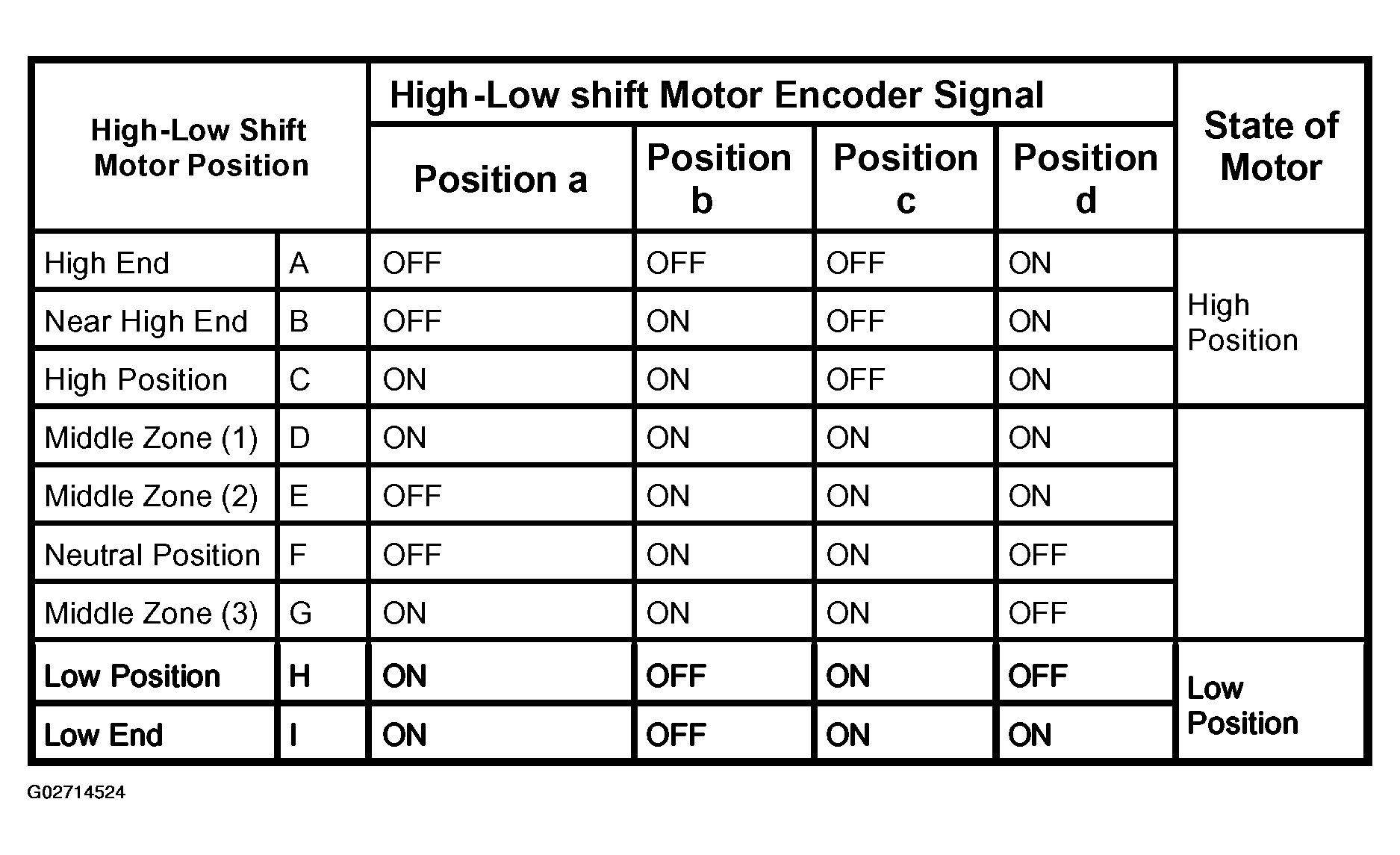

Fig 1: High-Low Shift Motor Position & Encoder Position Code Chart
G02714524Courtesy of ISUZU MOTOR CO.
