Trouble Diagnosis Depending On The Status Of Tod Indicator: Notes

Functional check with TOD indicator light is conducted prior to check on Charts A-H.

• After the starter is switched on, check and see if the status has become as tabulated below.

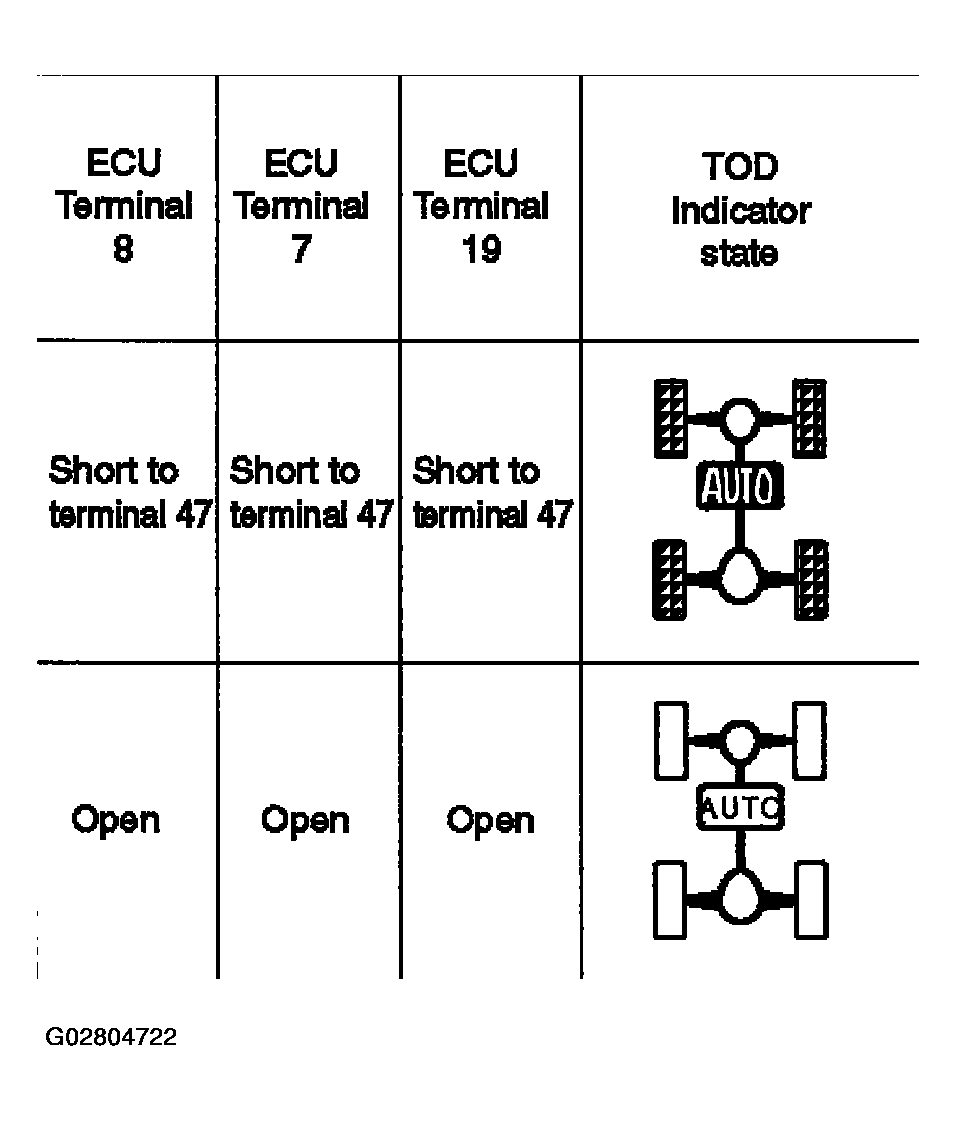

  Fig 1: Checking Status Of TOD Indicator Terminals

  Courtesy of ISUZU MOTOR CO.
• If the status is as tabulated above, there is no problem. If not as tabulated above, inspect the harness.
