Keyless Entry Module: Service and Repair

Anti-Theft & Keyless Entry Controller

Removal

1. Disconnect the battery ground cable.

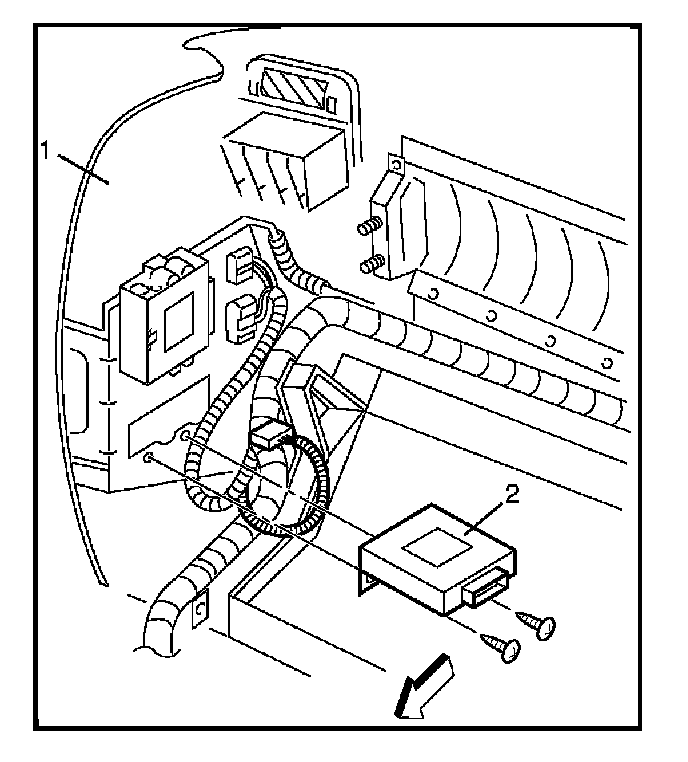

2. Remove the glove box from the instrument panel assembly (1).
- Refer to the Instrument Panel Assembly in Body Structure.

3. Remove the anti-theft & keyless entry controller (2).
- Disconnect the connector.
- Remove two fixing screws.

Installation

To install, follow the removal steps in the reverse order.

Anti-theft & Keyless Entry Control Unit Replacement

1. Remove and install the control unit.
- Refer to Anti-theft & Keyless Entry Control Unit Removal and Installation.

2. Register ID code.
- Refer to ID Code Registration

3. Check that the keyless entry system works normally.
