Cruise Control Main Switch

Removal
1. Disconnect the battery ground cable.

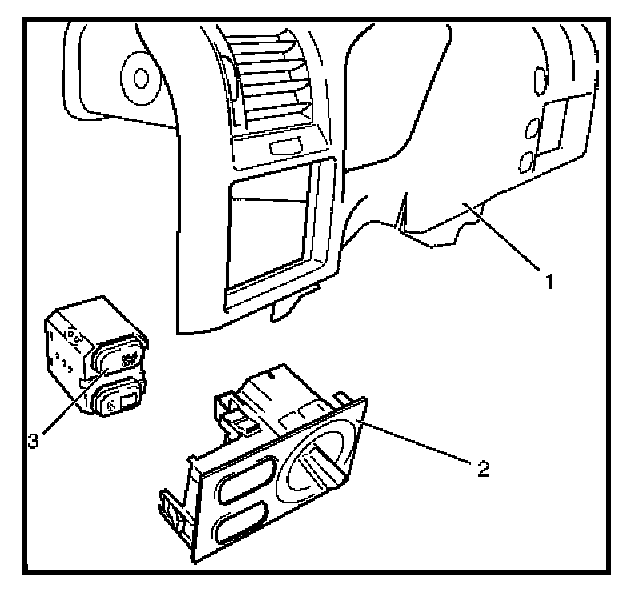

2. Remove the meter cluster assembly (1).
- Refer to the Instrument Panel Assembly in Body Structure section.

3. Remove the cruise control main switch (3).
- Disconnect the switch connector.
- To remove the cruise main switch, illumination controller and transfer switch assembly (2), push the lock from the back side of the meter cluster assembly.
- Remove the cruise main switch from the back side of the switch assembly (2).

Installation
To install, follow the removal steps in the reverse order.
