Cruise Control Switch (Steering Wheel)

Removal

1. Disconnect the battery ground cable.
2. Remove the inflator module.
- Refer to Inflator Module in Steering Structure section.

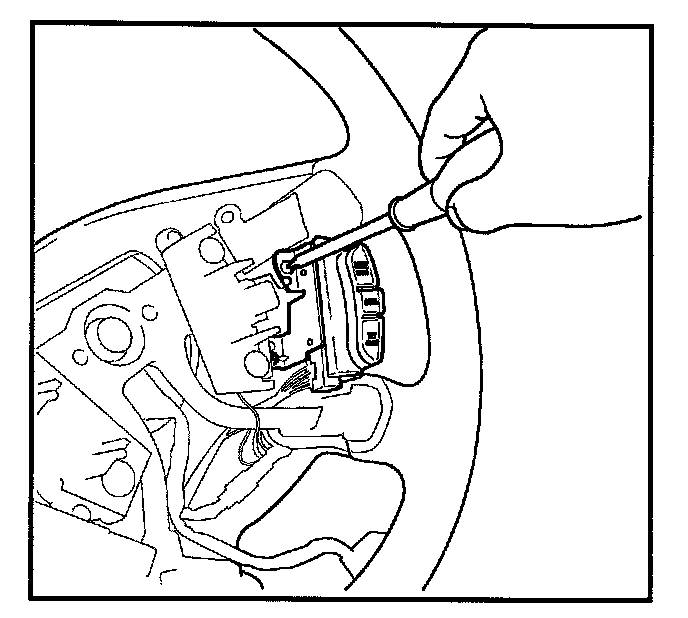

3. Remove the cruise control switch.
- Remove the two screws.
- Disconnect the cruise control switch connector.

Installation
To install, follow the removal steps in the reverse order.
