Engine Controls

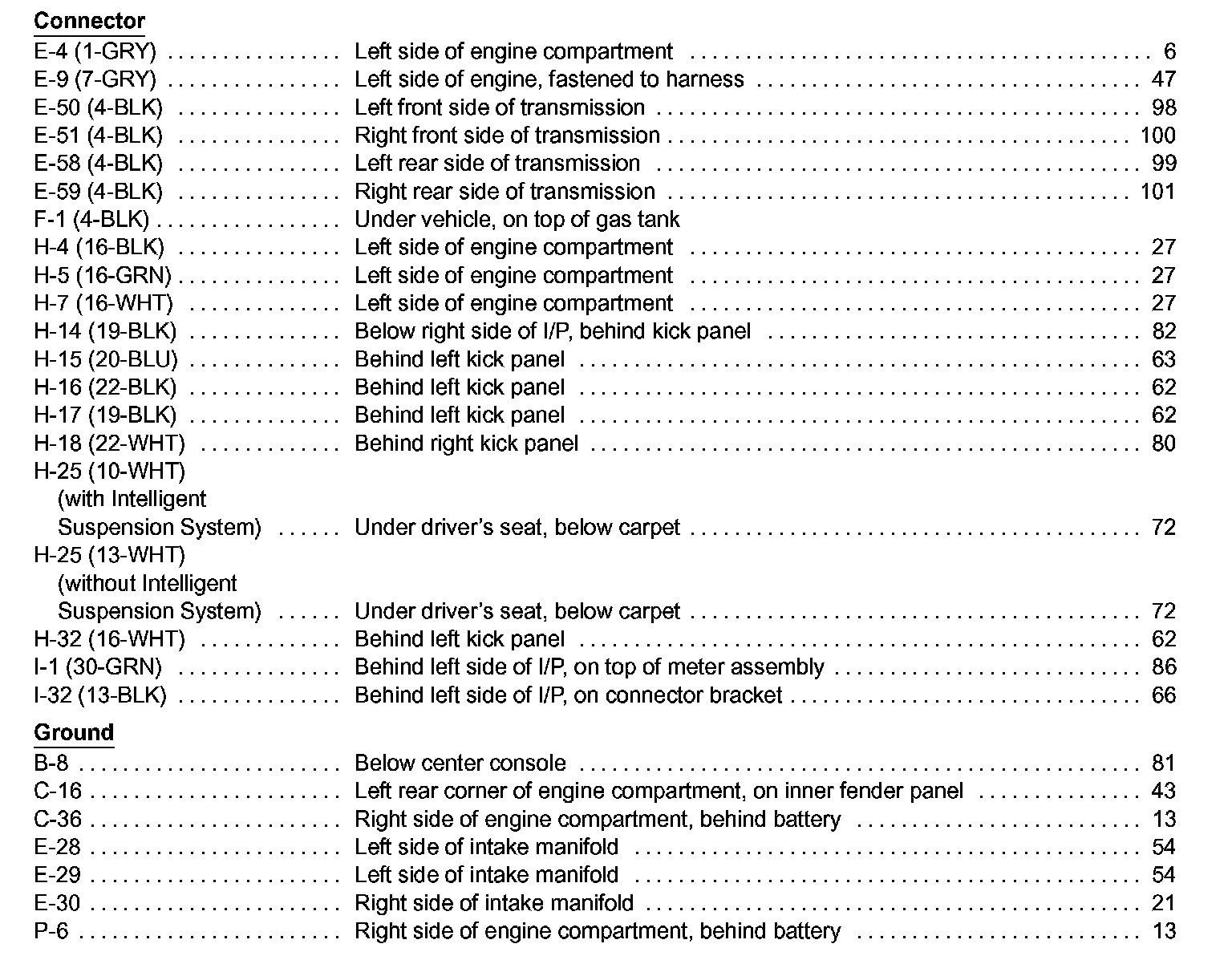

Engine Controls Index Image 23-9:

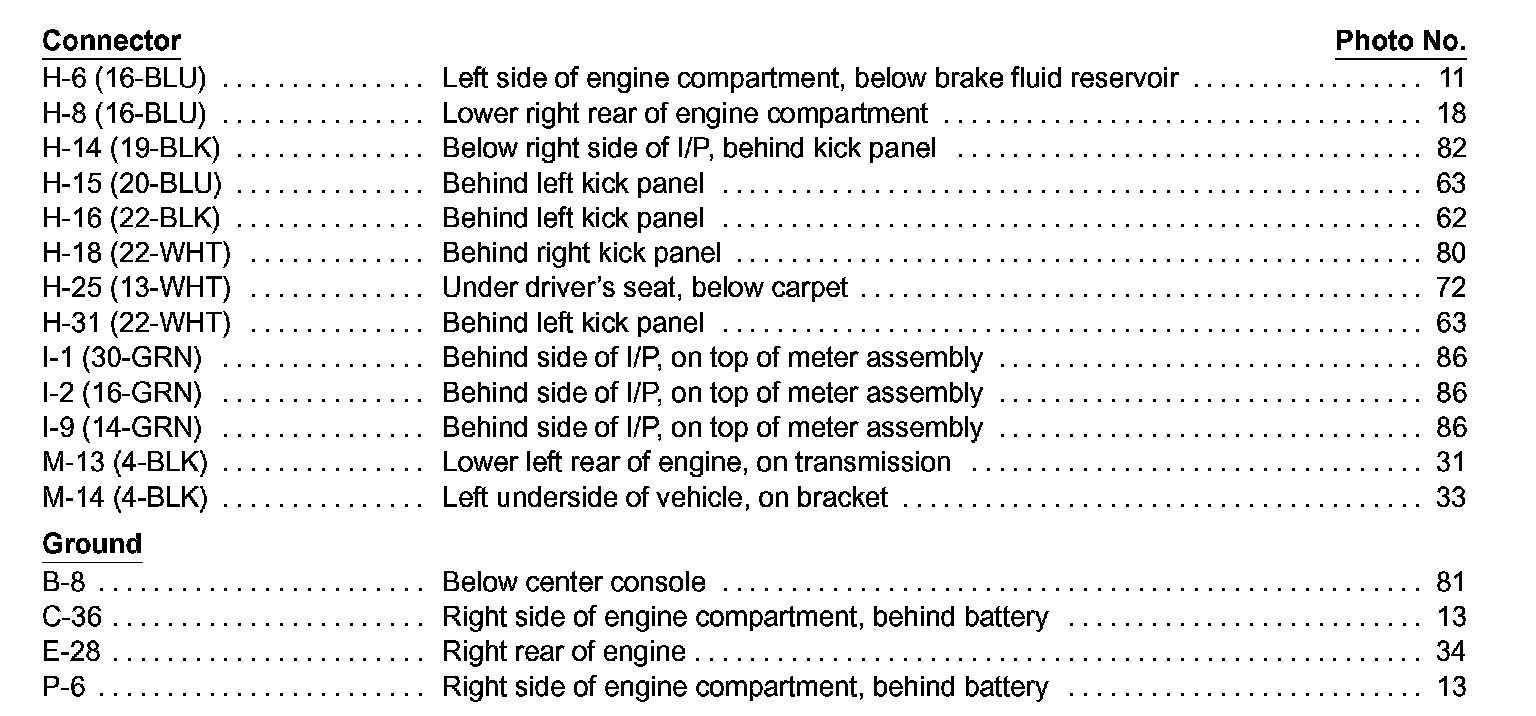

Engine Controls Index Image 23-10:

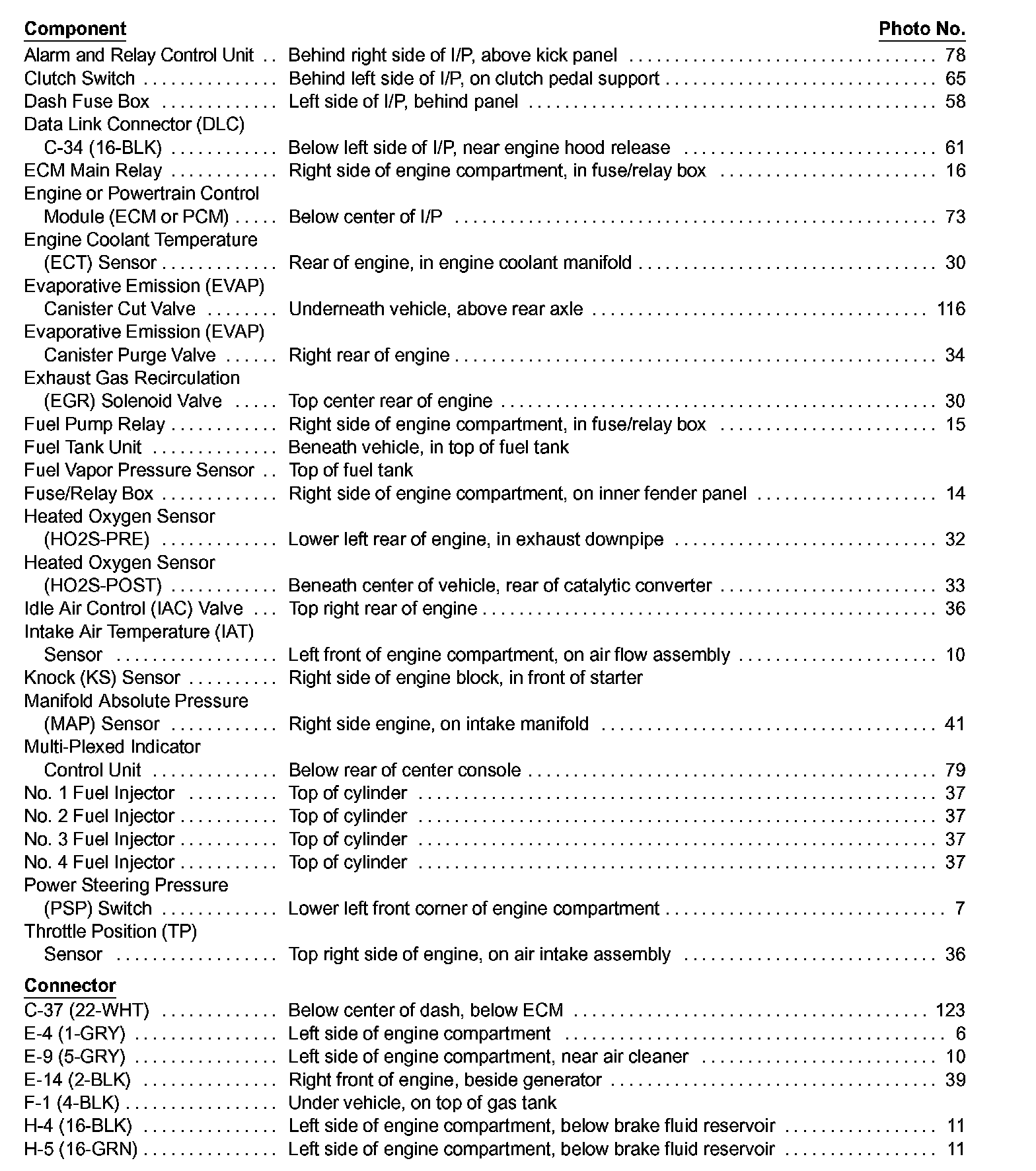

Engine Controls Index Image 24-9:

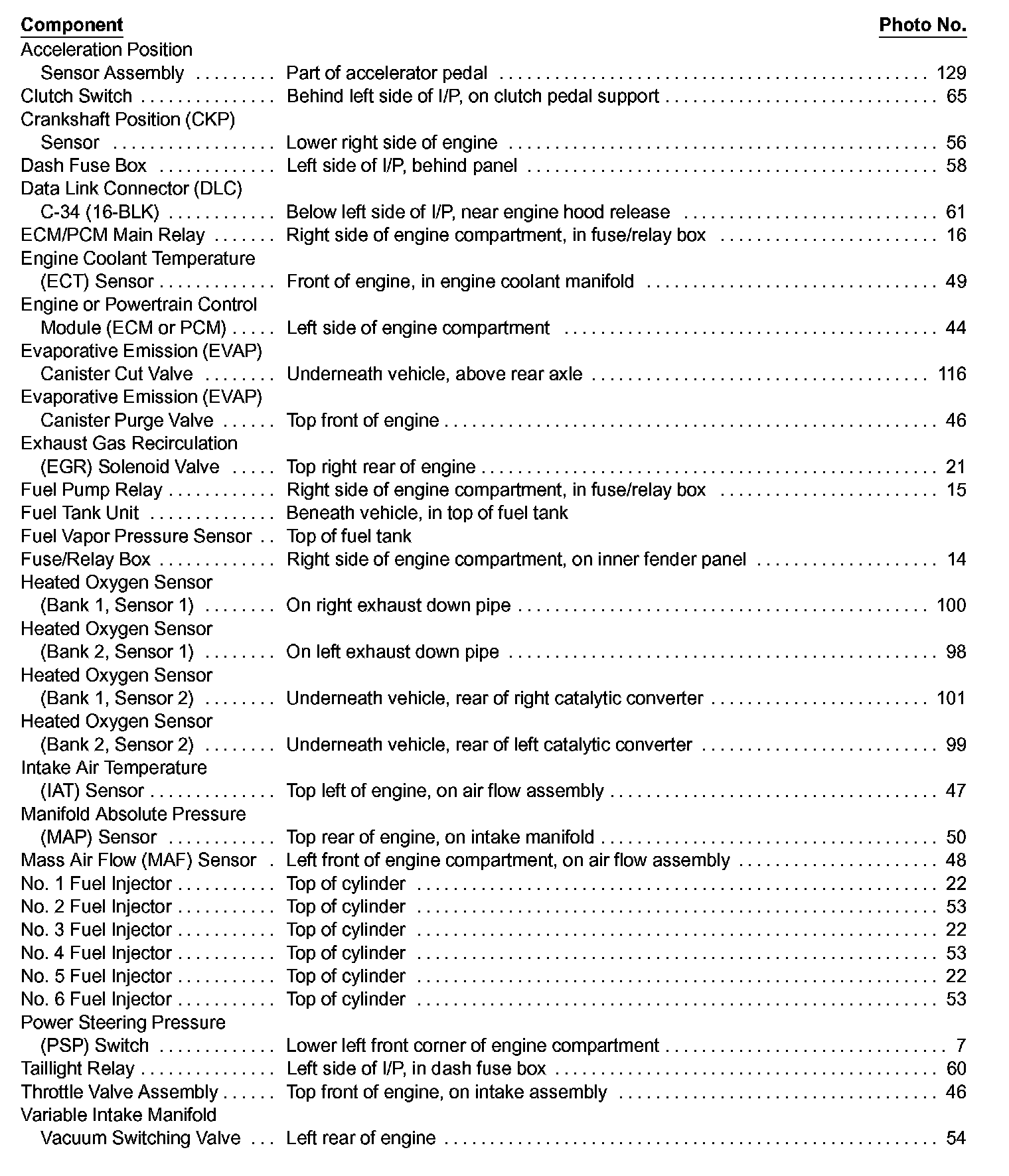

Engine Controls Index Image 24-10:
