Grounds

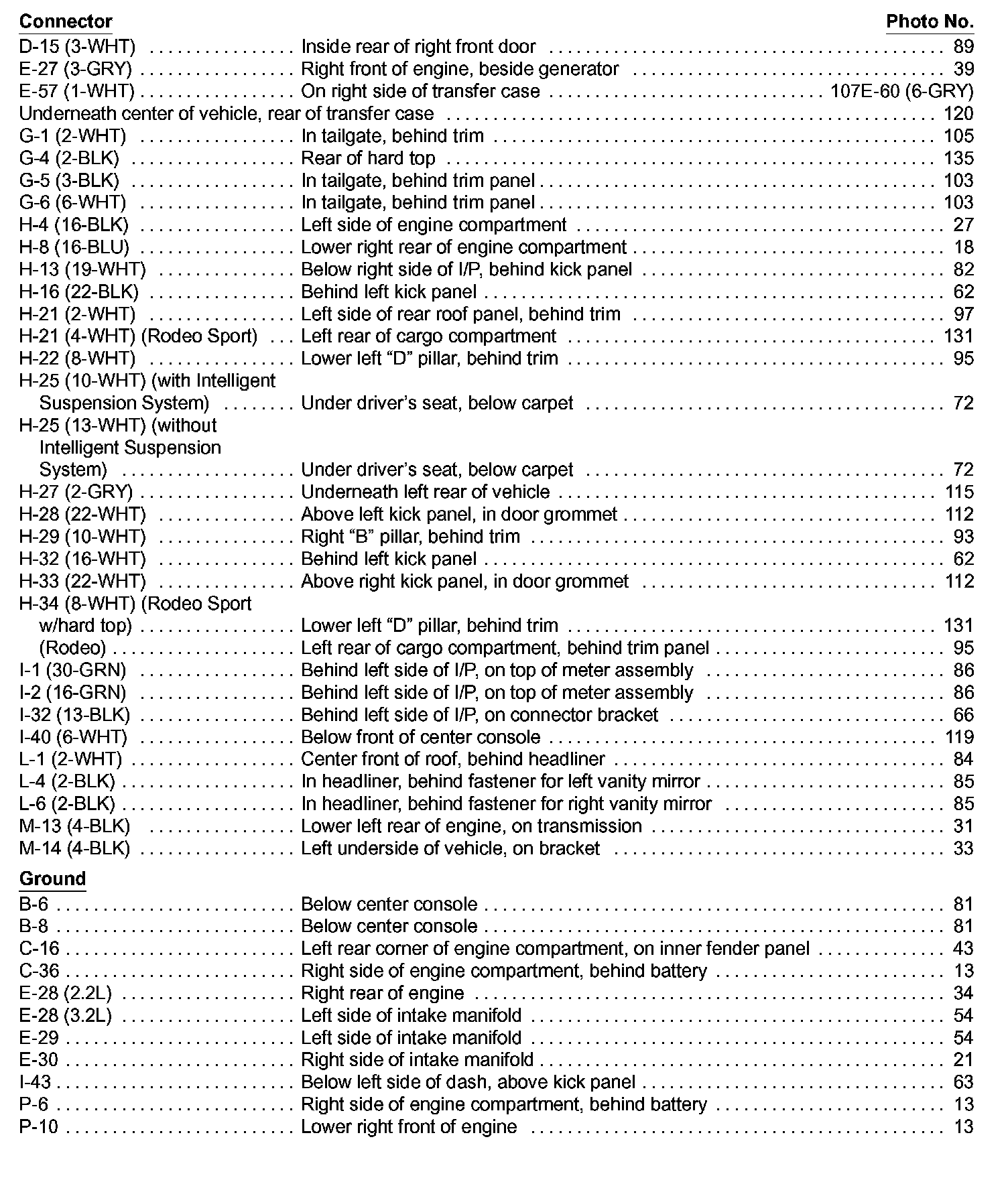

Ground Distribution Index Image 14-9:

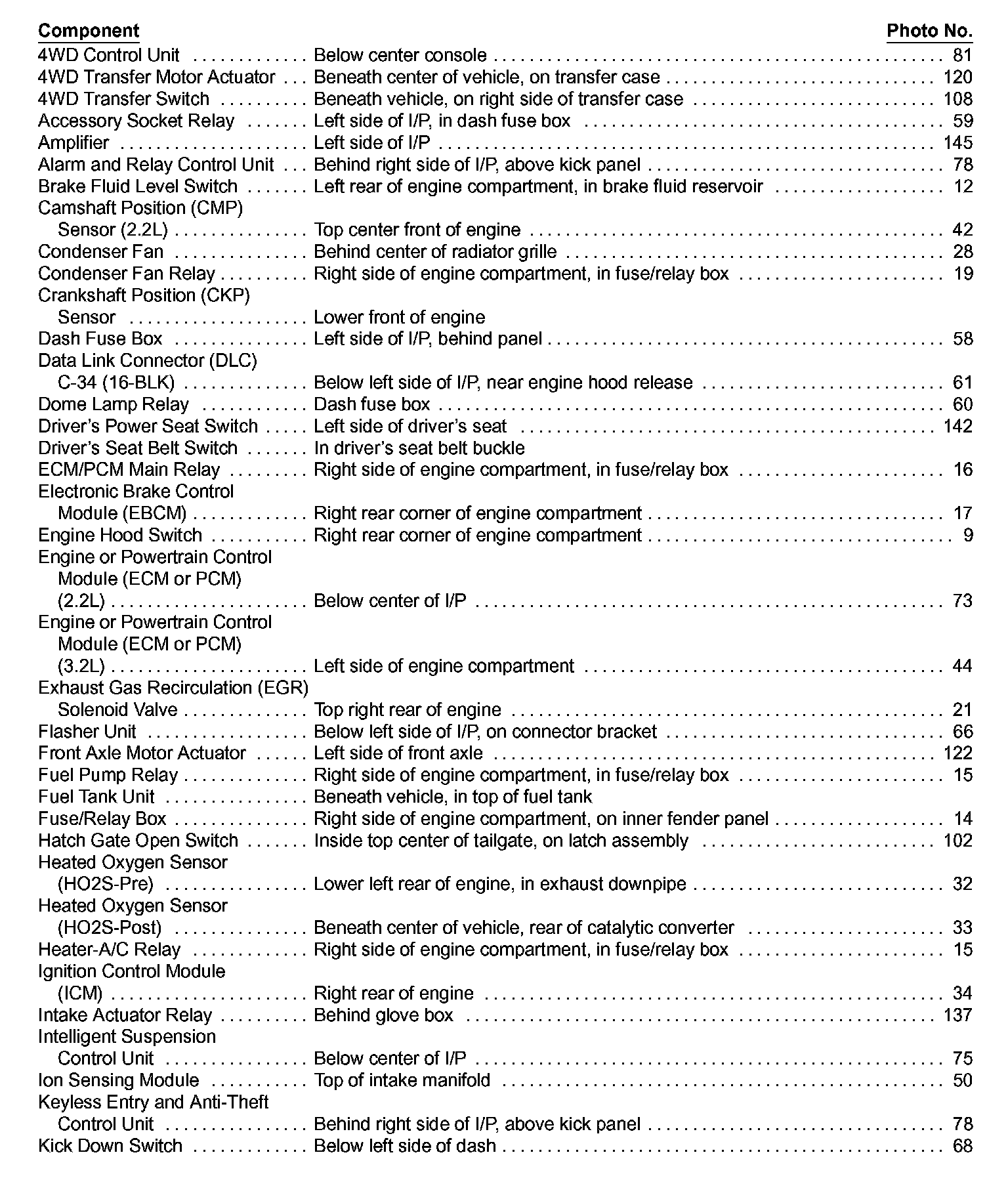

Ground Distribution Index Image 14-10:

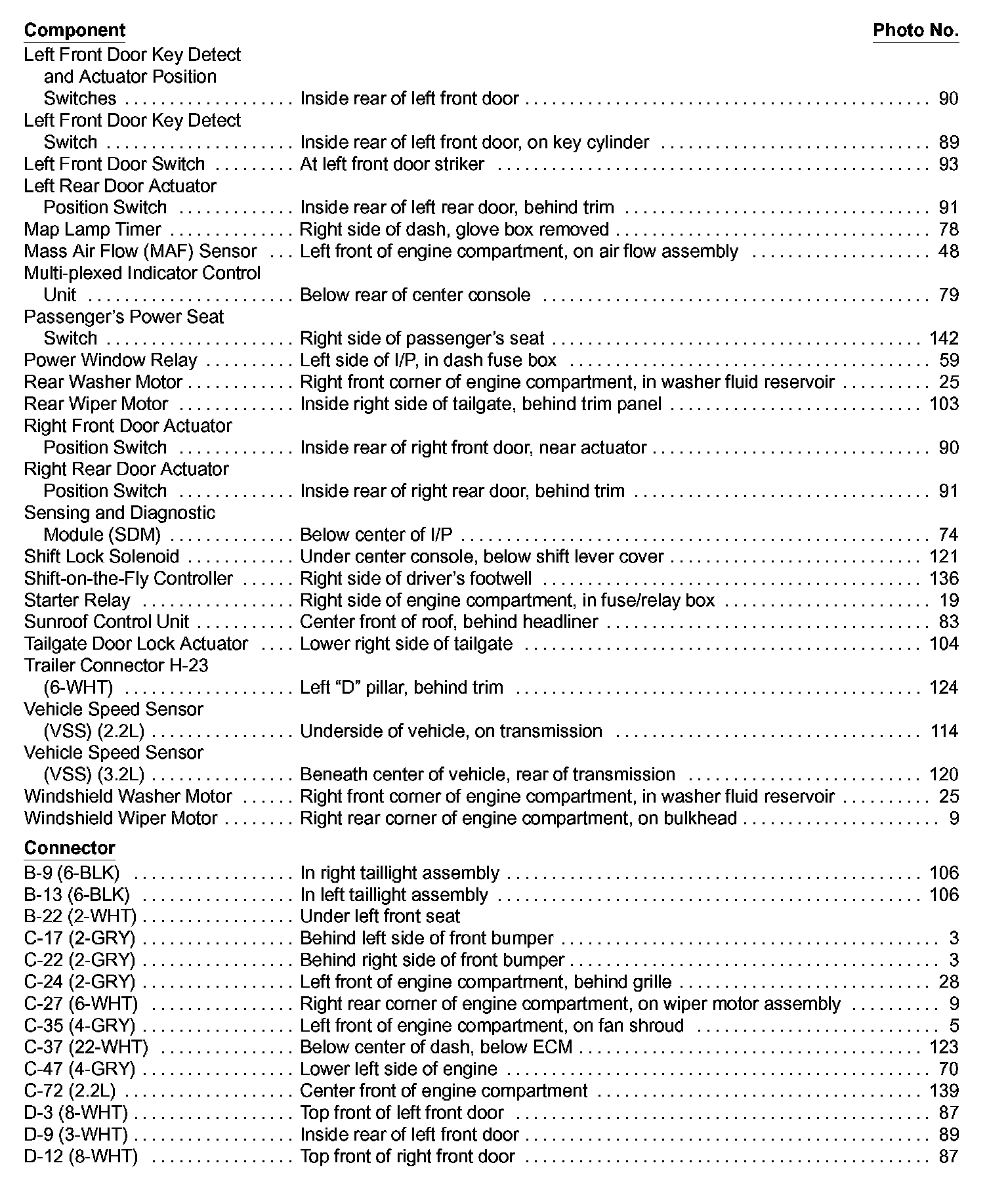

Ground Distribution Index Image 14-11:
