Lighting

Lighting Switch Details Index Image 12-2:

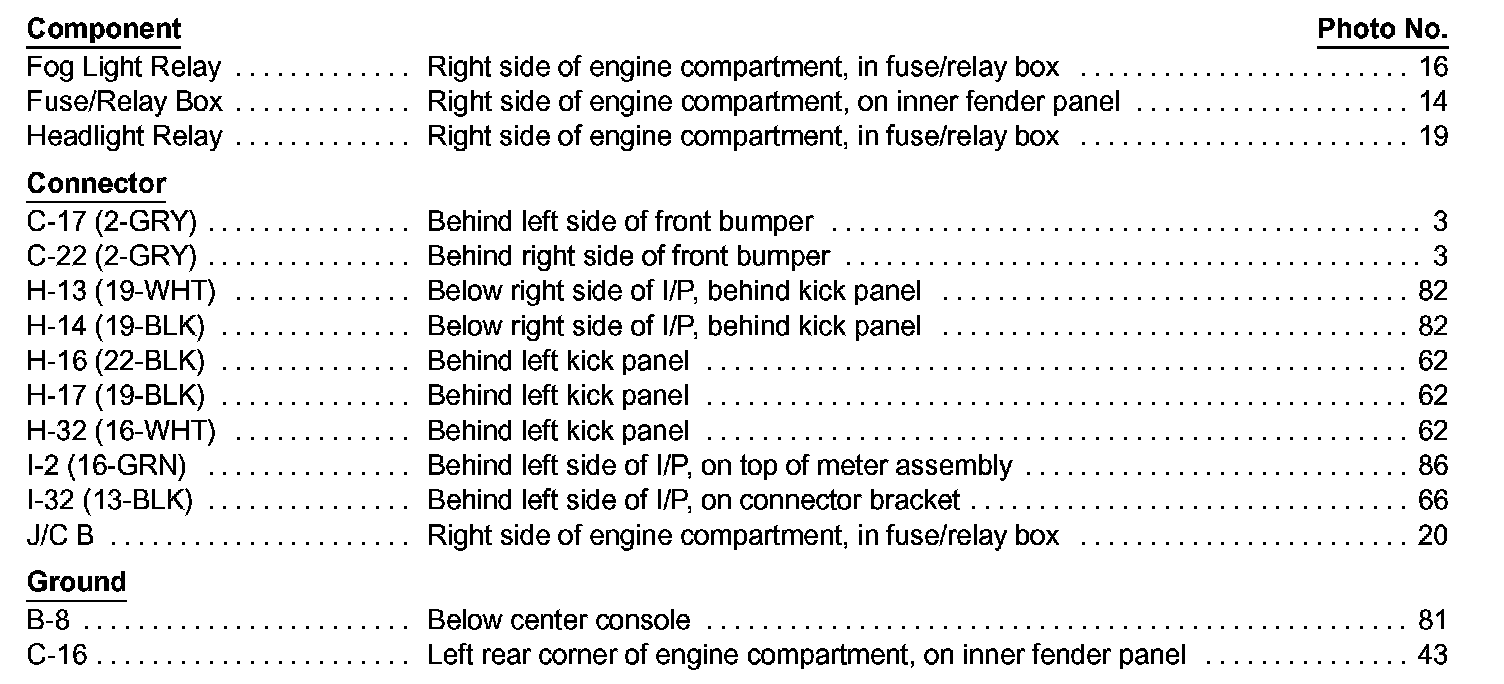

Headlights And Fog Lights Index Image 100-2:

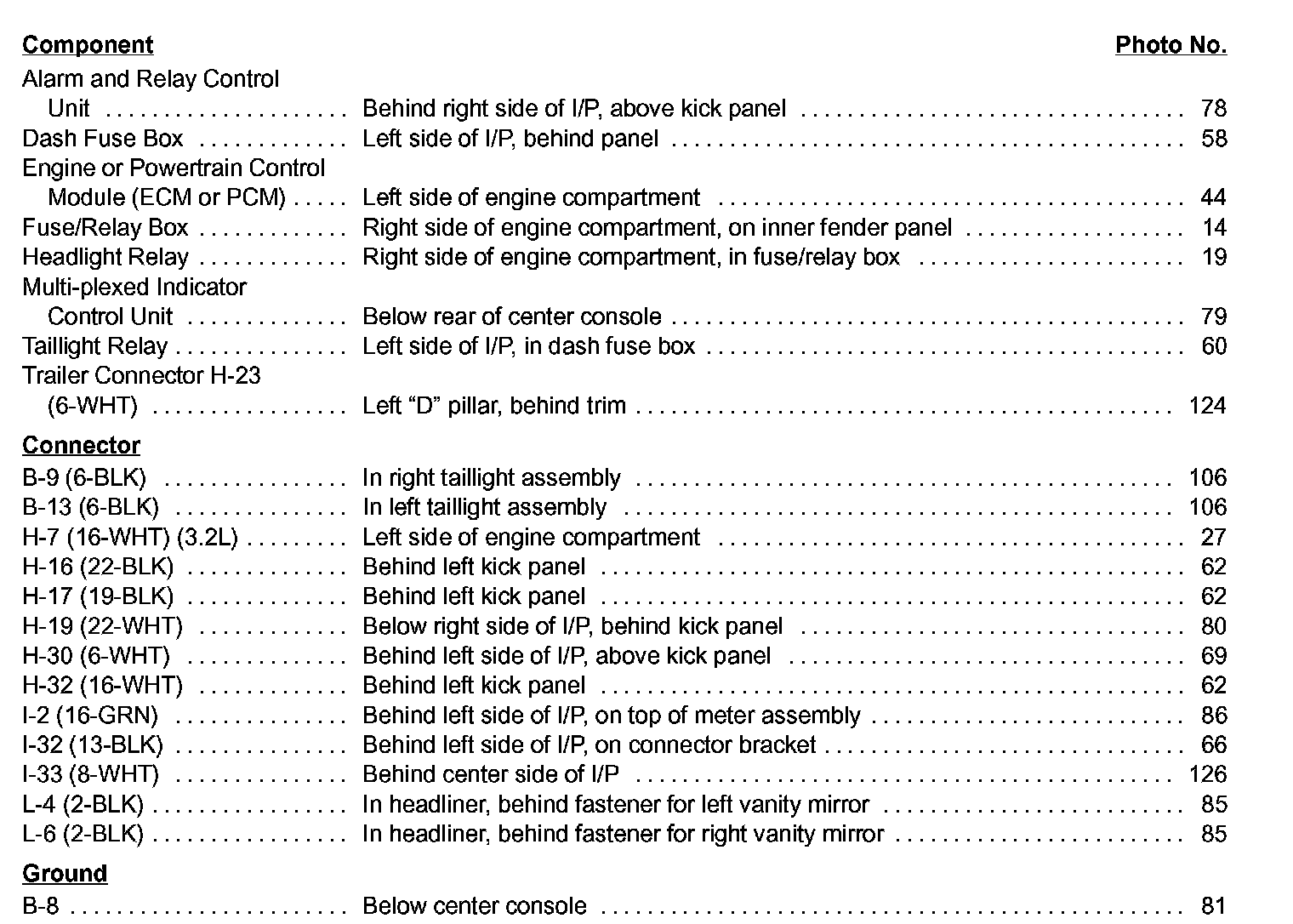

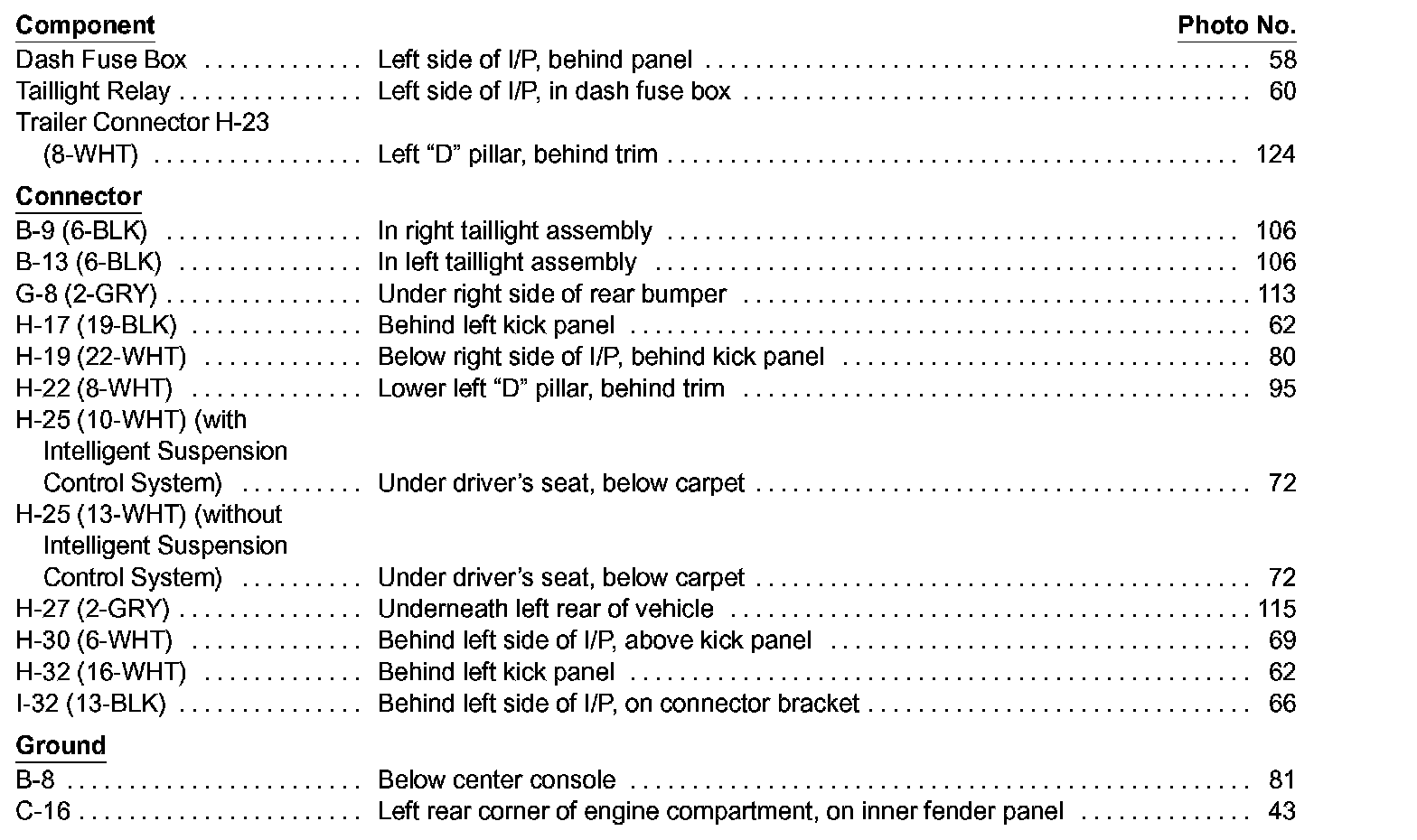

Park, Tail, And License Lights Index Image 110-3:

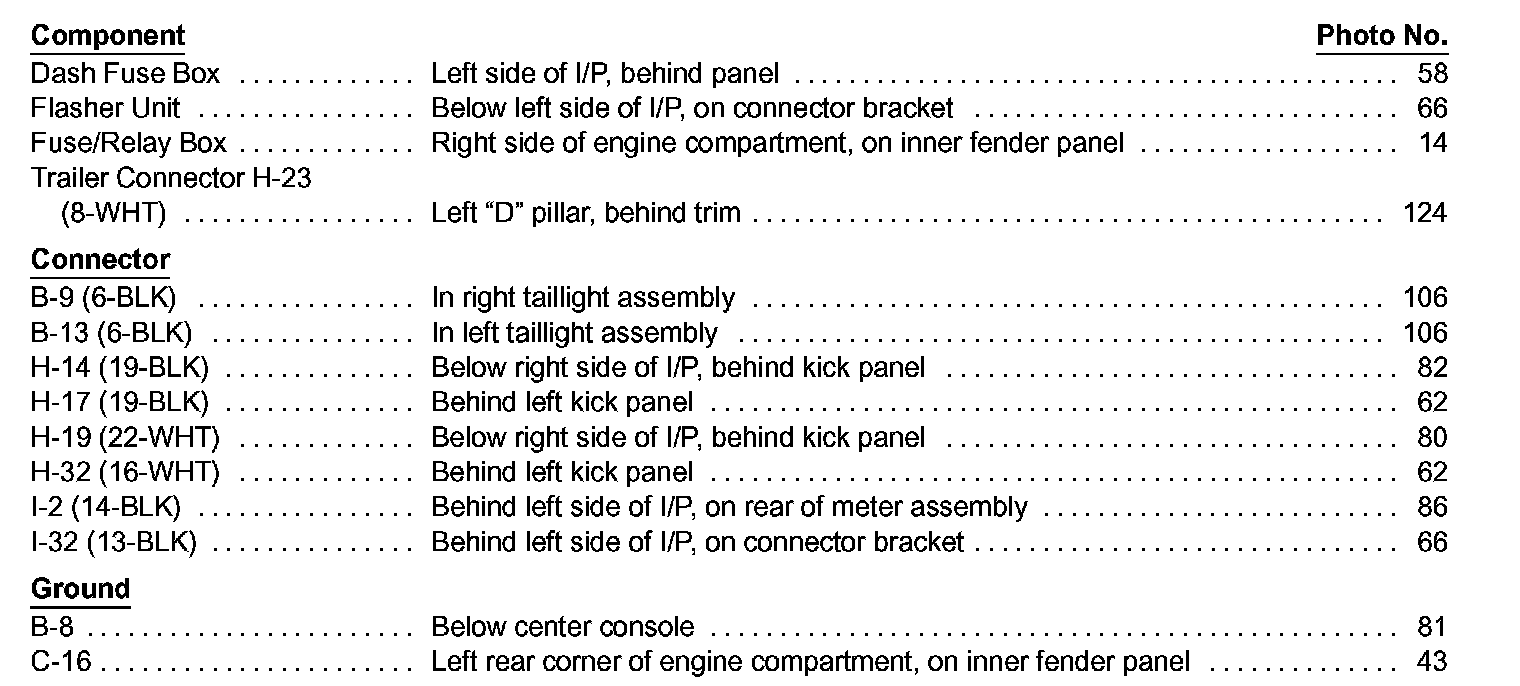

Turn And Hazard Lights Index Image 110-6:

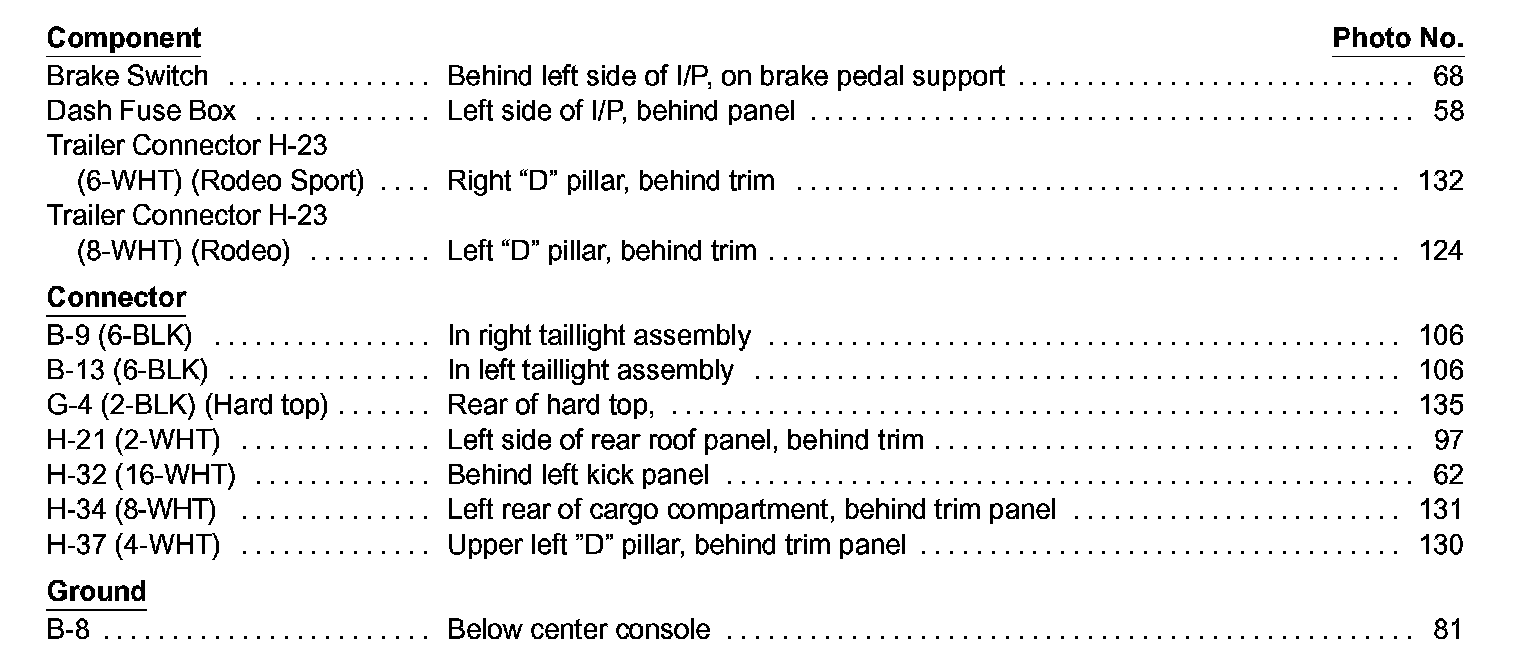

Break Lights Index Image 110-10:

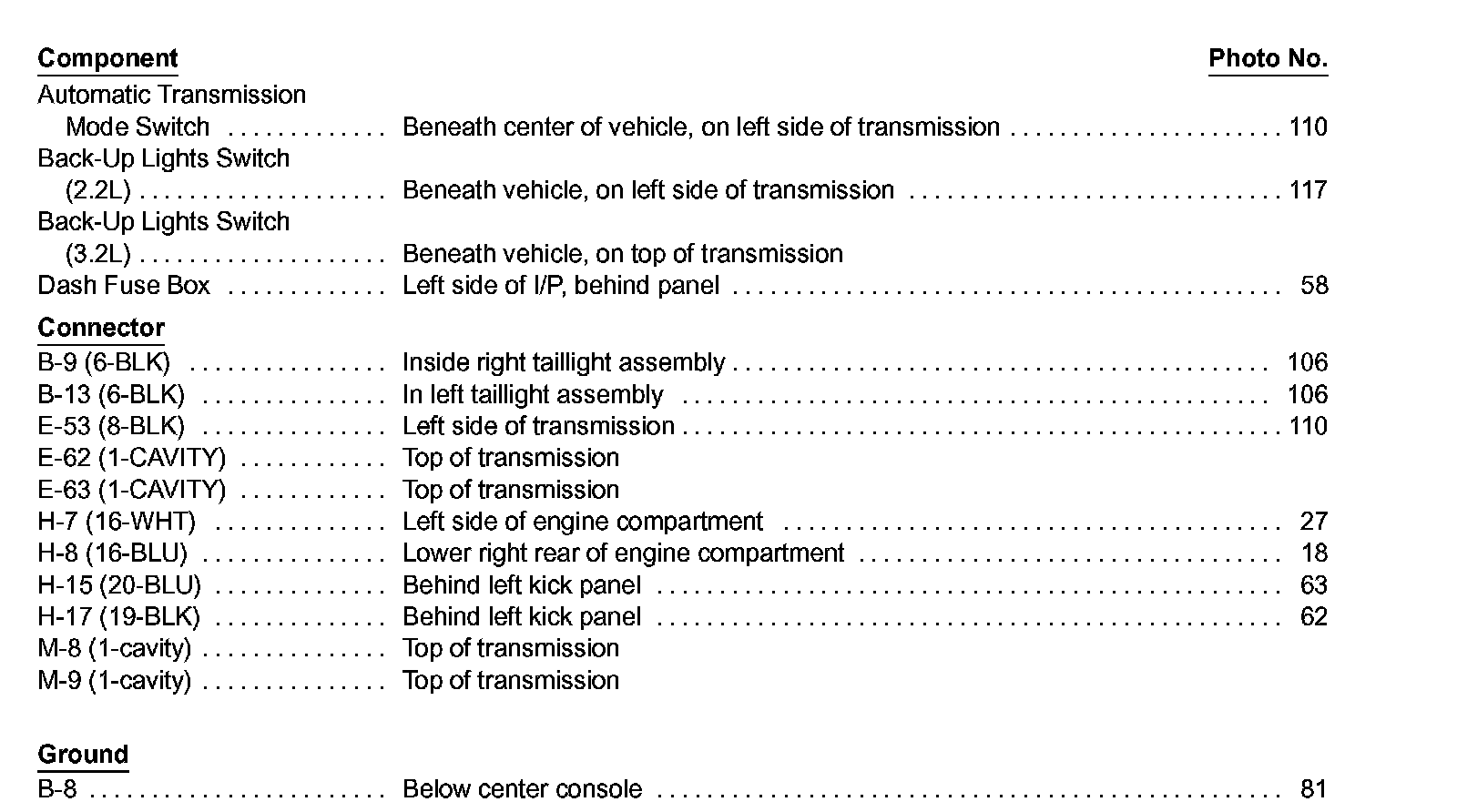

Back Up Lights - Automatic Transmission Index Image 112-3:

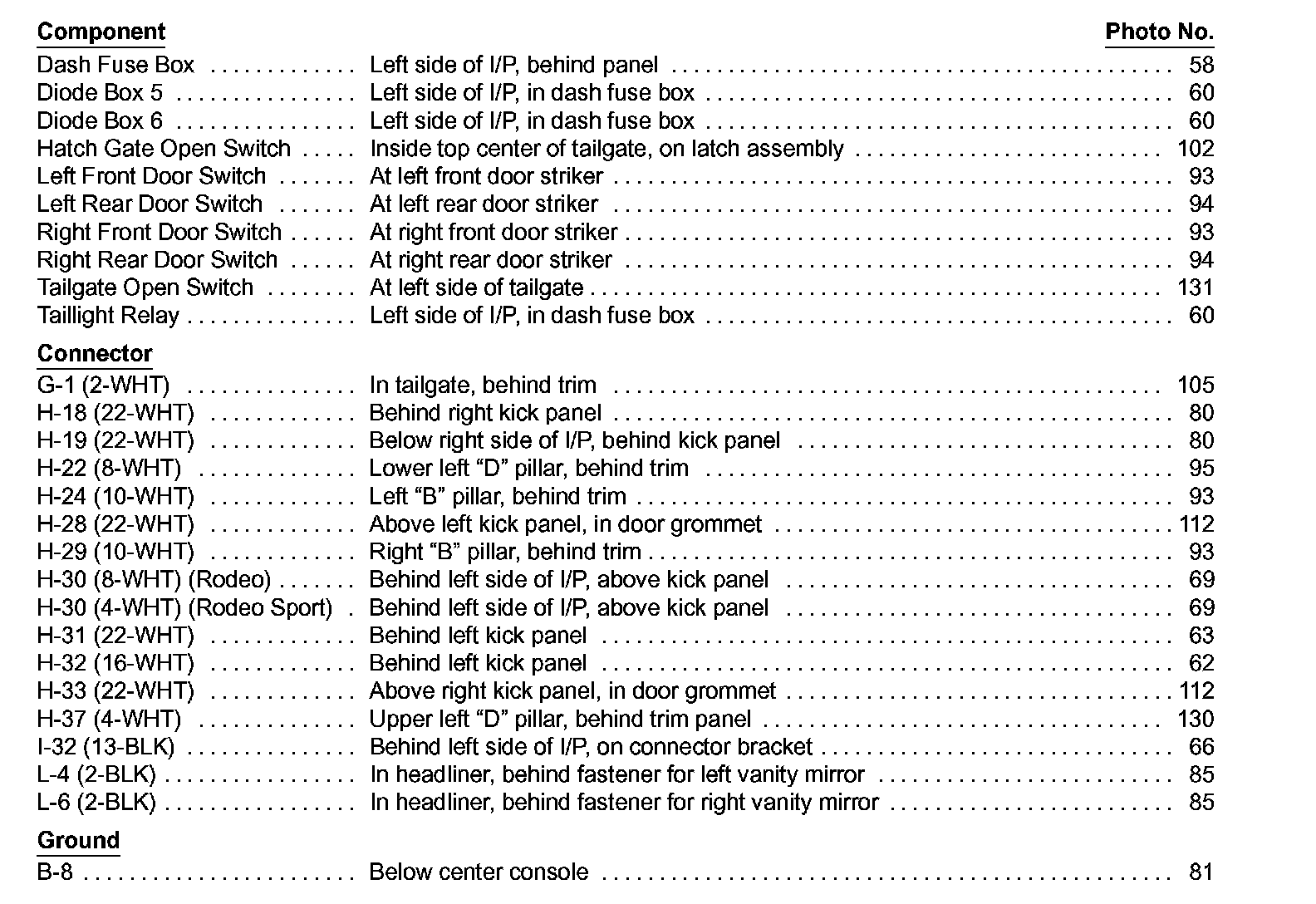

Dome, Luggage Room, Courtesy, Map, Vanity Lights Index Image 114-5:

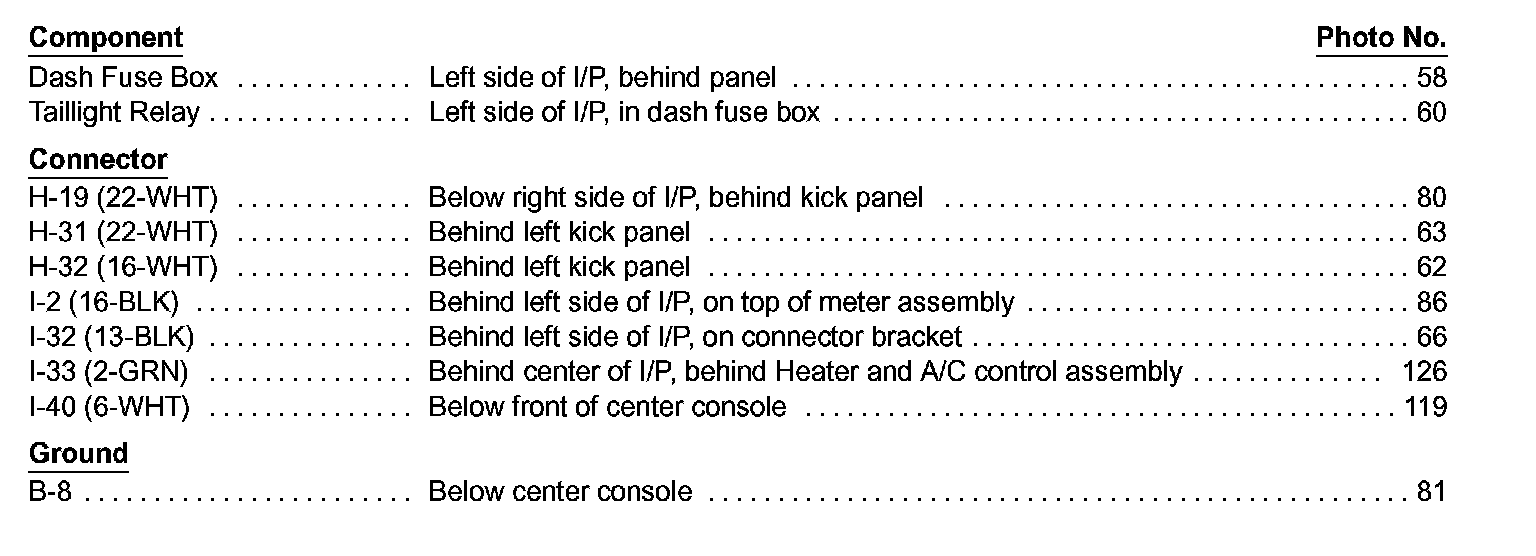

Dash And Console Lights Index Image 117-2:
