Ground Distribution

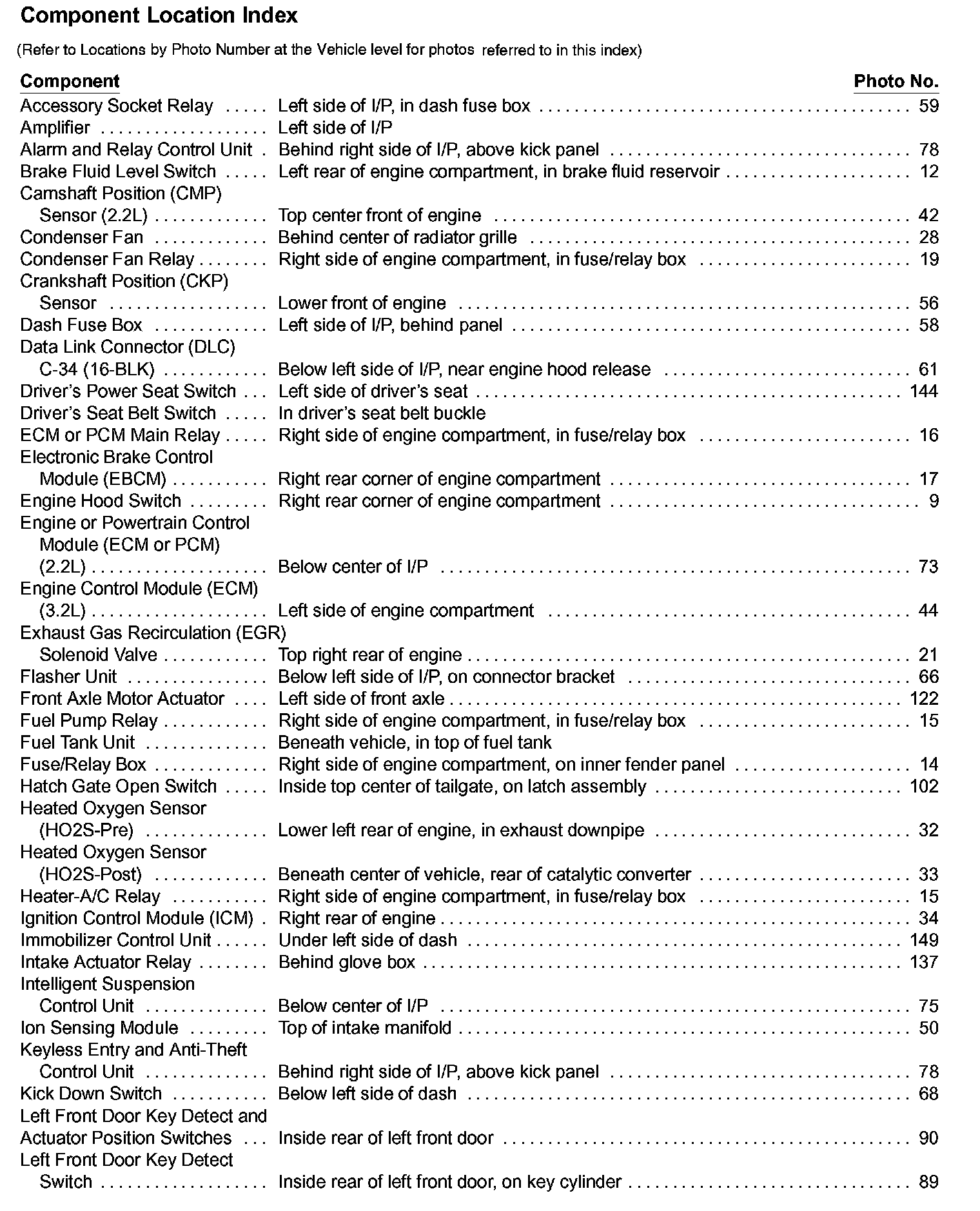

Ground Distribution Part 1:

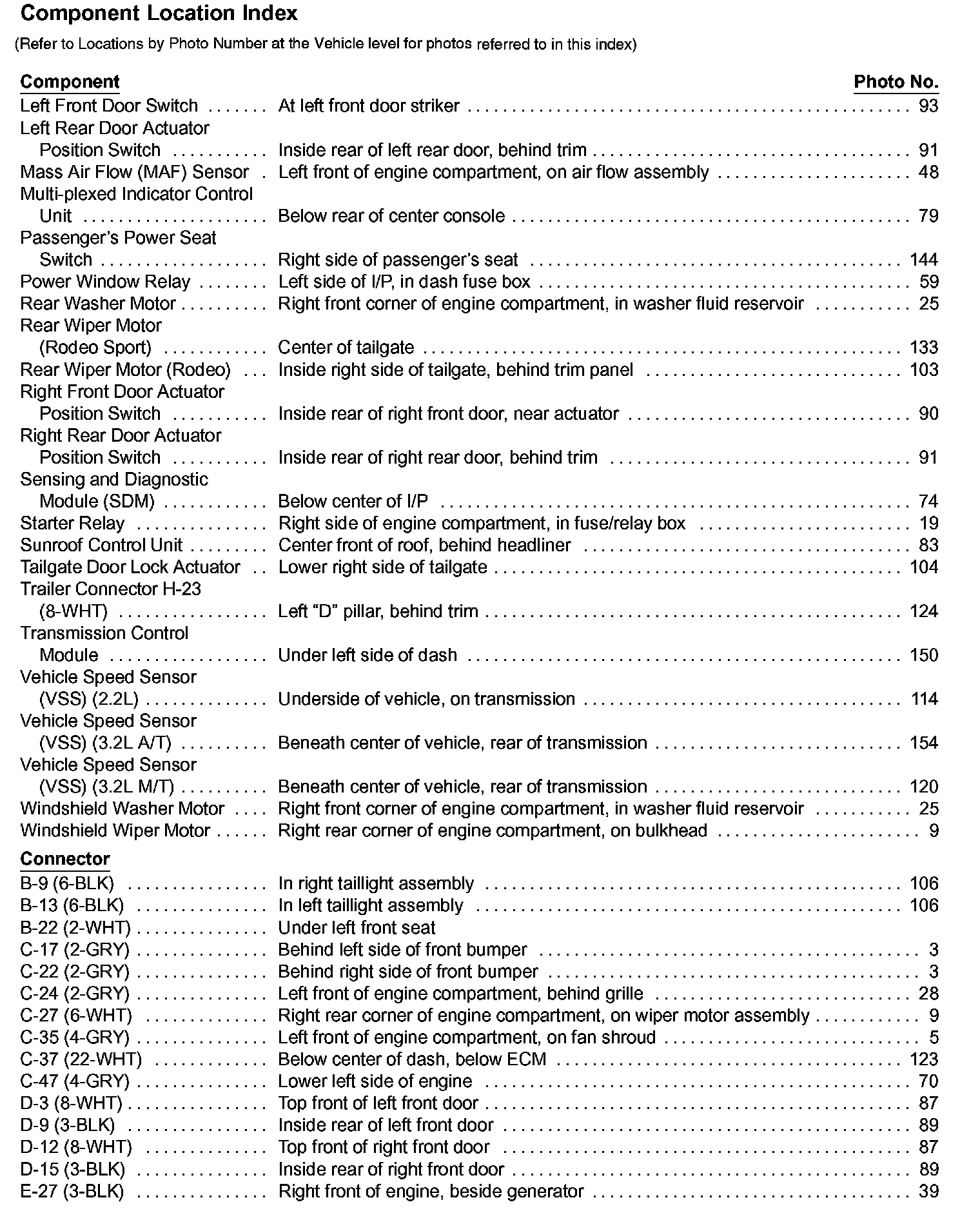

Ground Distribution Part 2:

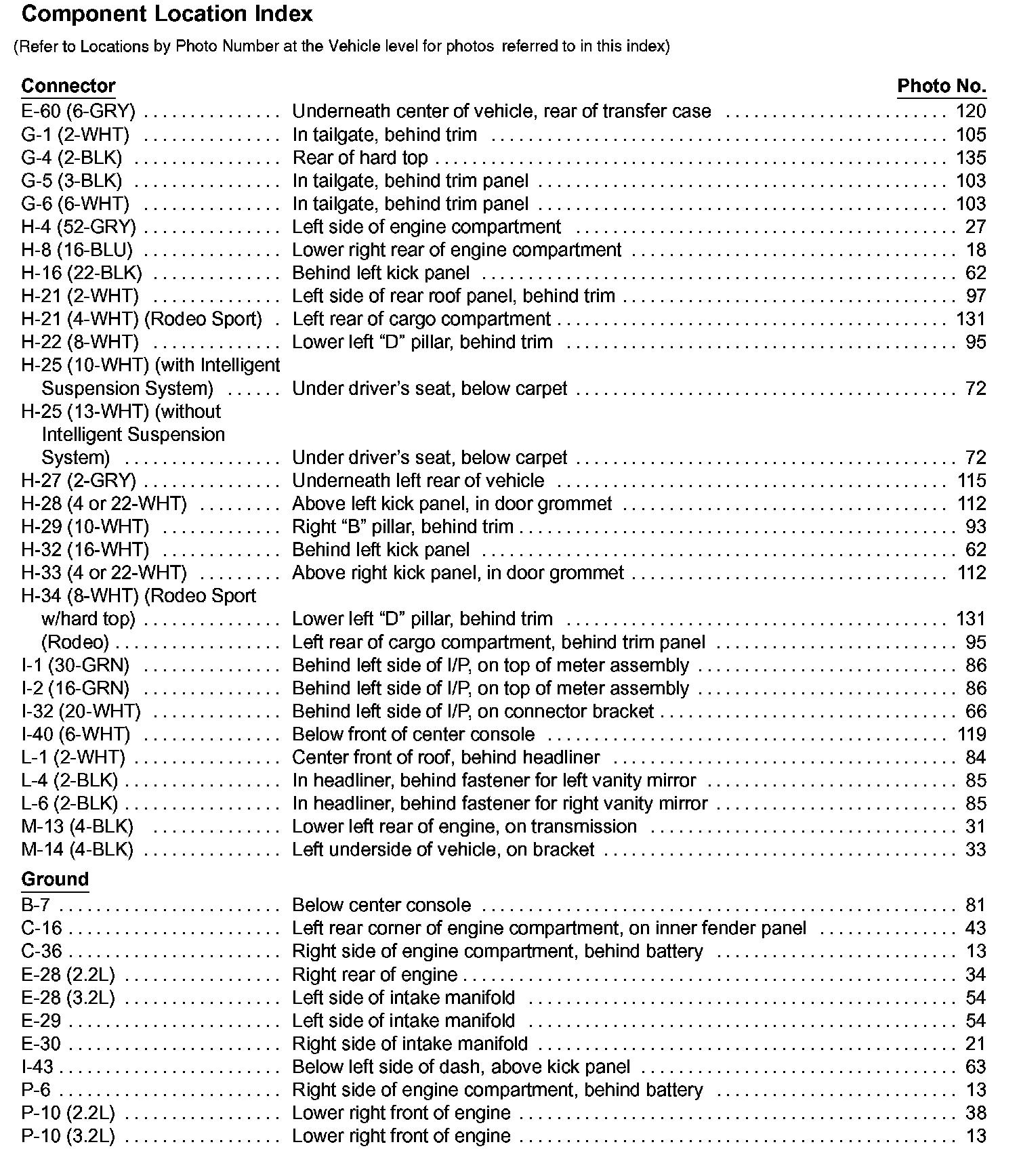

Ground Distribution Part 3:
