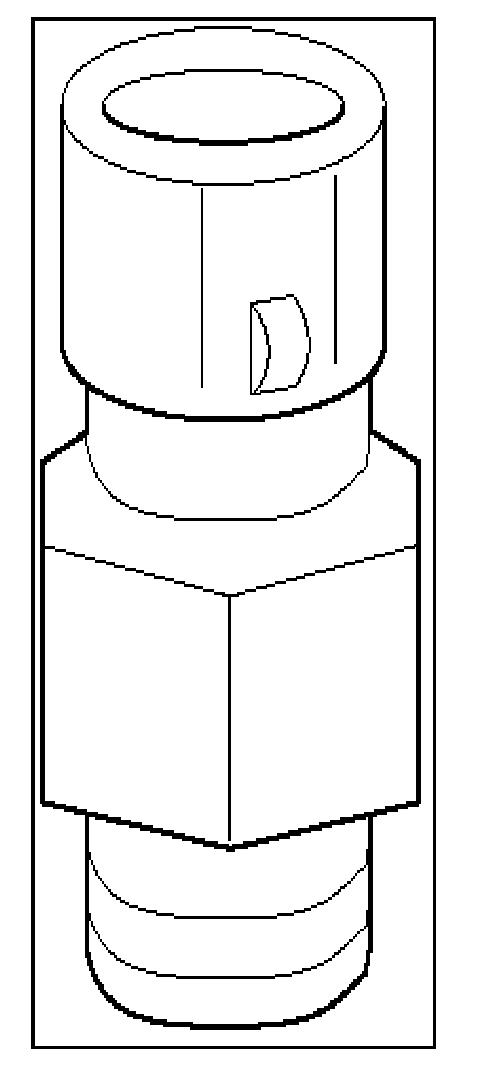

Engine Temperature Sensor: Service and Repair

REMOVAL PROCEDURE
1. Disconnect the negative battery cable.
2. Drain enough engine coolant so that the coolant level will be below the ECT sensor.

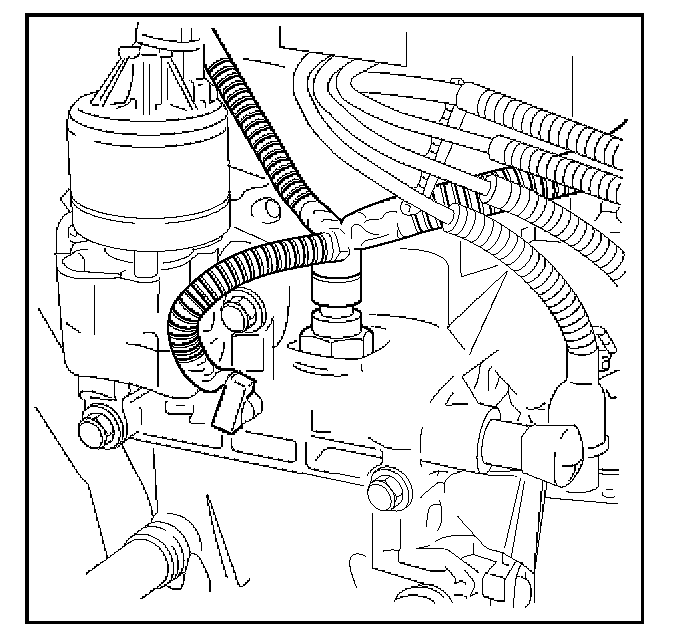

3. Remove electrical connector from the sensor located on the intake manifold above the ignition coil.




4. Unscrew the sensor from the manifold.

INSTALLATION PROCEDURE
1. Install the sensor into the intake manifold. Do not over tighten.
2. Connect electrical connector.
3. Add engine coolant to required level. Refer to Engine Cooling Section.




4. Connect the negative battery cable.
