Manifold Pressure/Vacuum Sensor: Service and Repair

REMOVAL PROCEDURE
1. Disconnect the negative battery cable.

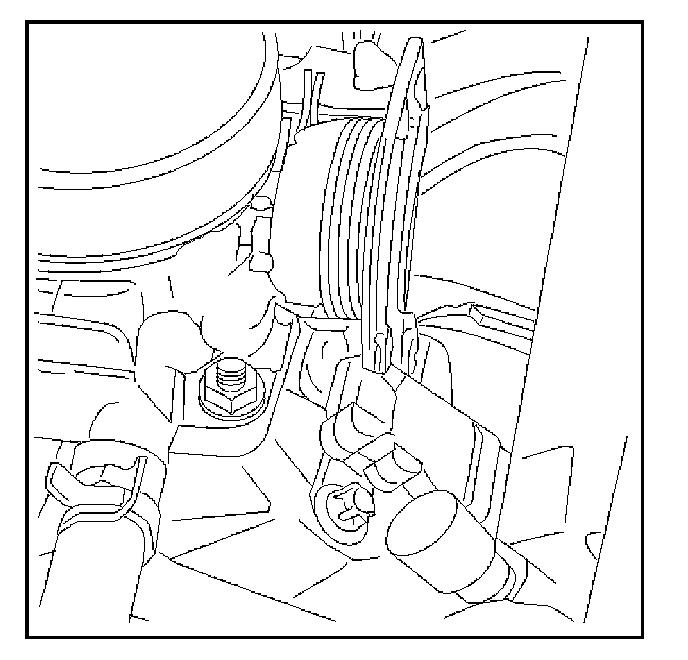

2. Disconnect the electrical connector from the sensor. (The MAP sensor is located on the intake manifold behind throttle body.)

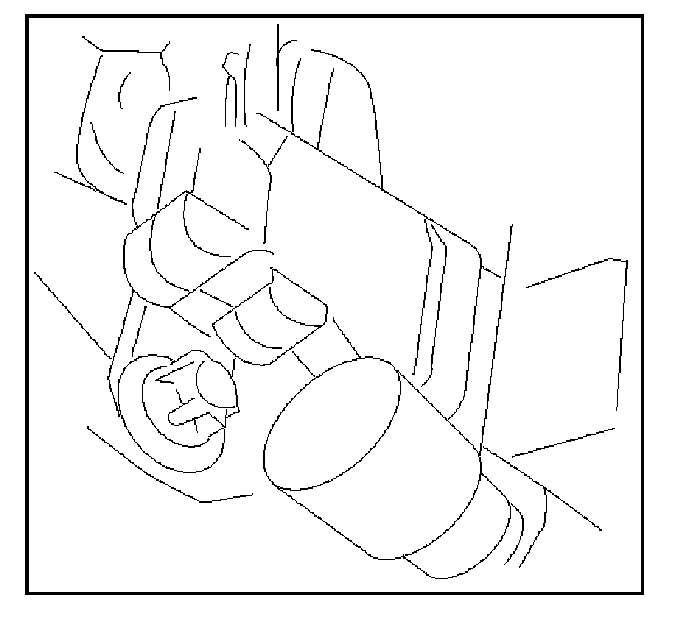

3. Remove a mounting bolt securing the sensor to the manifold.




4. Remove the sensor from the intake manifold using rocking motion while pulling the sensor.

INSTALLATION PROCEDURE
1. Push MAP sensor into the manifold. Make sure the sensor is pushed always into its position.
2. Install a mounting bolts and tighten.
3. Connect electrical connector.




4. Connect the negative battery cable.
