Throttle Position Sensor: Service and Repair

REMOVAL PROCEDURE
1. Disconnect the negative battery cable.

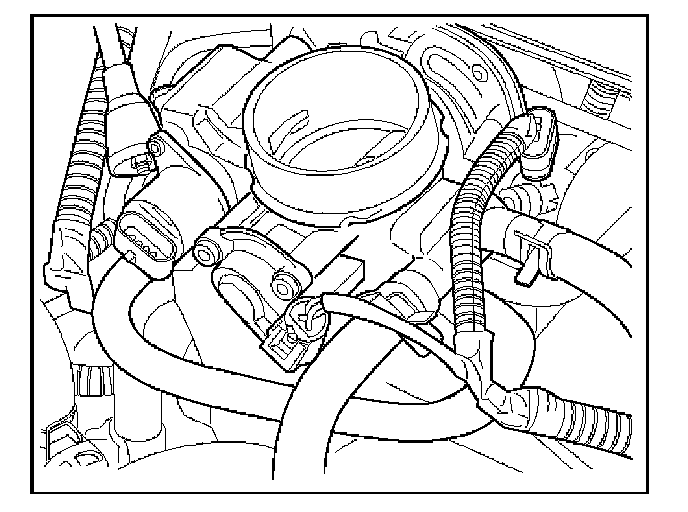

2. Disconnect the TPS electrical connector.

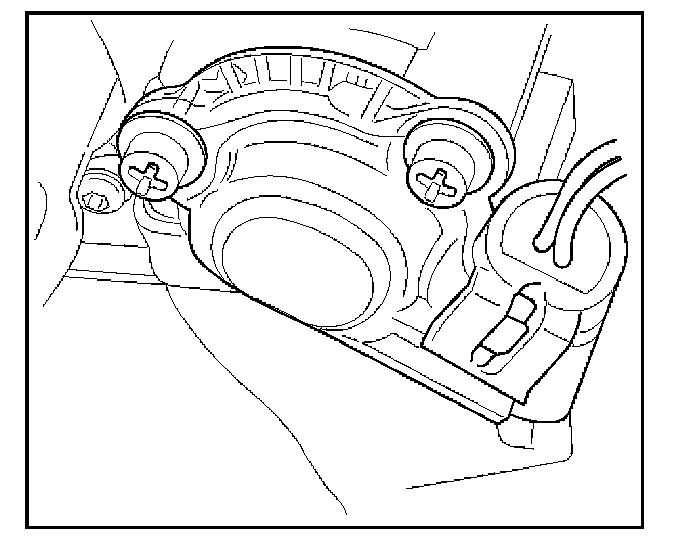

3. Remove the two screws and TP sensor from the throttle body.

NOTE: Do not clean the TP sensor by soaking it in solvent. The sensor will be damaged as a result.

INSTALLATION PROCEDURE




1. Install the TP sensor on the throttle body with two screws.

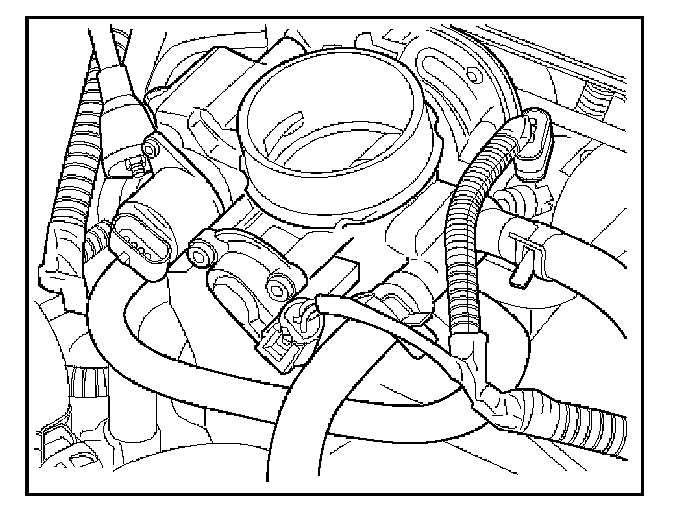

2. Connect the electrical connector.




3. Connect the negative battery cable.
