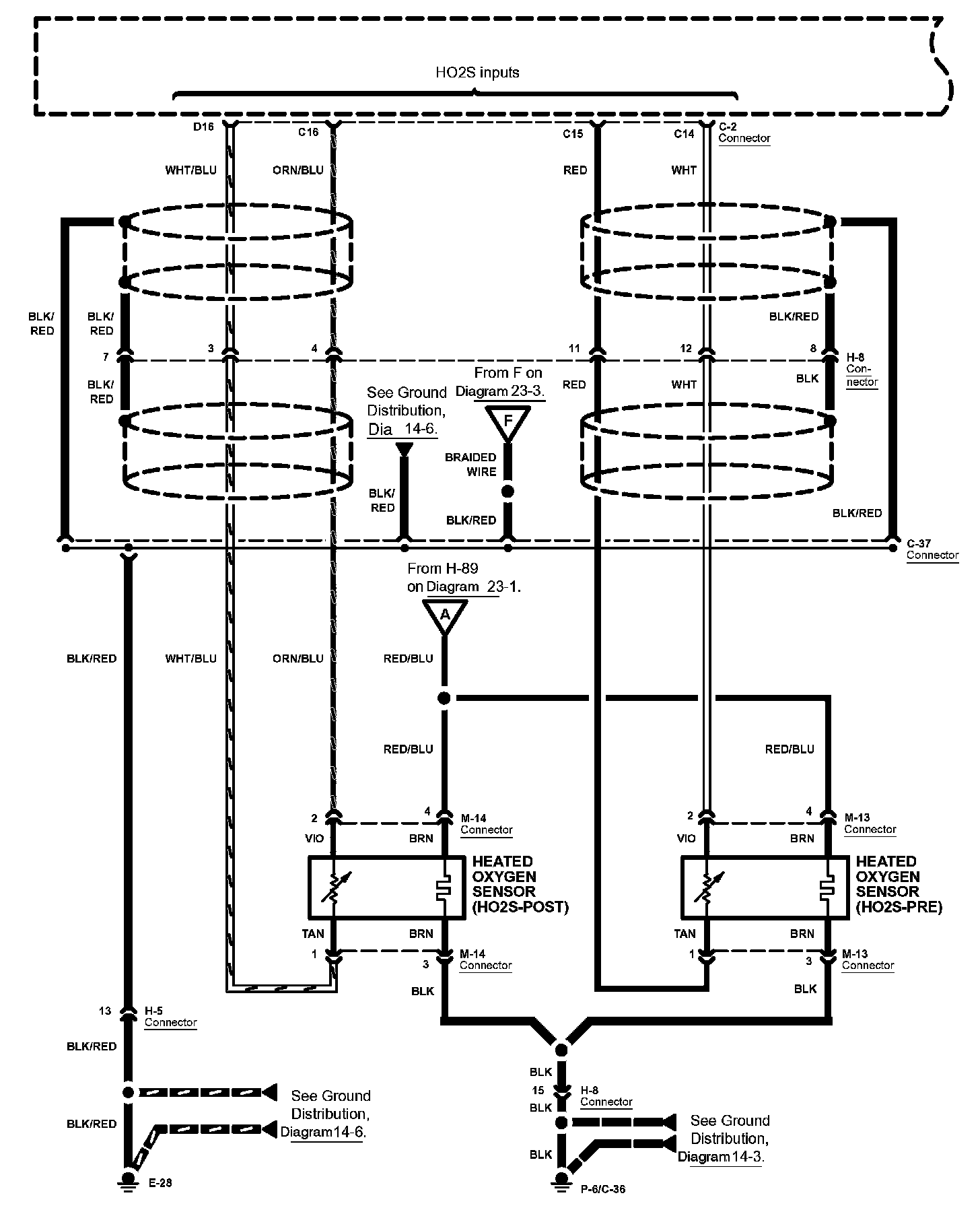

Diagram 23-2

Diagram 23-2:

Next Diagram: Diagram 23-3

Previous Diagram: Diagram 23-1

Diagrams: Other diagrams referred to by number within these diagrams can be found at Diagrams by Number. Diagrams By Number


Connector Views: Connector terminal views for the connectors shown within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
