Spark Plug: Service and Repair
REMOVAL PROCEDURE # 1Type: NGK BPR6ES-11
Spark Gap: 1.05 MM (0.040")
Spark Plug Torque: 25 N.m (18 lb ft)
1. Disconnect the negative battery cable.
2. Remove four bolt holding spark plug cover plate to top of valve cover, and remove the cover plate.

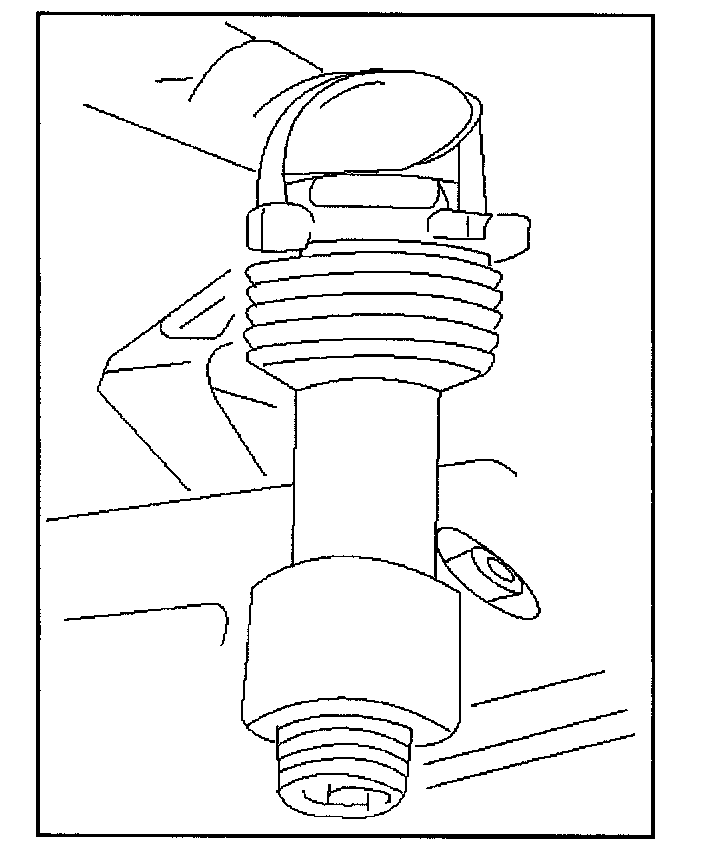

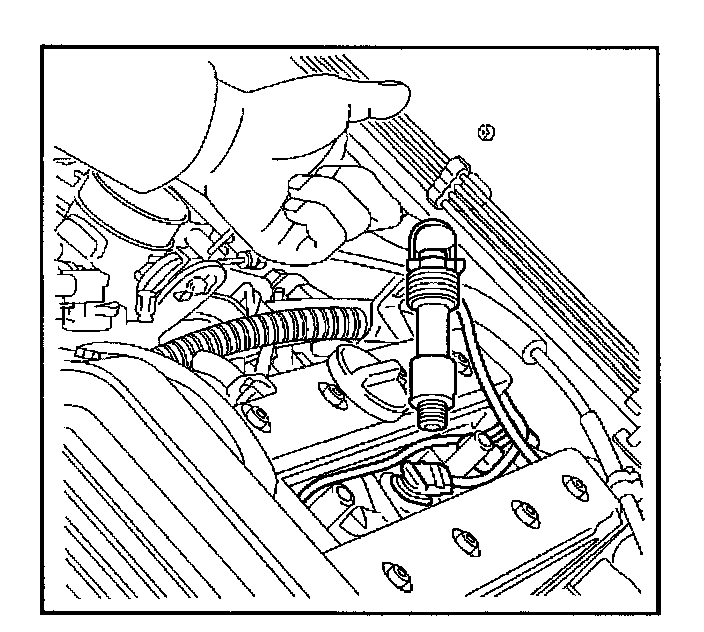

3. Pull ignition wire using hocks attached to end of spark plug cable.

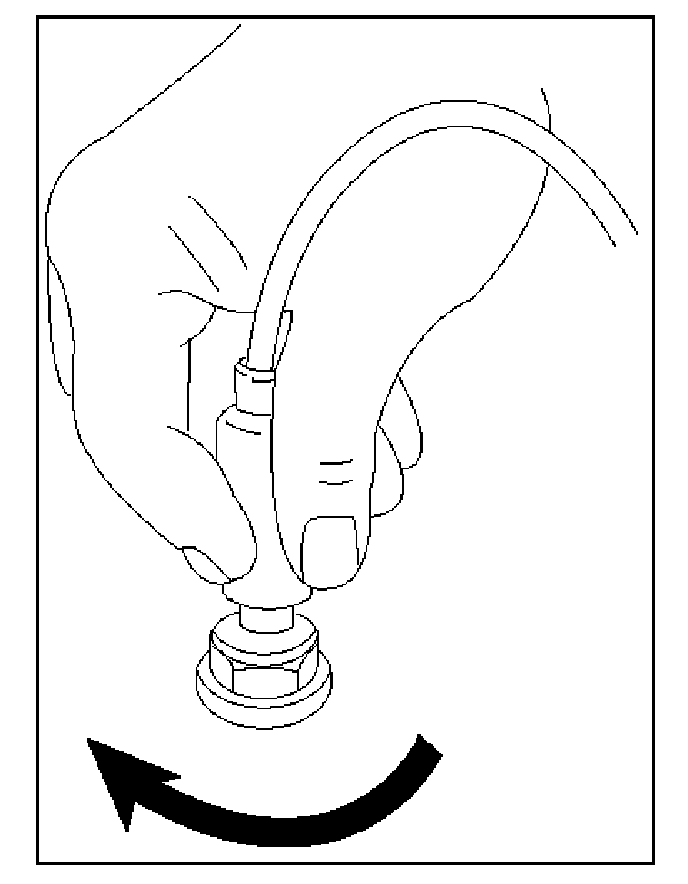

4. Remove the spark plug.
INSTALLATION PROCEDURE # 1
1. Tighten the spark plug to the 25 N.m (18 lb ft).
2. Push the spark plug cable in until it snaps in.
3. Install spark plug cover onto valve cover and secure it with four retaining bolts.
REMOVAL PROCEDURE # 2
1. Remove spark plugs.
INSTALLATION PROCEDURE # 2
1. Spark plugs
- Tighten spark plugs to the specified torque.
Torque: 25 N.m (18 lb ft)
