Possible Causes of High Line Pressure

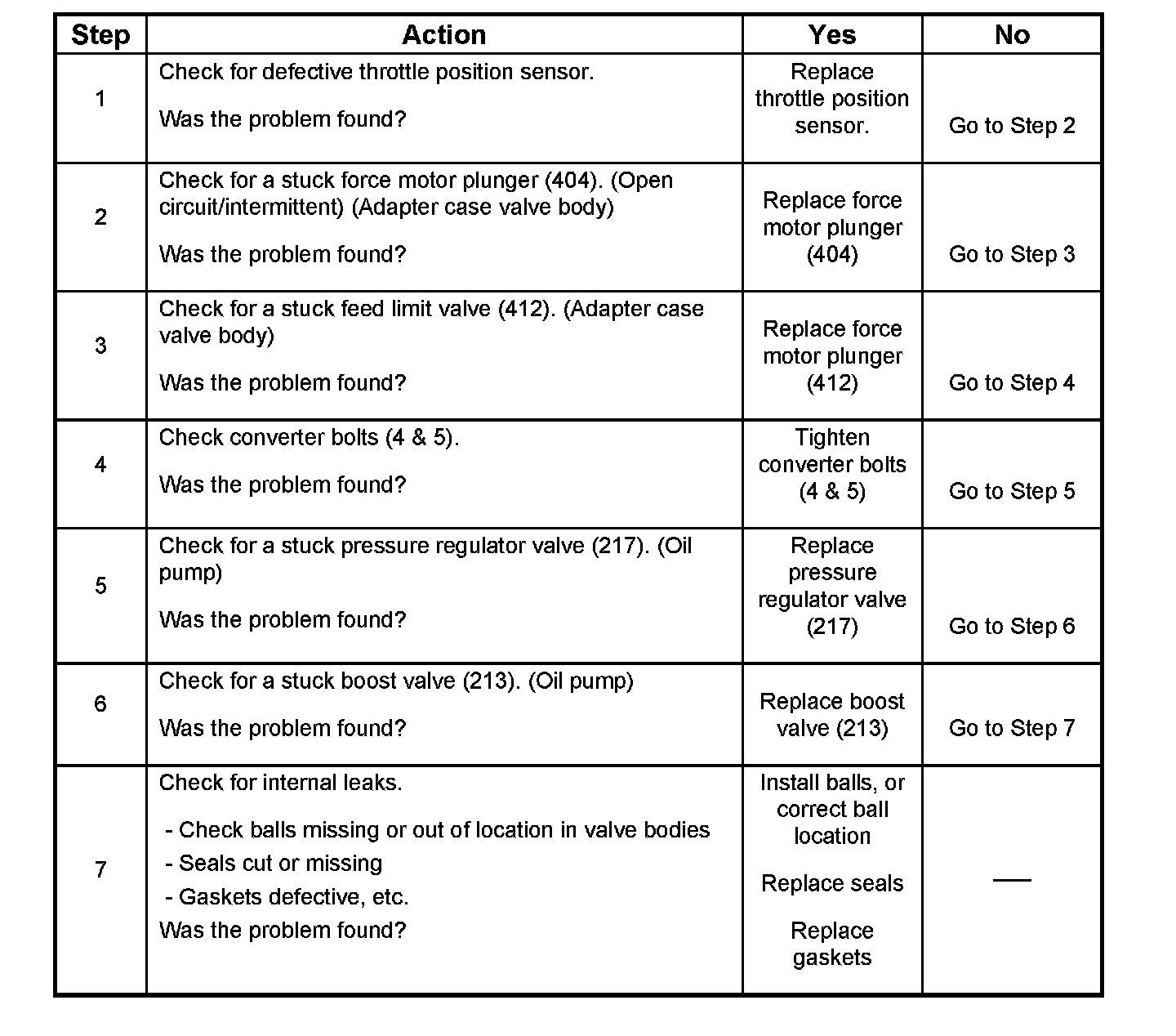

Chart 15b: Possible Causes Of High Line Pressure





Note: If transmission is operating in backup mode, high line pressure will be present.
