Front

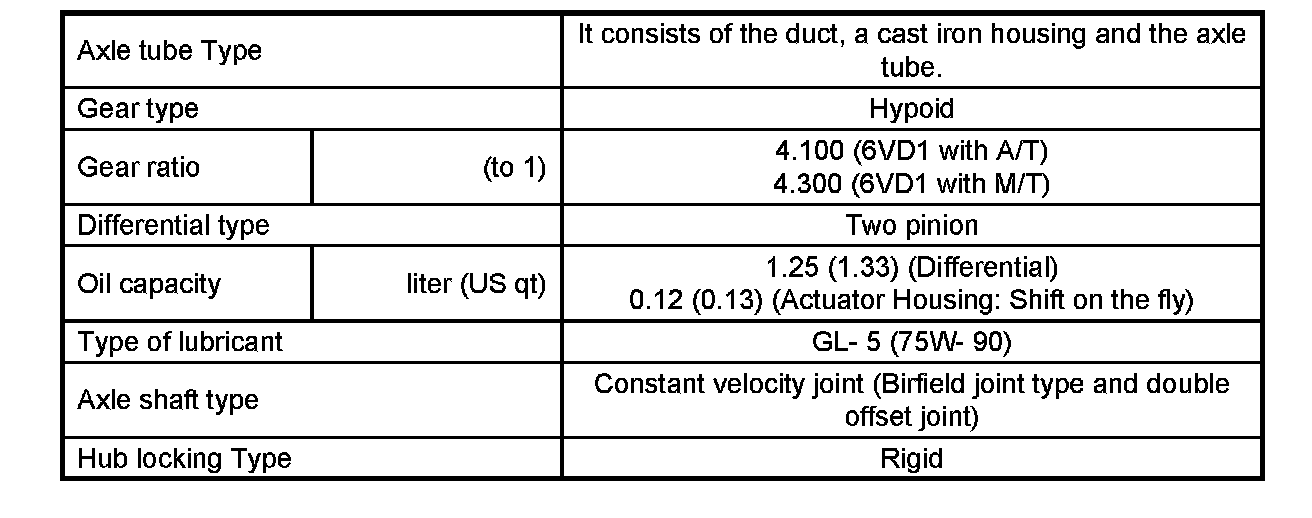

FRONT DIFFERENTIAL





GENERAL SPECIFICATIONS

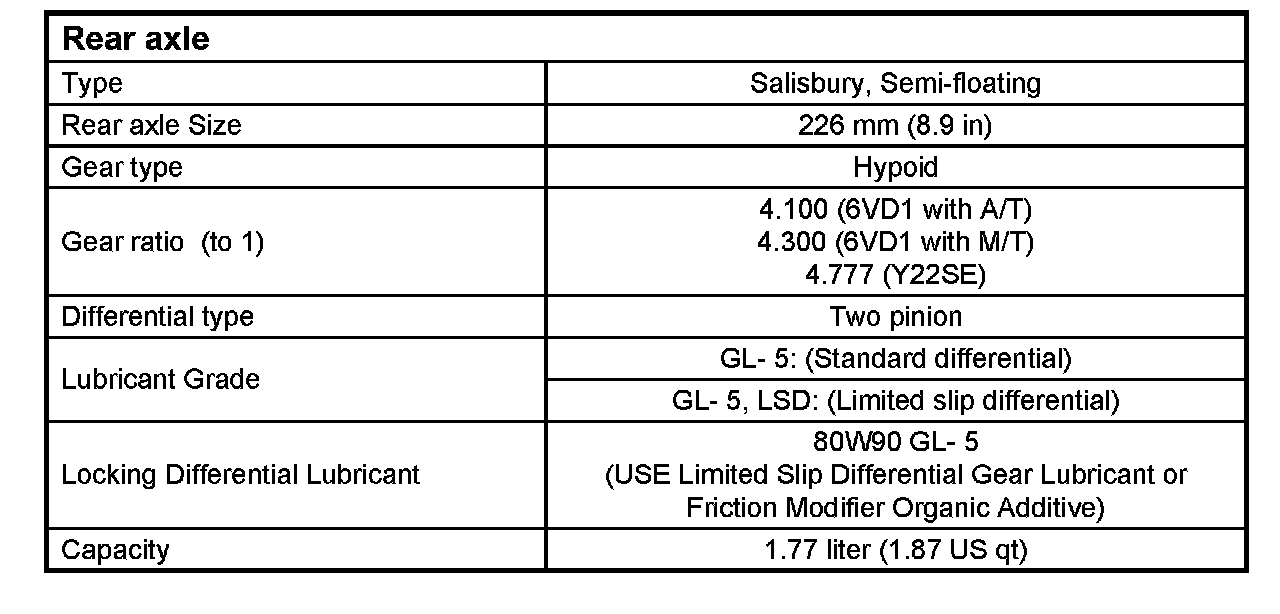

REAR DIFFERENTIAL





GENERAL SPECIFICATIONS

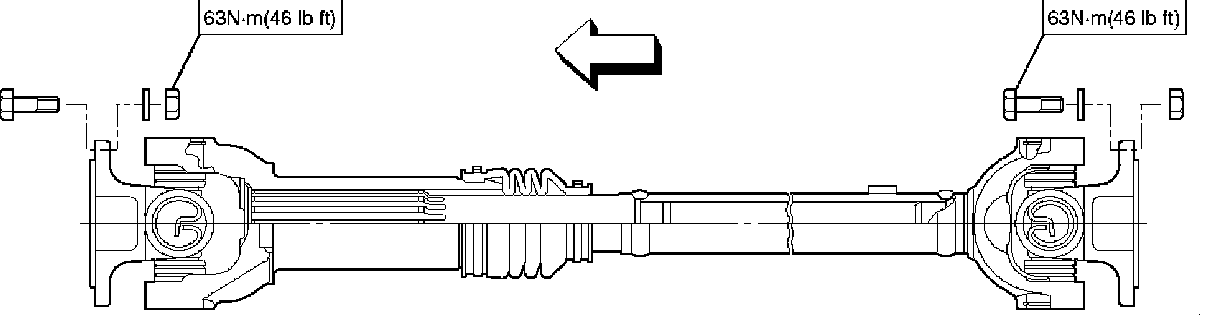

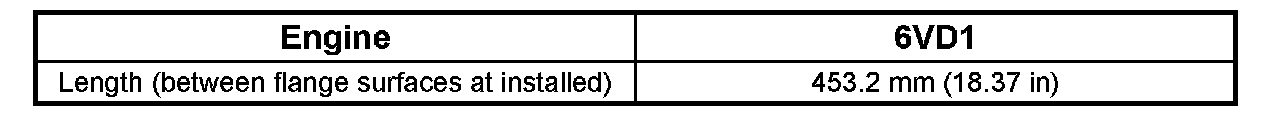

FRONT PROPELLER SHAFT





GENERAL SPECIFICATIONS





TORQUE SPECIFICATIONS

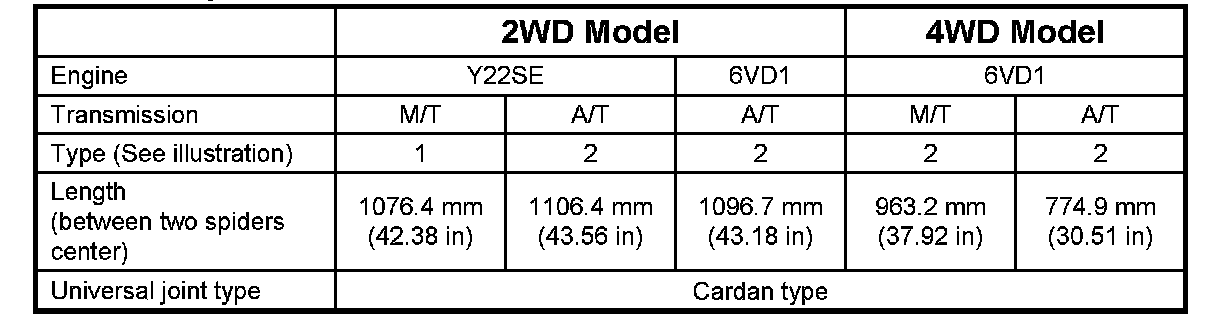

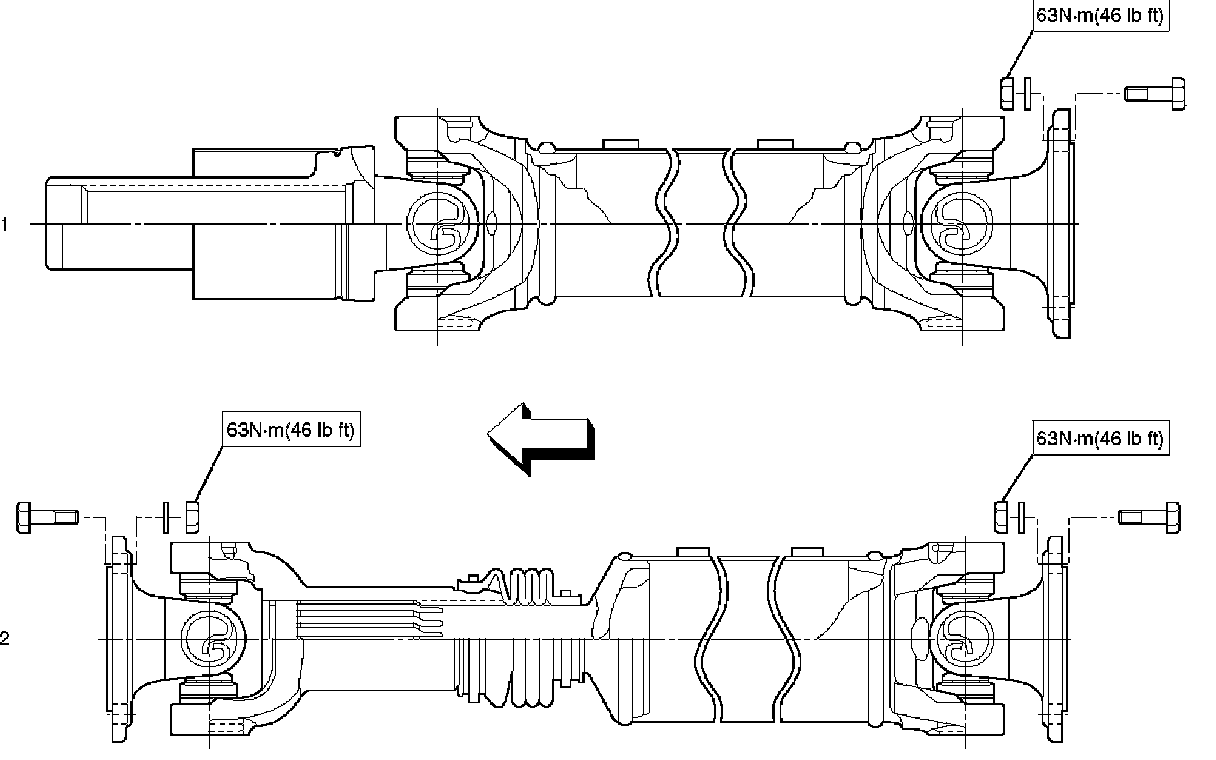

REAR PROPELLER SHAFT





GENERAL SPECIFICATIONS





TORQUE SPECIFICATIONS
