System Specifications
DRUM BRAKE SYSTEM
Brake Drum:

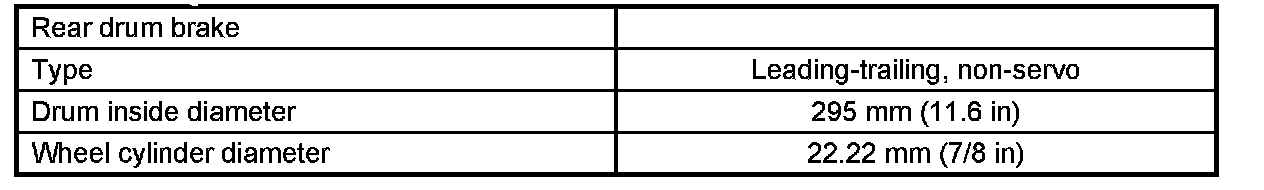

General Specifications
Brake Drum:

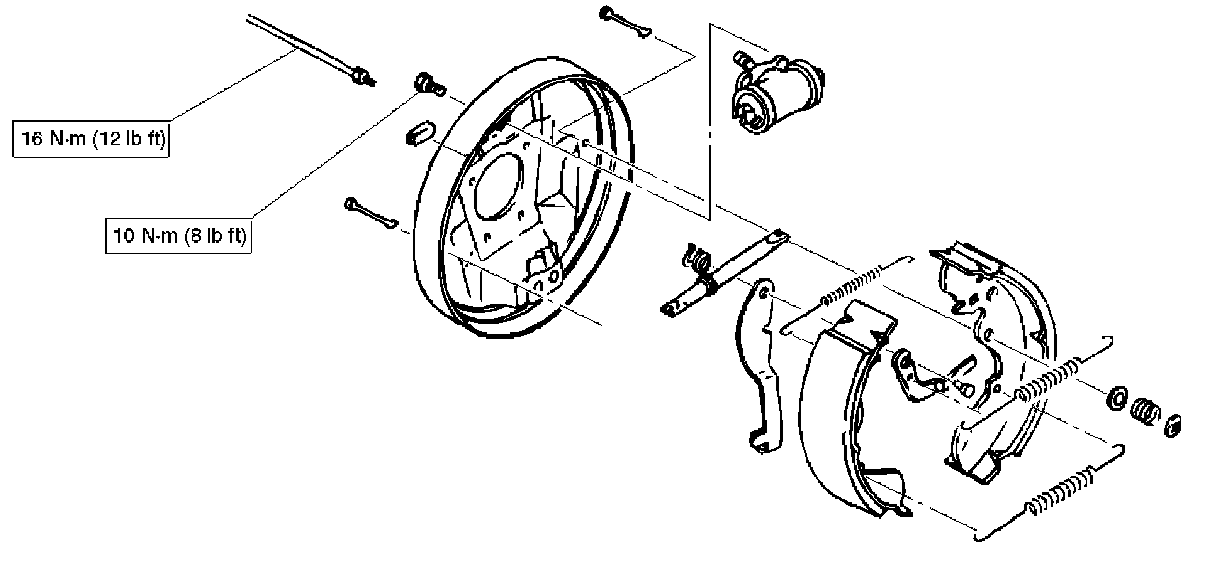

Torque Specifications
