Ground Distribution

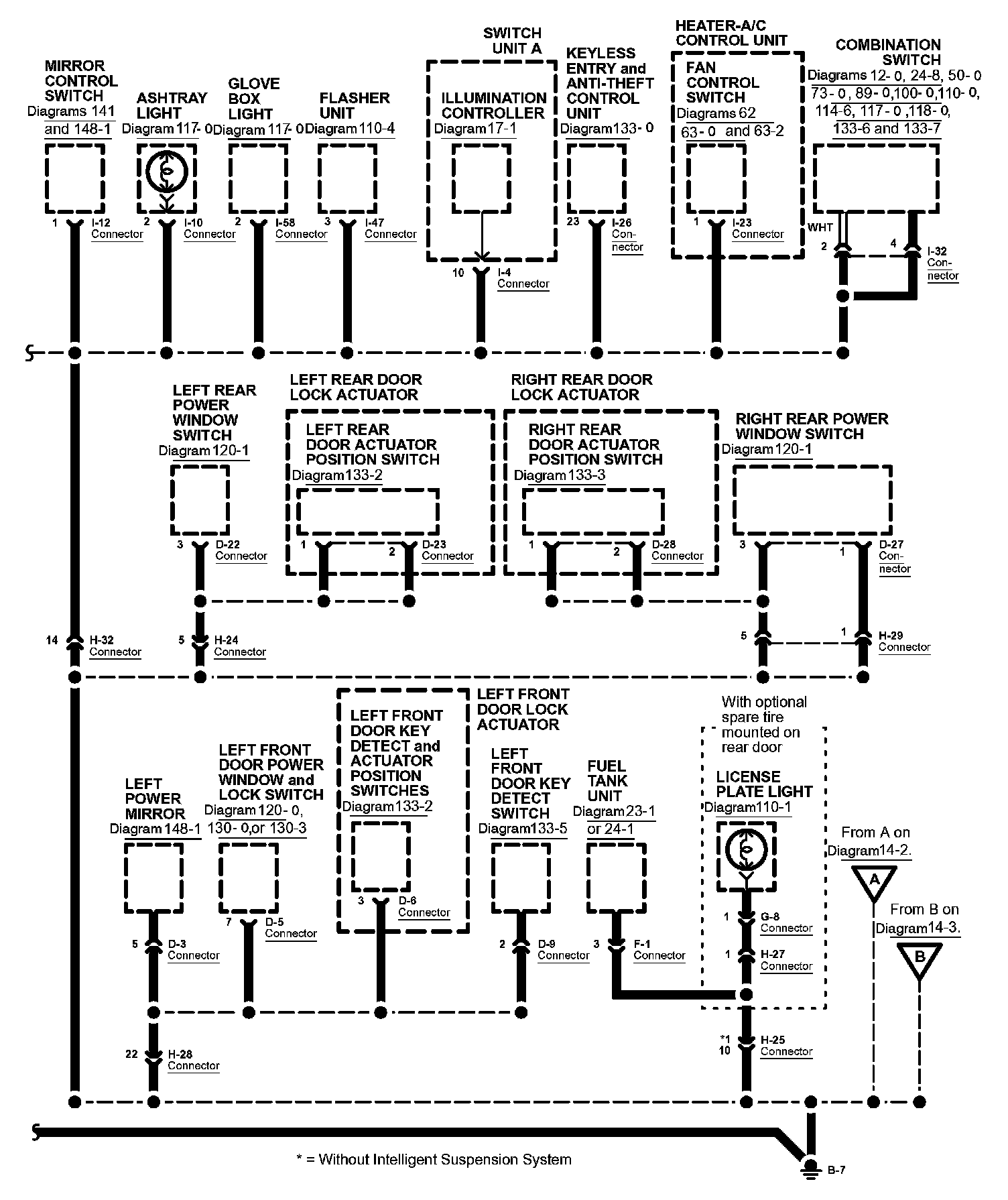

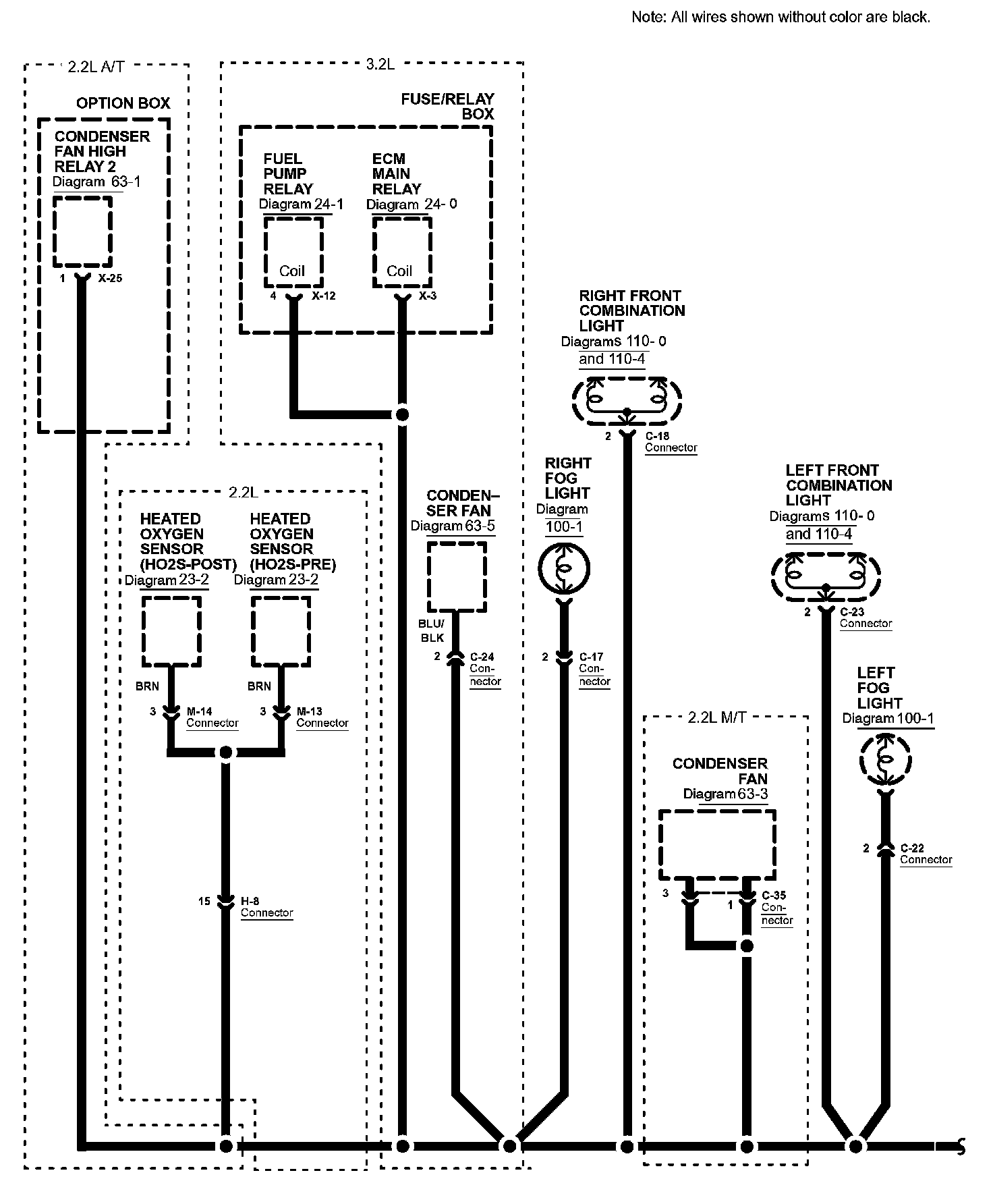

Diagram 14-0 (Ground B-7):

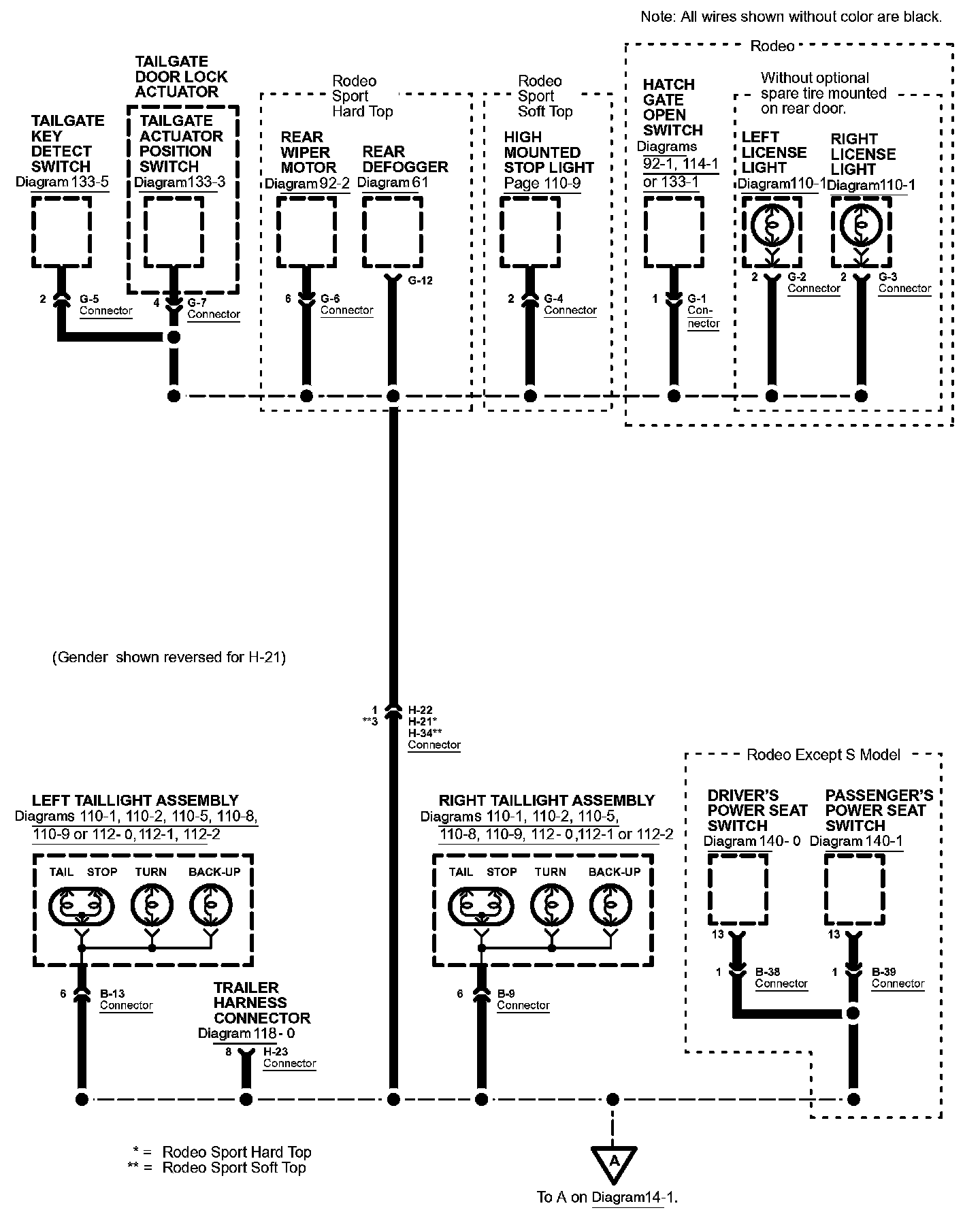

Diagram 14-1 (Ground B-7):

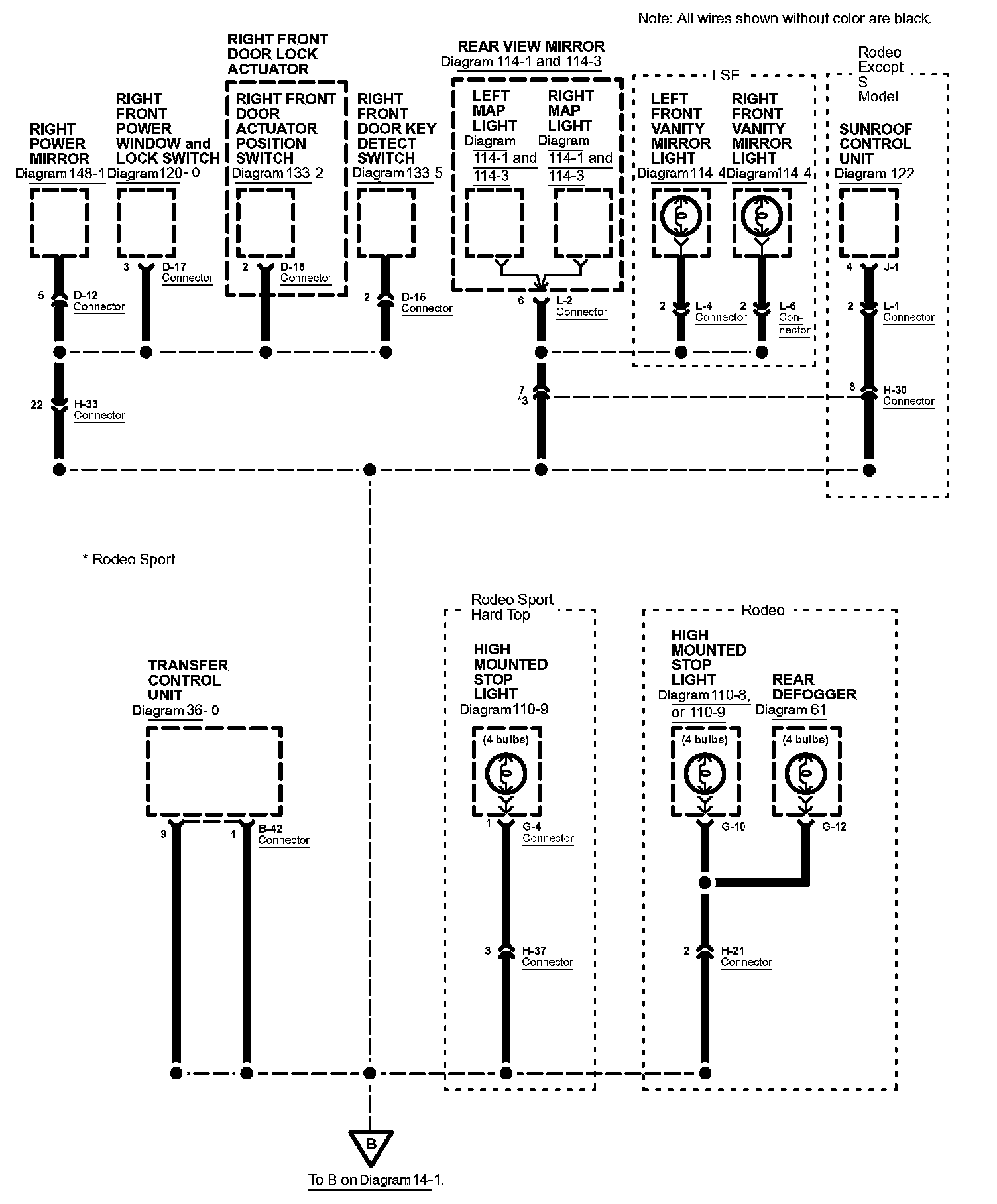

Diagram 14-2 (Ground B-7):

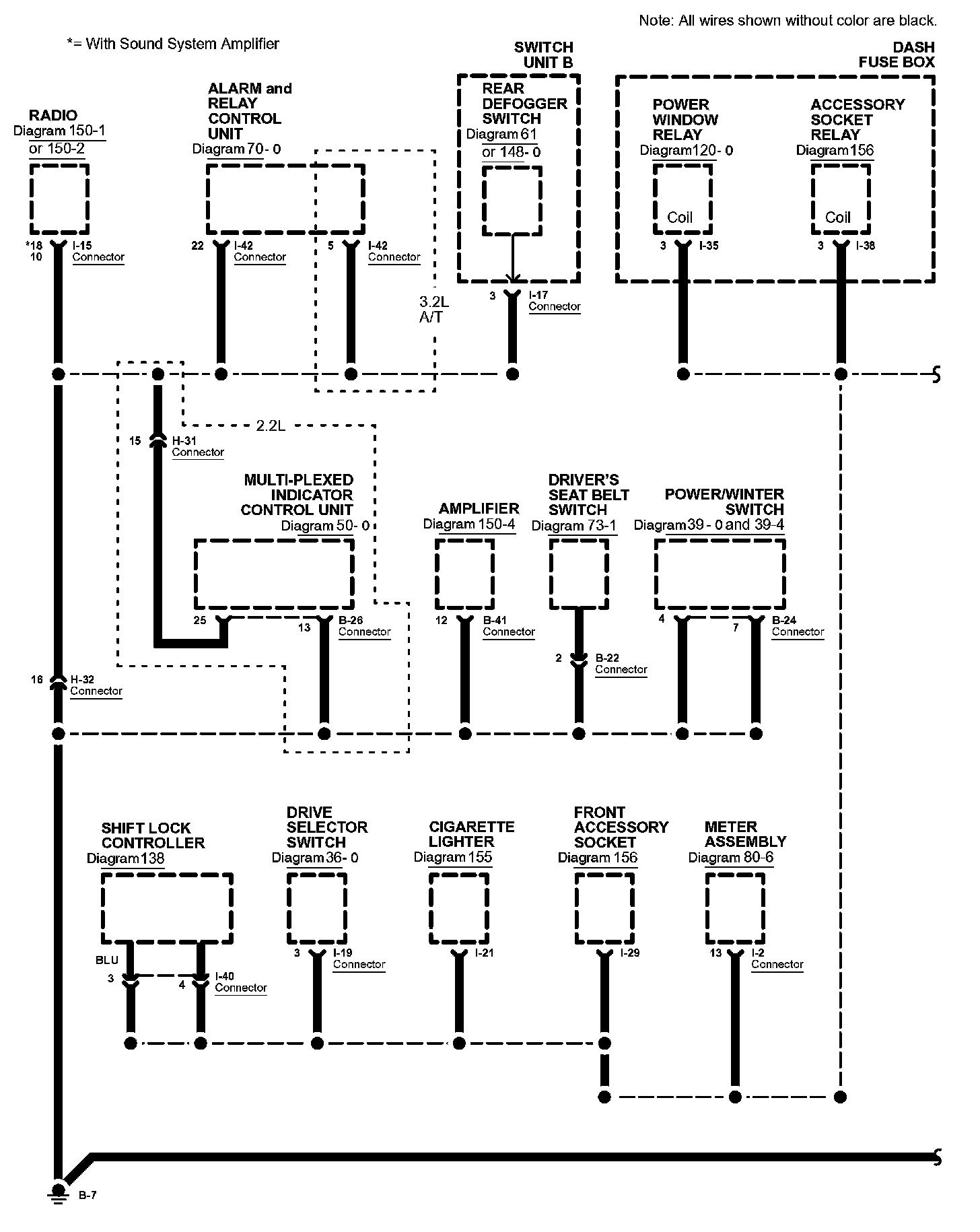

Diagram 14-3 (Ground B-7):

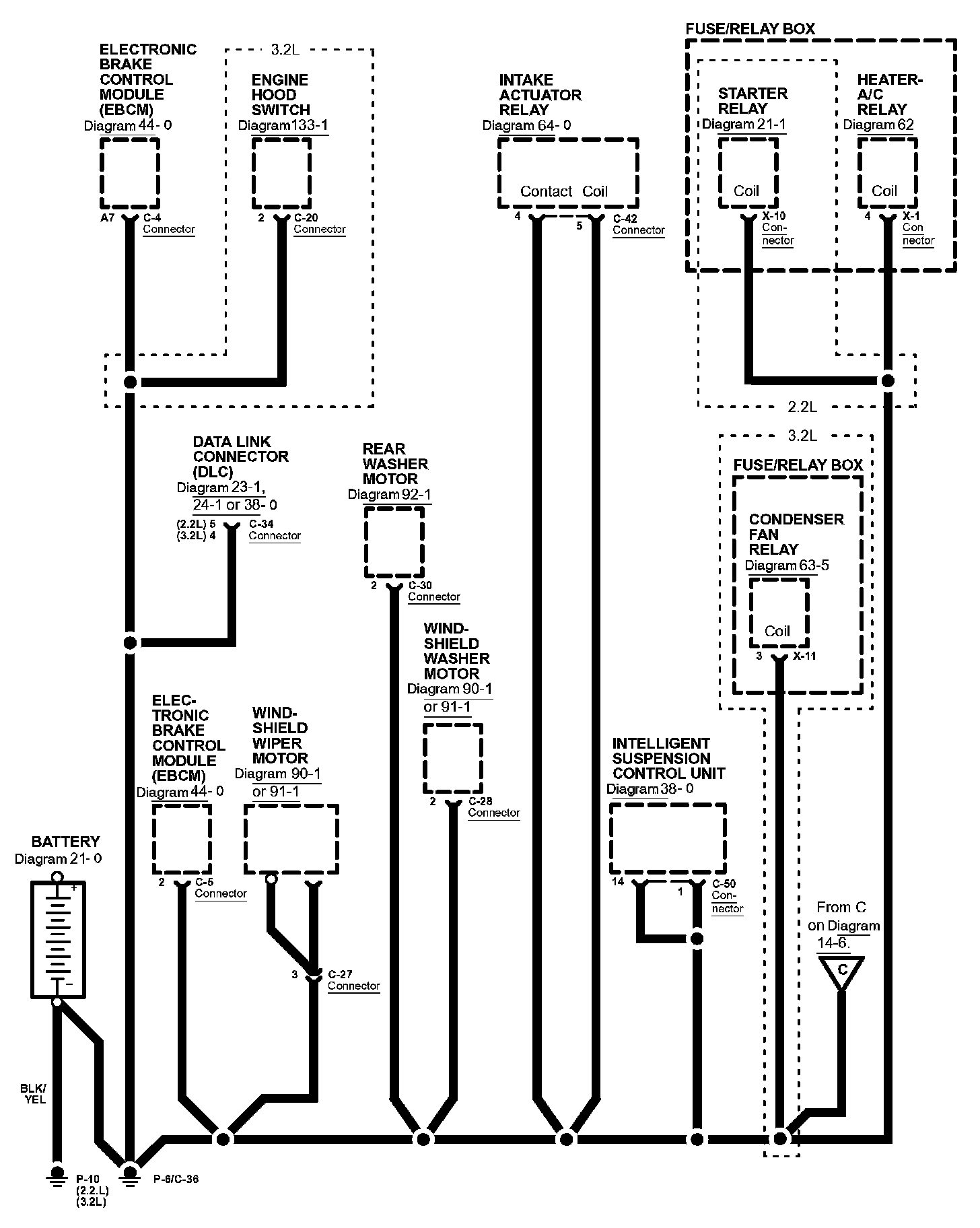

Diagram 14-4 (Ground P-10, P-6/C-36 & C-16):

Diagram 14-5 (Ground P-10, P-6/C-36 & C-16):

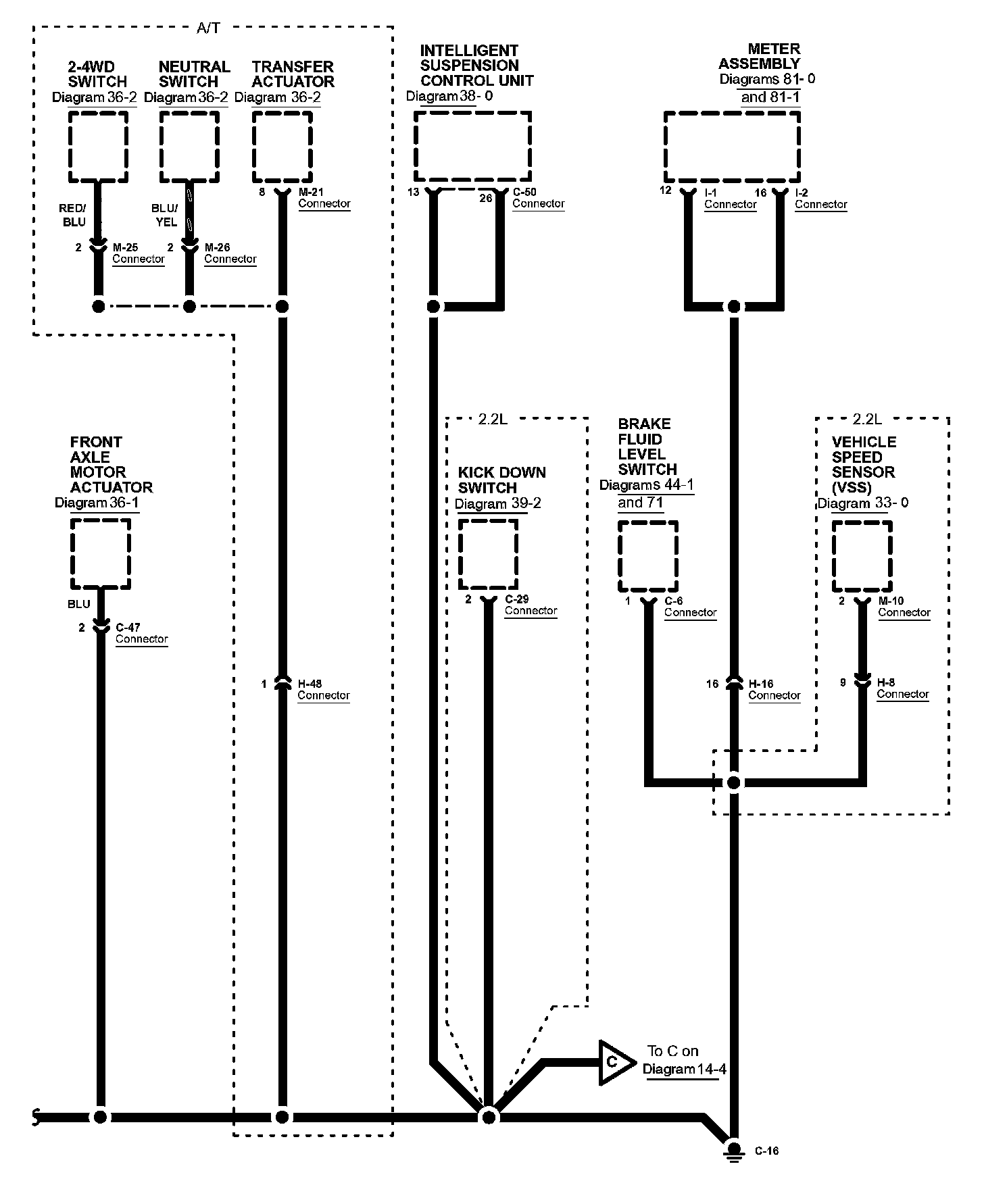

Diagram 14-6 (Ground P-6/C-36 & C-16):

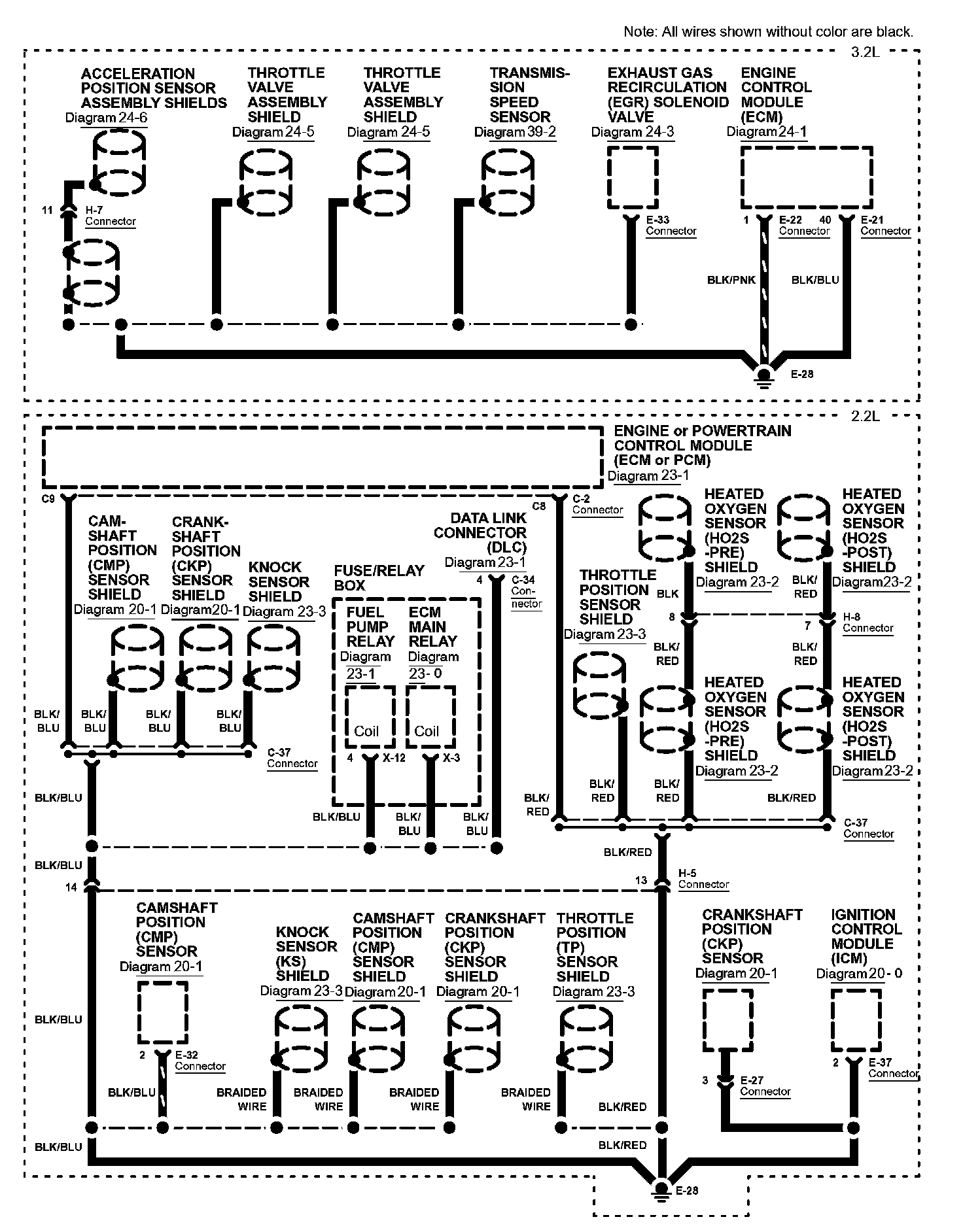

Diagram 14-7 (Ground E-28):

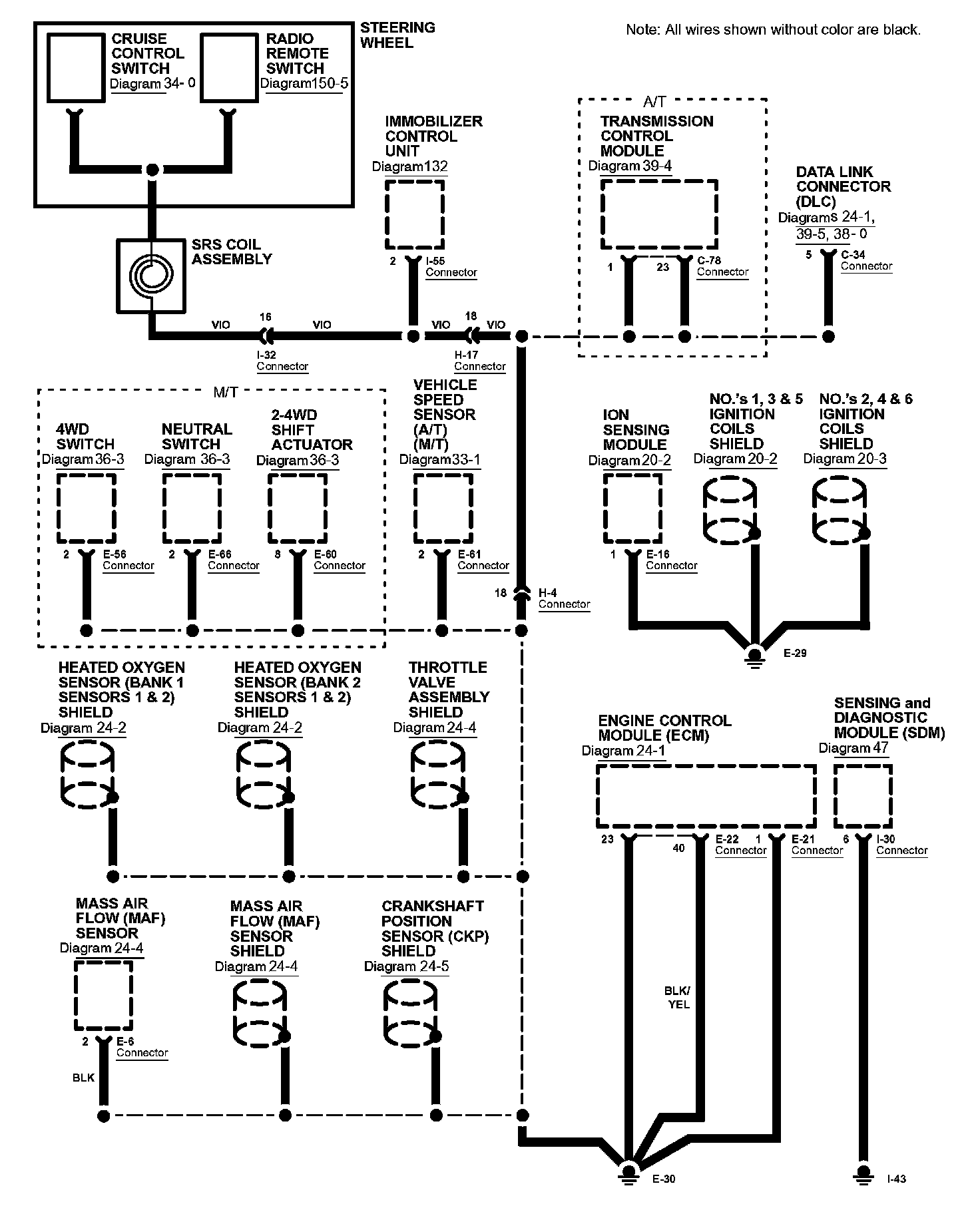

Diagram 14-8 (Ground E-29 And E-30 (3.2L) I-43):

Diagrams: Other diagrams referred to by number within these diagrams can be found at Diagrams by Number. Diagrams By Number


Connector Views: Connector terminal views for the connectors shown within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
