Transfer Case

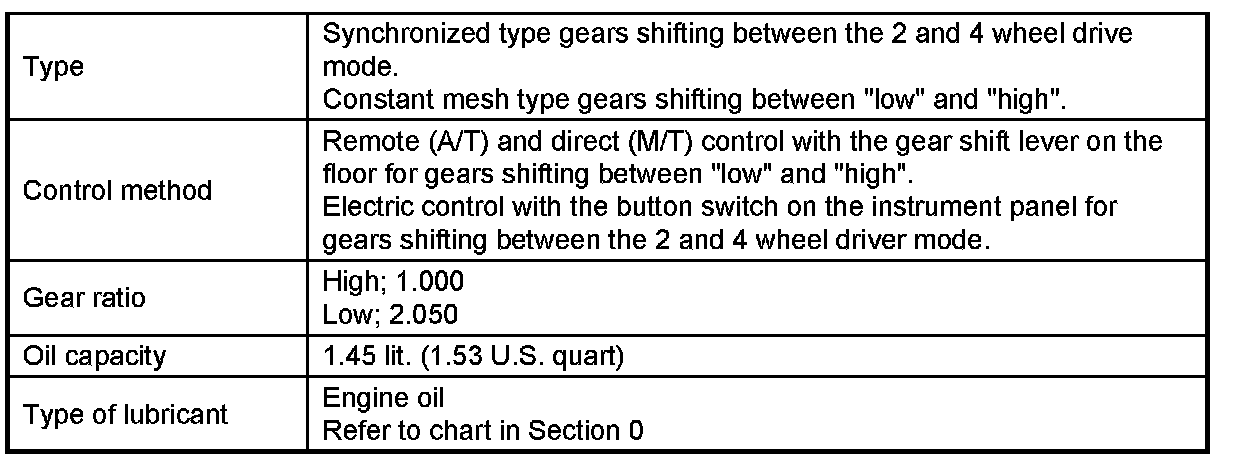

General Specifications





Type
Synchronized type gears shifting between the 2 and 4 wheel drive mode. Constant mesh type gears shifting between "low" and "high".
Control method
Remote (A/T) and direct (M/T) control with the gear shift lever on the floor for gears shifting between "low" and "high". Electric control with the button switch on the instrument panel for gears shifting between the 2 and 4 wheel driver mode.
Gear ratio High: 1,000 Low: 2,050
Oil capacity 1.45 lit. (1.53 U.S. quart)
Type of lubricant Engine oil.

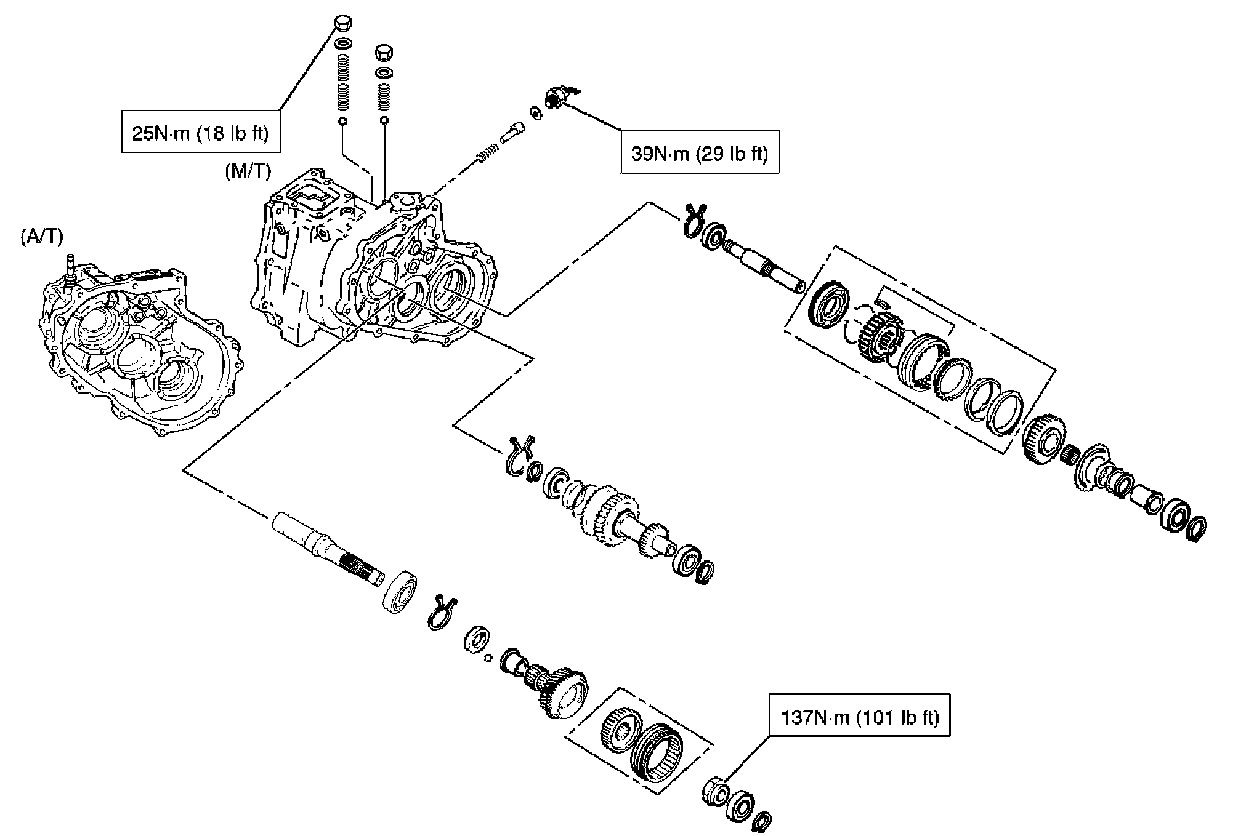

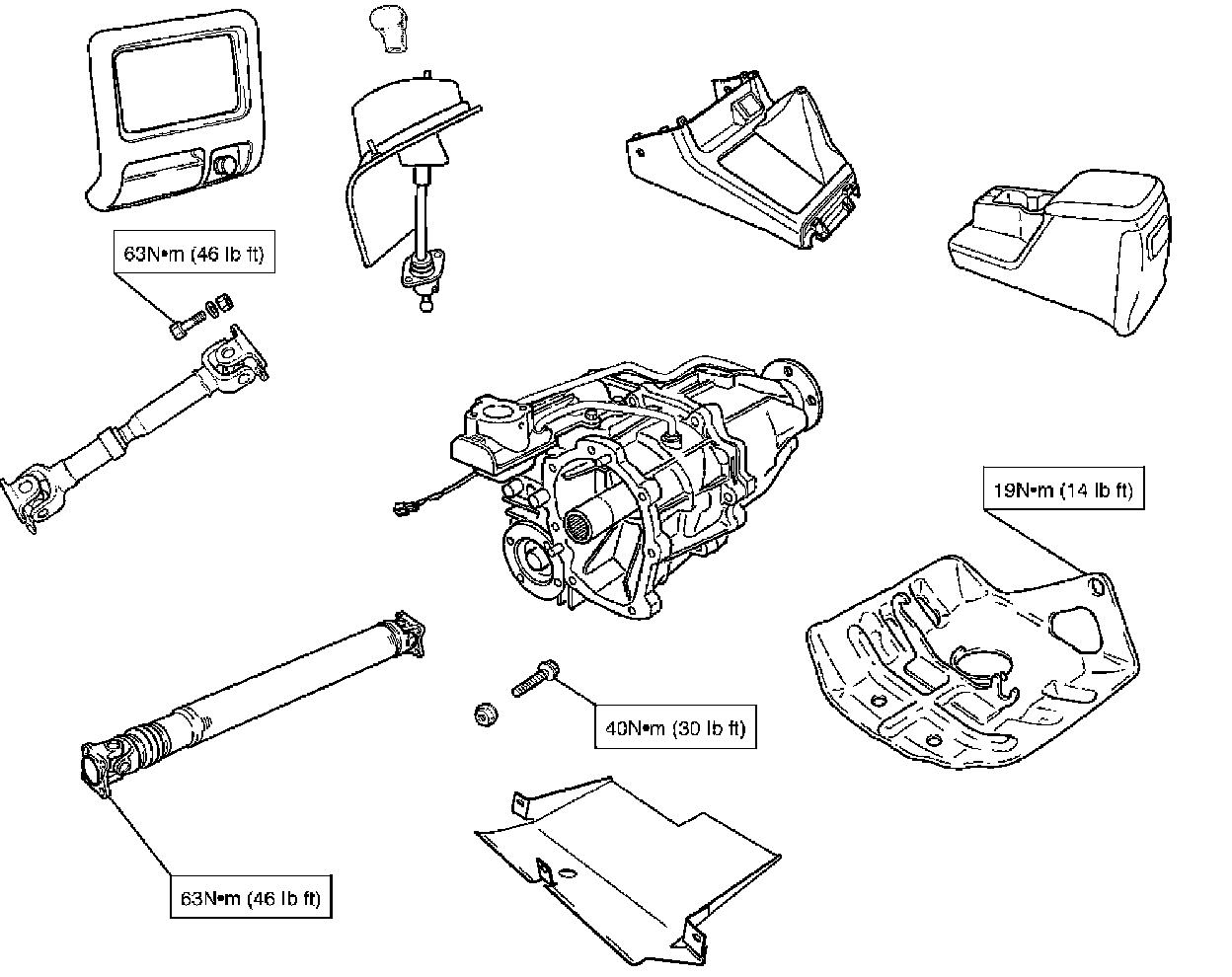

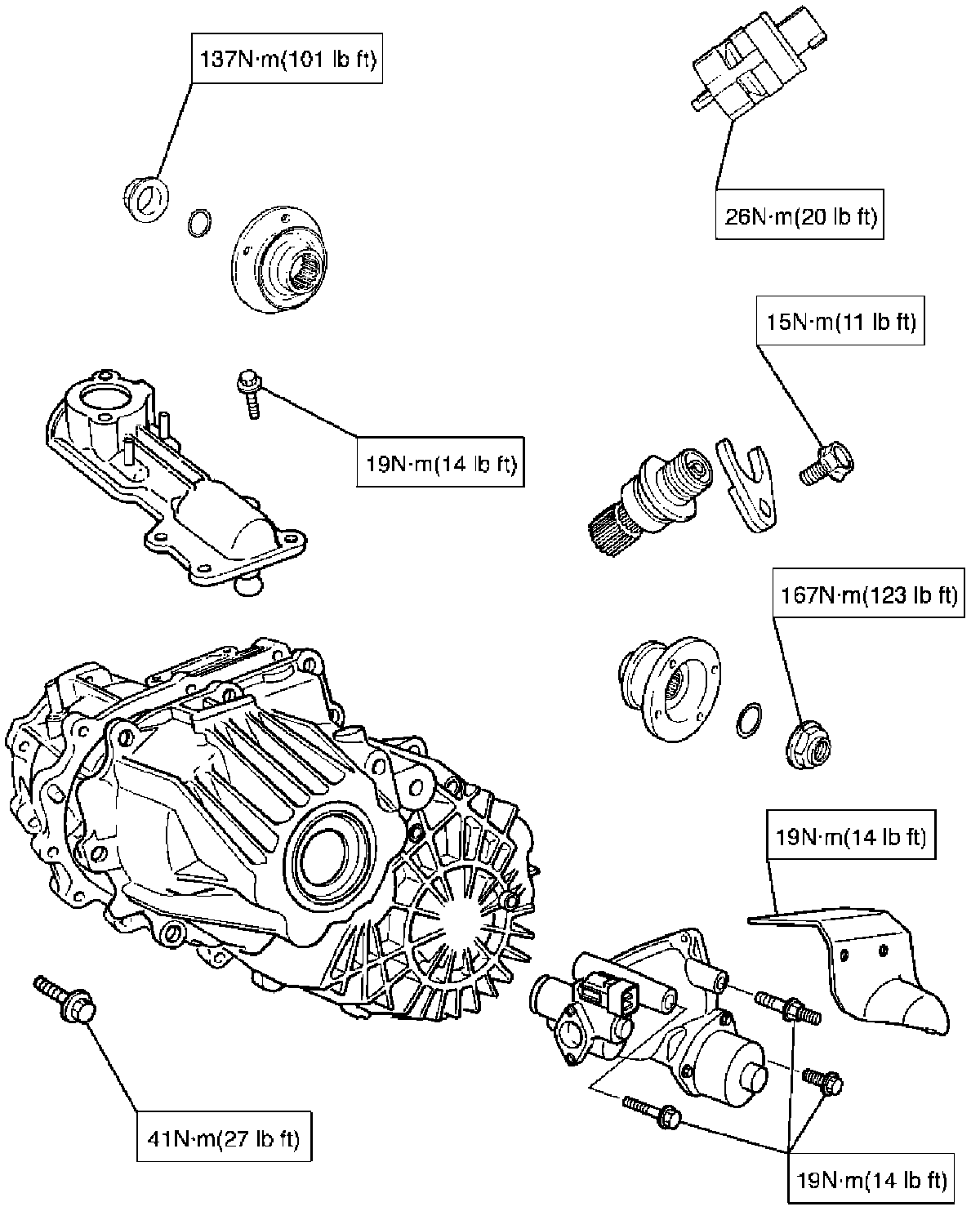

Torque Specifications





1 of 3





2 of 3





3 of 3
