Circuit Diagram

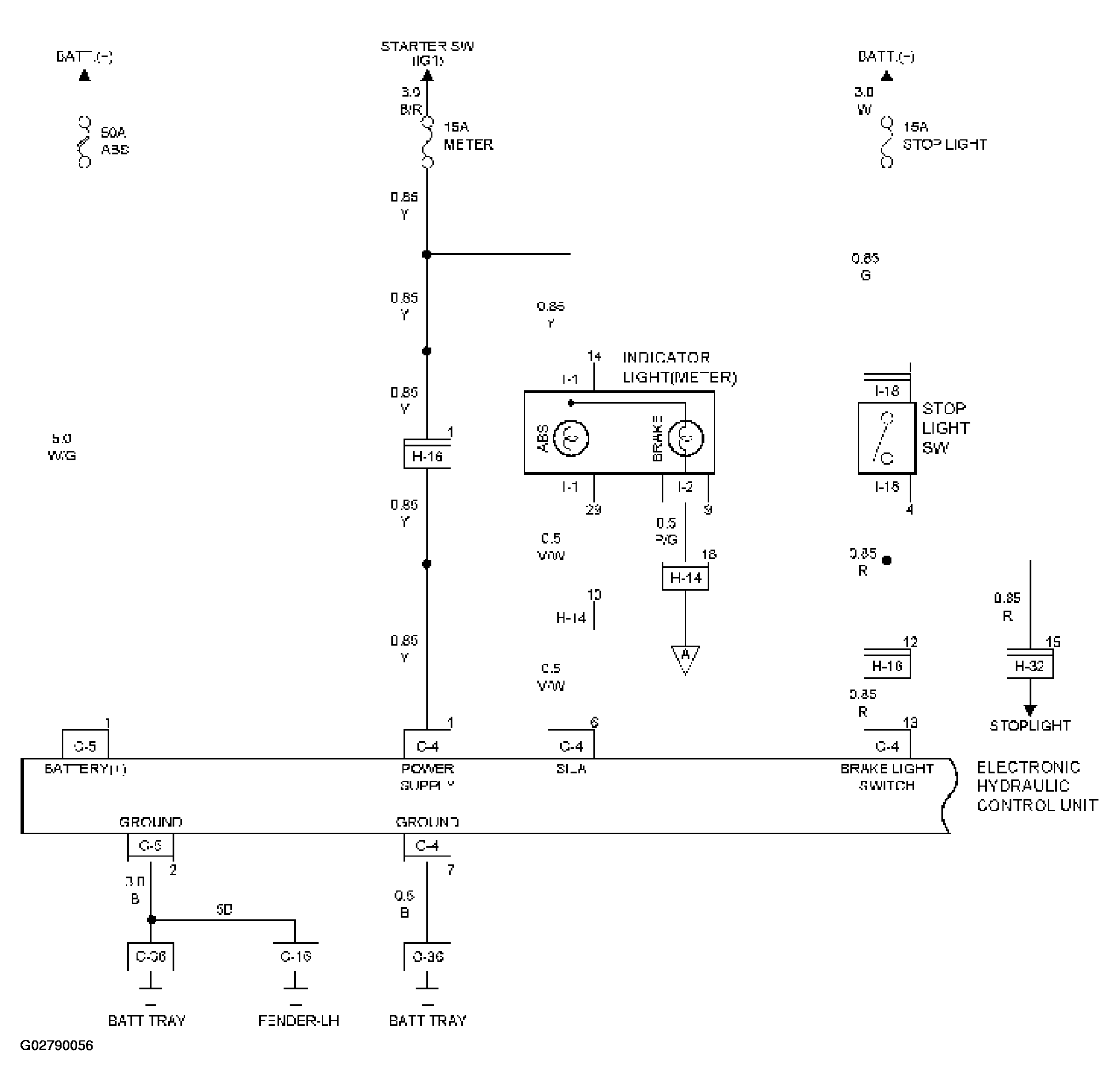

Fig 1: Circuit Diagram (1 Of 3)
G02790056Courtesy of ISUZU MOTOR CO.

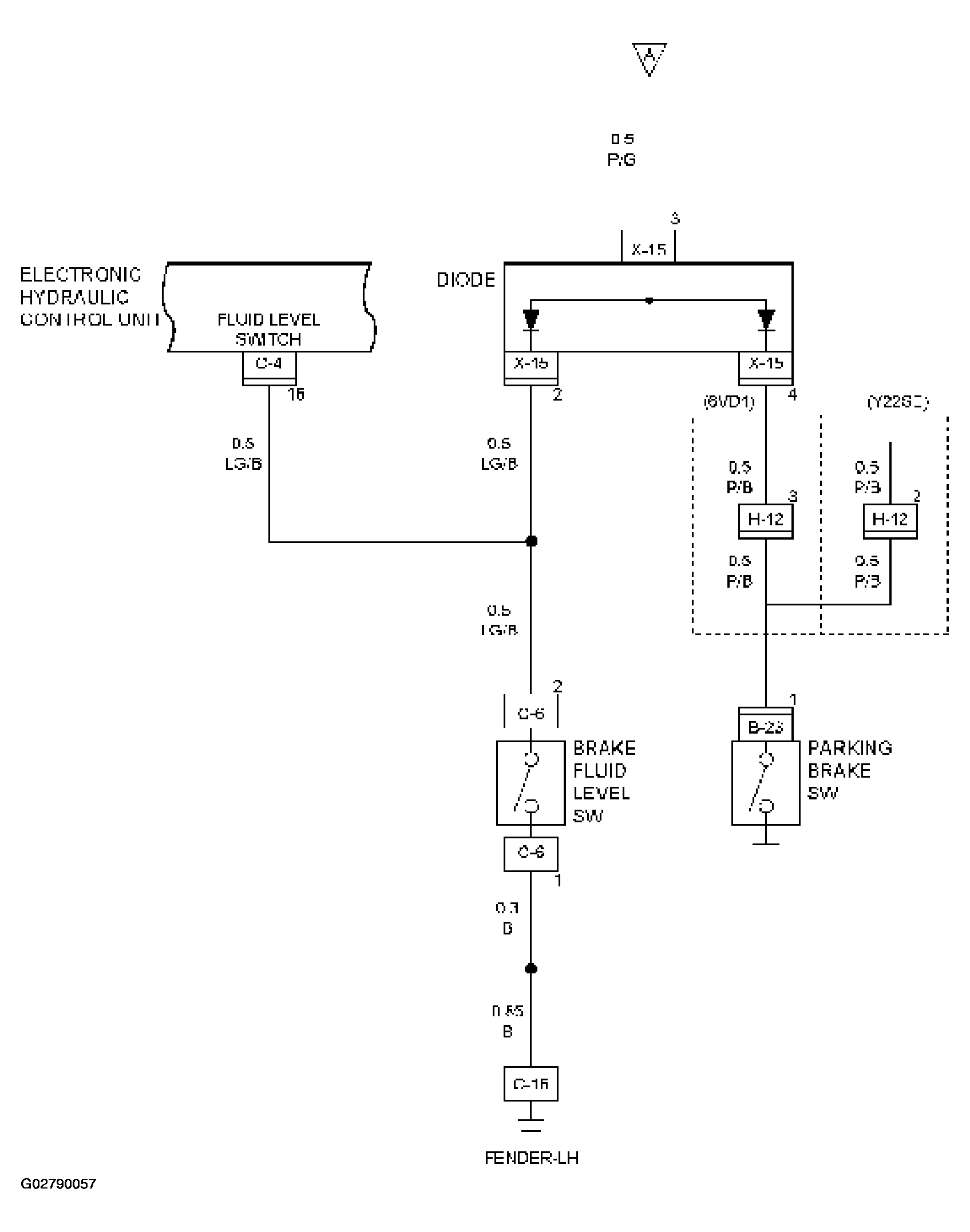

Fig 2: Circuit Diagram (2 Of 3)
G02790057Courtesy of ISUZU MOTOR CO.

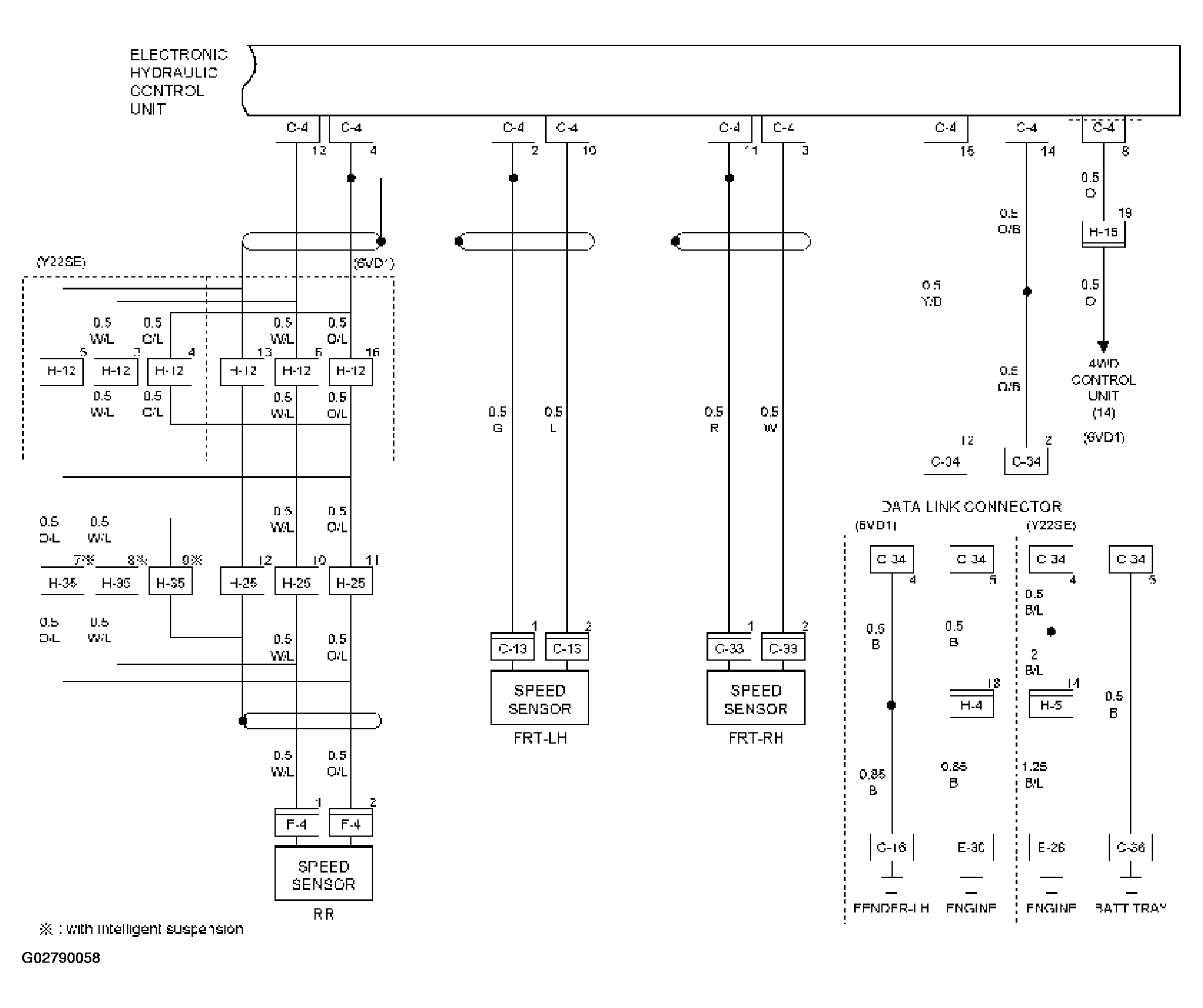

Fig 3: Circuit Diagram (3 Of 3)
G02790058Courtesy of ISUZU MOTOR CO.
