EHCU Connector Pin-out Checks: Notes

Disconnect Electronic Hydraulic Control Module.
Perform checks with high impedance digital multimeter J-39200 or equivalent.

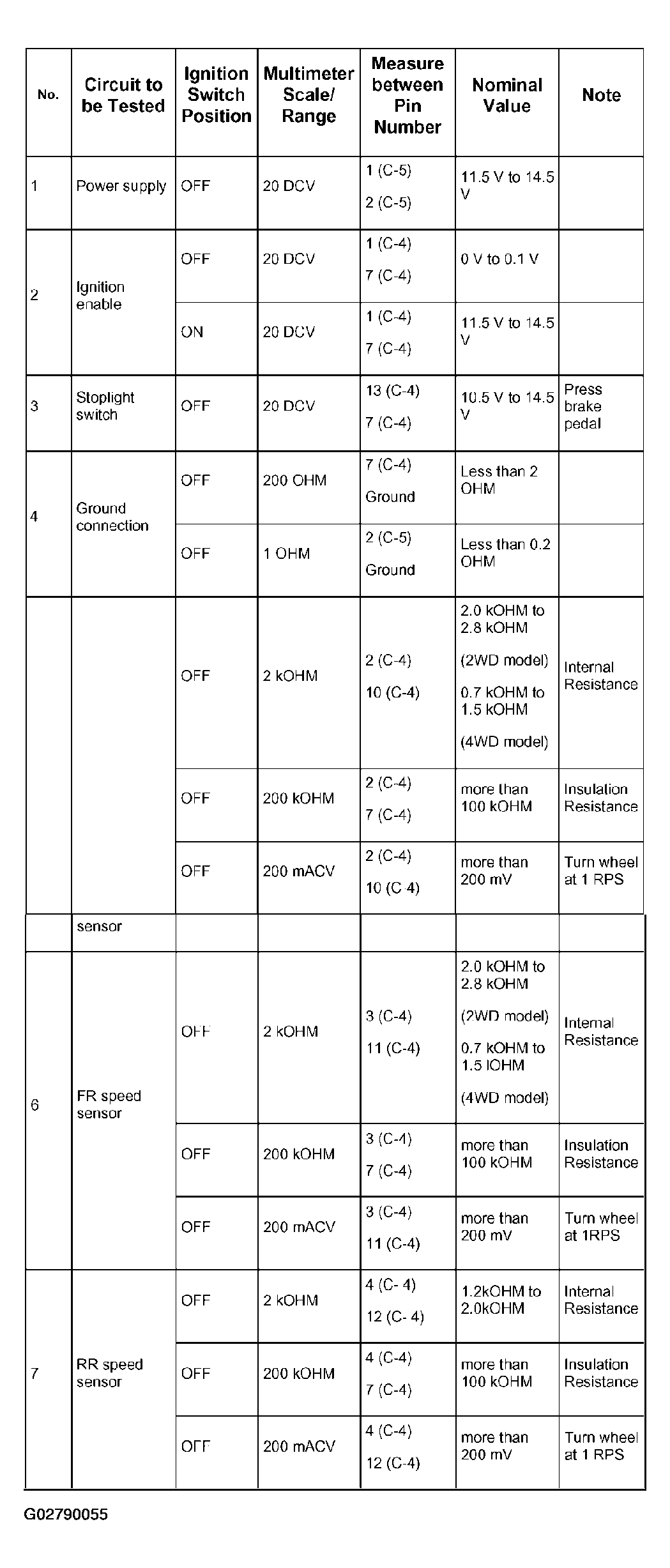

Fig 1: EHCU Connector Pin-Out Checks Chart
Courtesy of ISUZU MOTOR CO.
