Shift On The Fly System: Wiring Diagram

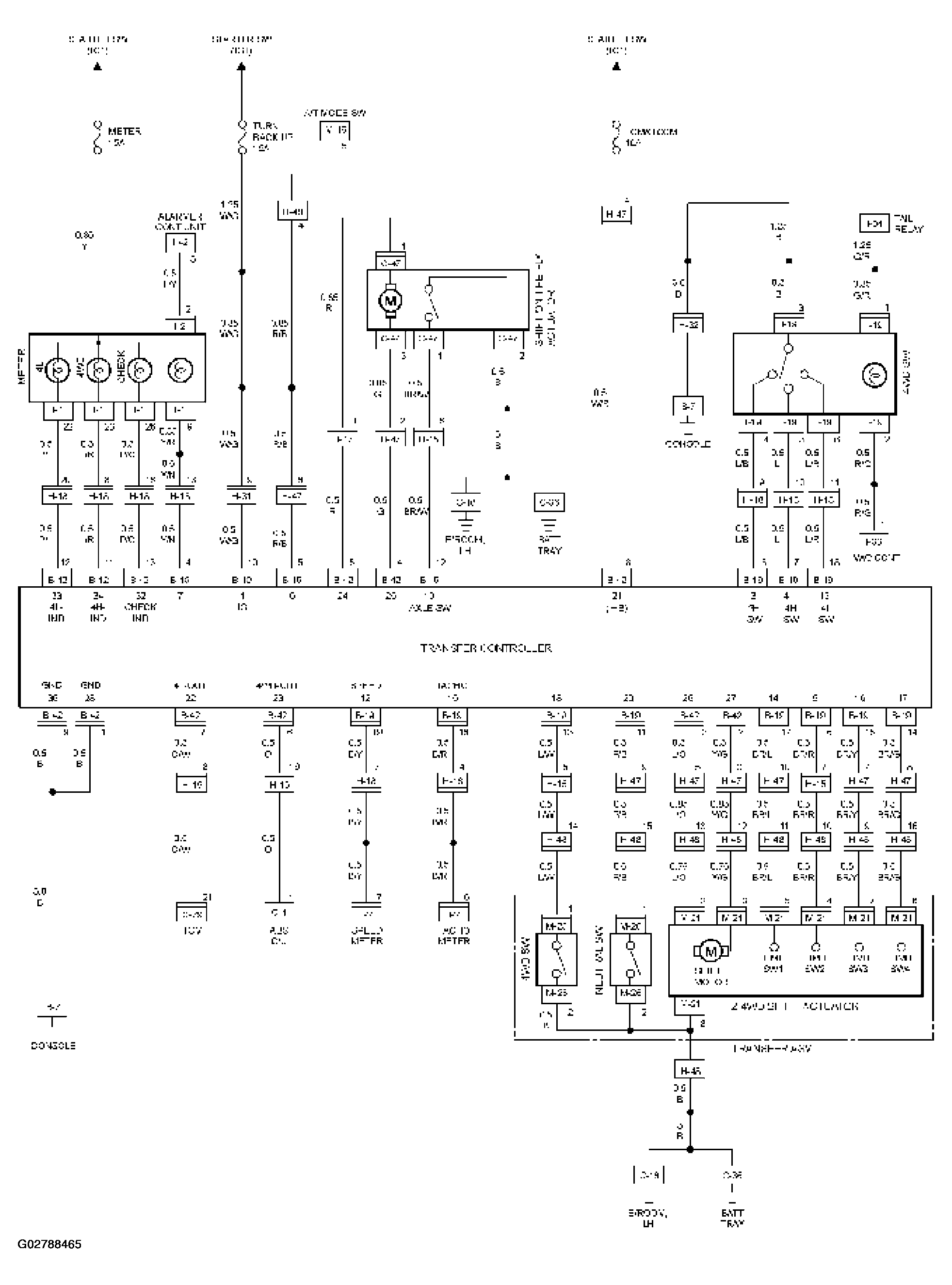

Fig 1: Shift On The Fly System Wiring Diagram
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
