Parts Location

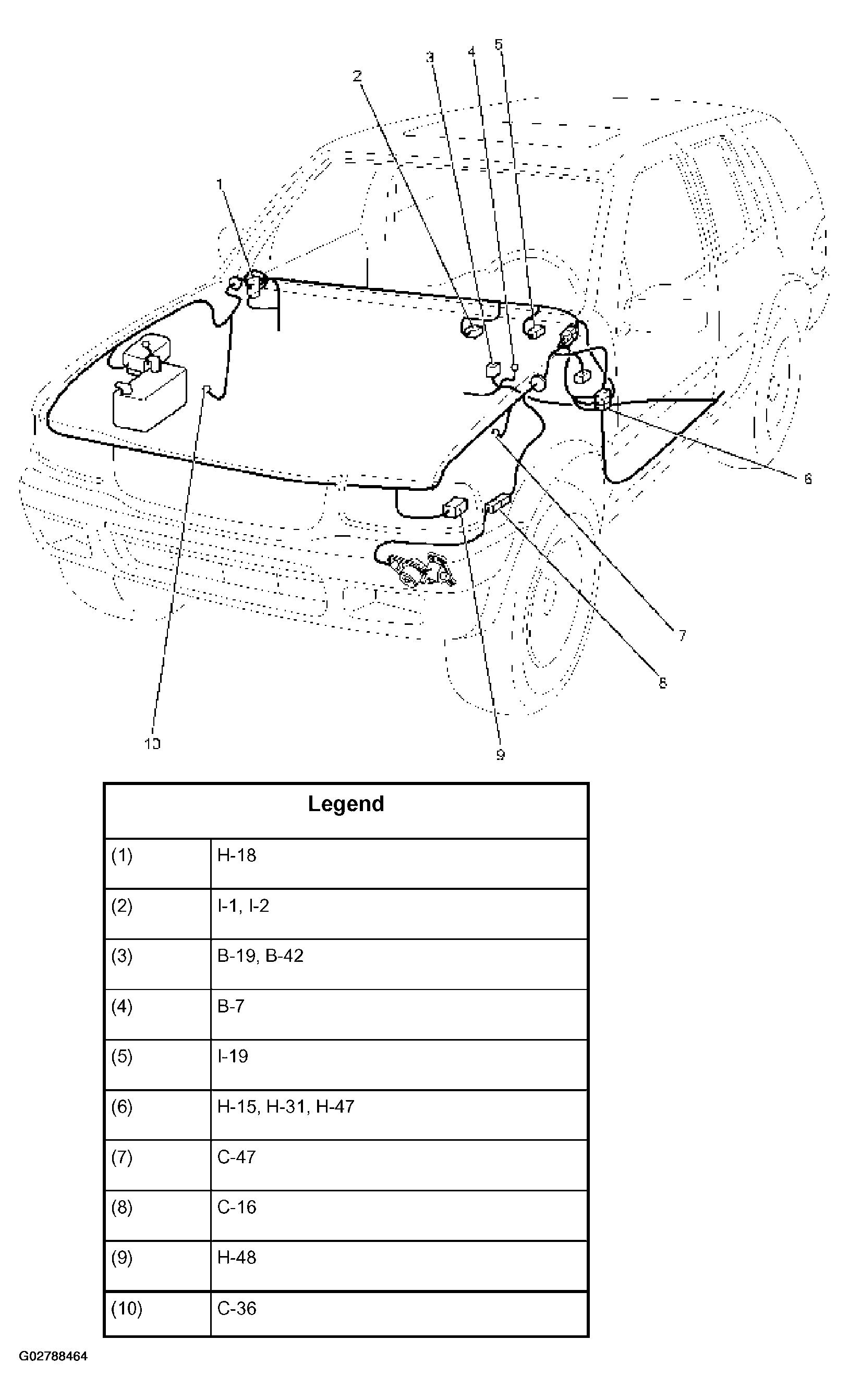

Fig 1: Identifying Shift On The Fly System
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
