Ignition Coil: Installation

  1. Install the ignition coil assembly (3).

    Connect ignition coil connector (1) and ignition coil (3), then tighten bolt (2) to the specified torque.

    Torque:  8 N.m (5.9 lb ft)

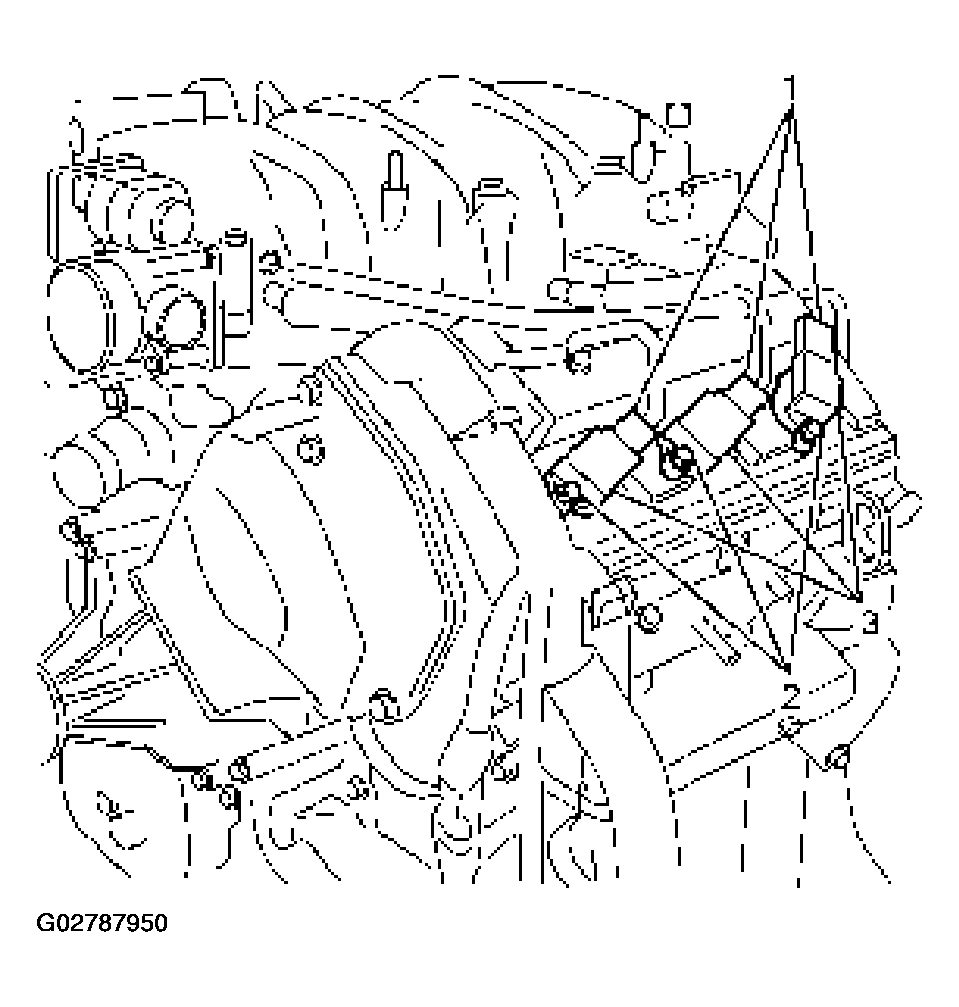

    Fig 1: Installing Ignition Coil Assembly
    G02787950Courtesy of ISUZU MOTOR CO.
  2. Connect battery ground cable.
