Brakes
>>
Traction Control
>>
Brake Control System
>>
EHCU Connector Pin-out Checks
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
EHCU Connector Pin-out Checks: Notes
Disconnect Electronic Hydraulic Control Module.
Perform checks with high impedance digital multimeter J-39200 or equivalent.

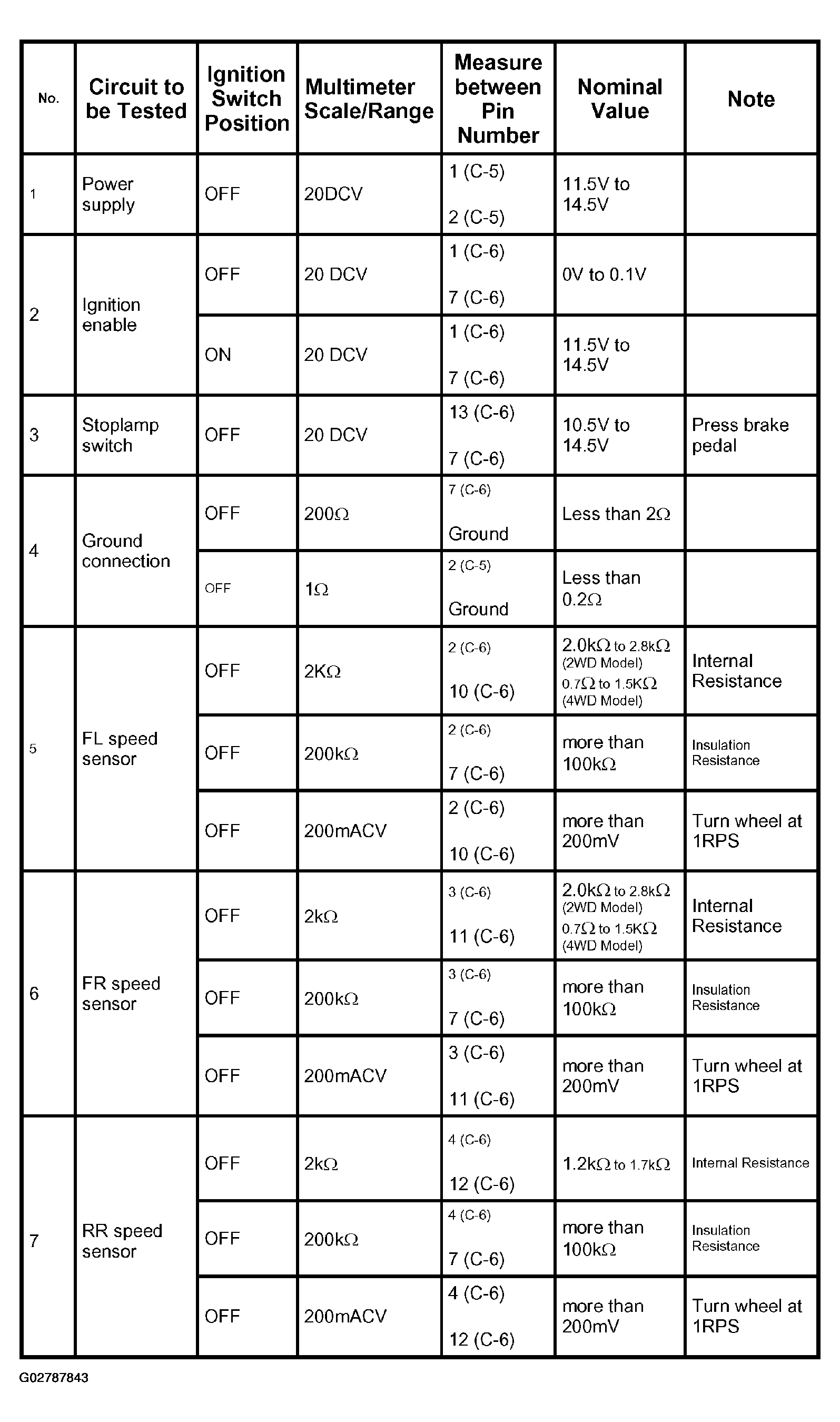

Fig 1: EHCU Connector Pin-Out Check Chart
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
