Brake Control System: General Description: Notes

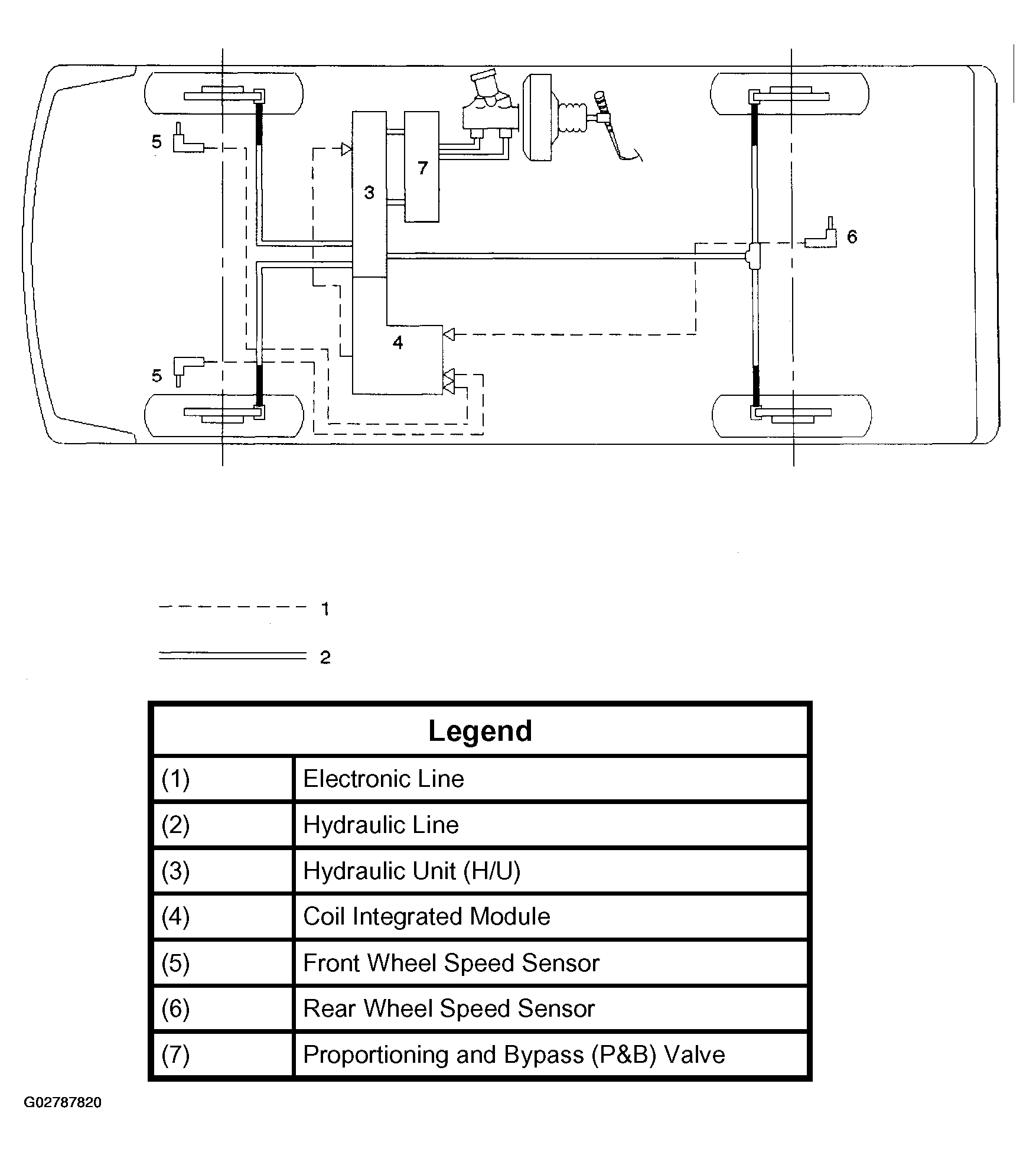

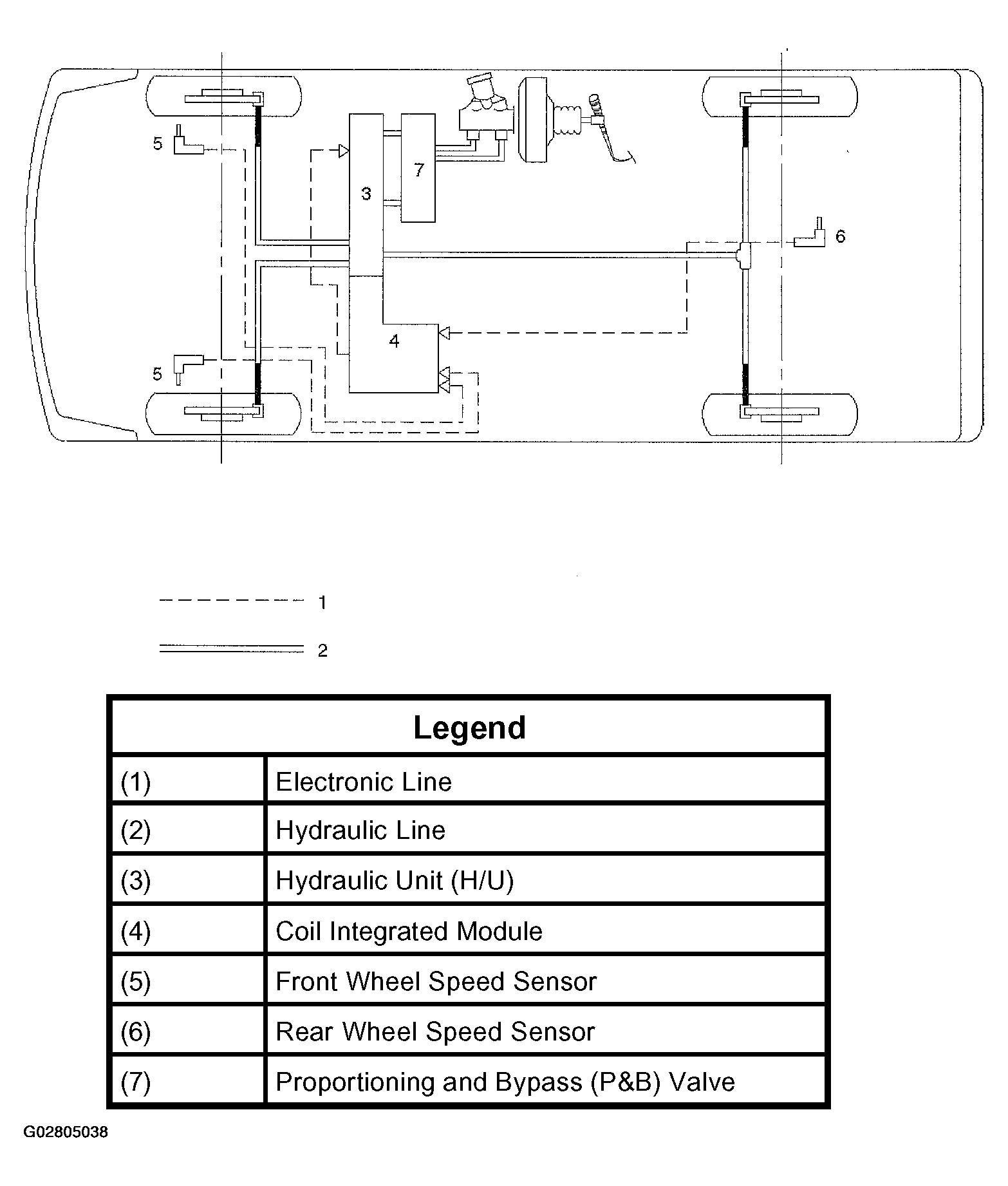

The Anti-lock Brake System (ABS) works on all four wheels. A combination of wheel speed sensor and Electronic Hydraulic Control Unit (EHCU) can determine when a wheel is about to stop turning and adjust brake pressure to maintain best braking.
This system helps the driver maintain greater control of the vehicle under heavy braking conditions.
NOTE:
The Electronic Hydraulic Control Unit (EHCU) comprises the Hydraulic Unit (H/U) and the coil Integrated Module.
