Chart C-1-3: Rear Sensor Output Inspection Procedure

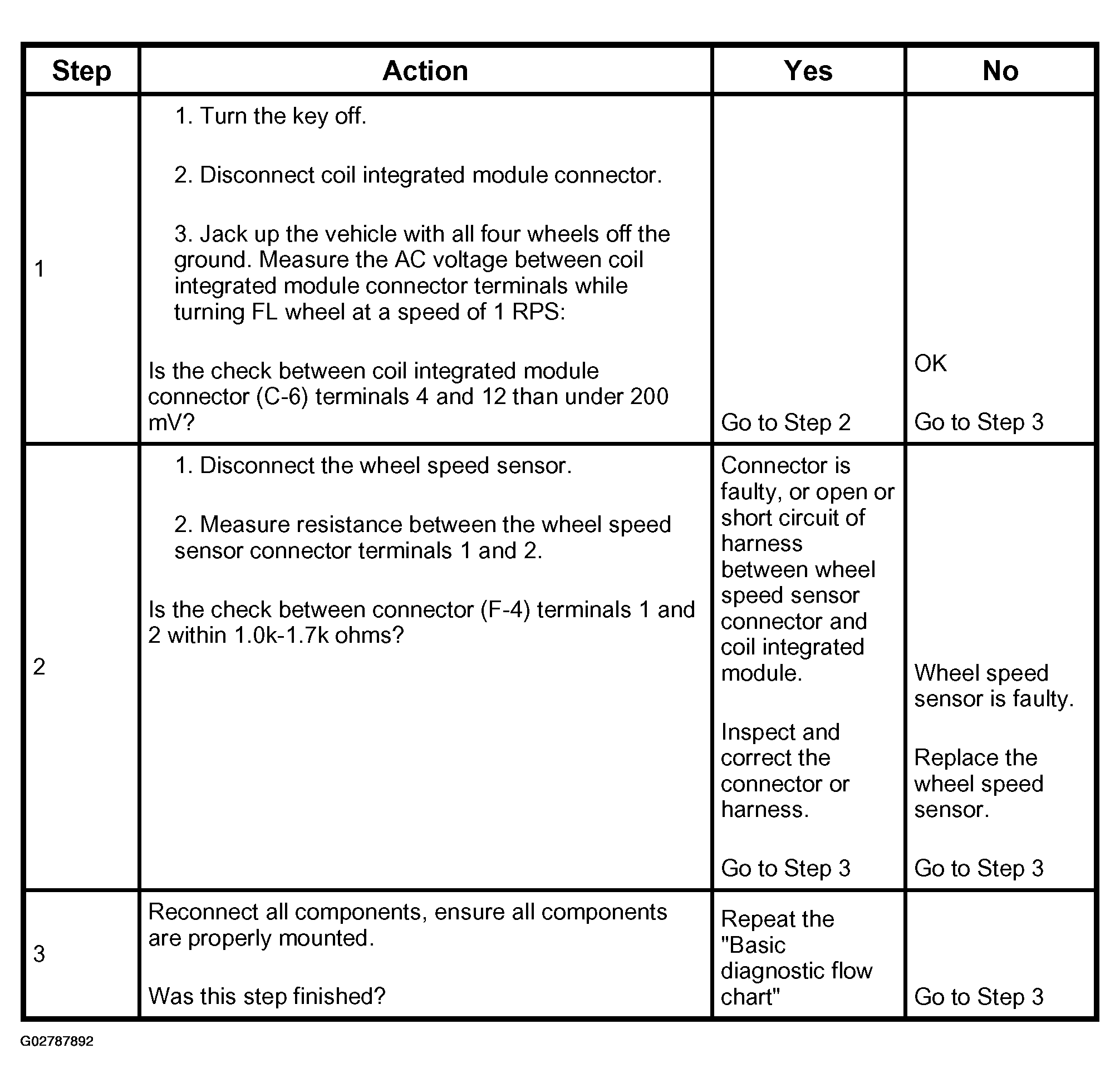

Fig 1: Unit Inspection Procedure Chart - Rear Sensor Output Inspection Procedure
G02787892Courtesy of ISUZU MOTOR CO.
