Chart TC-1: Sensor Output Inspection Procedure

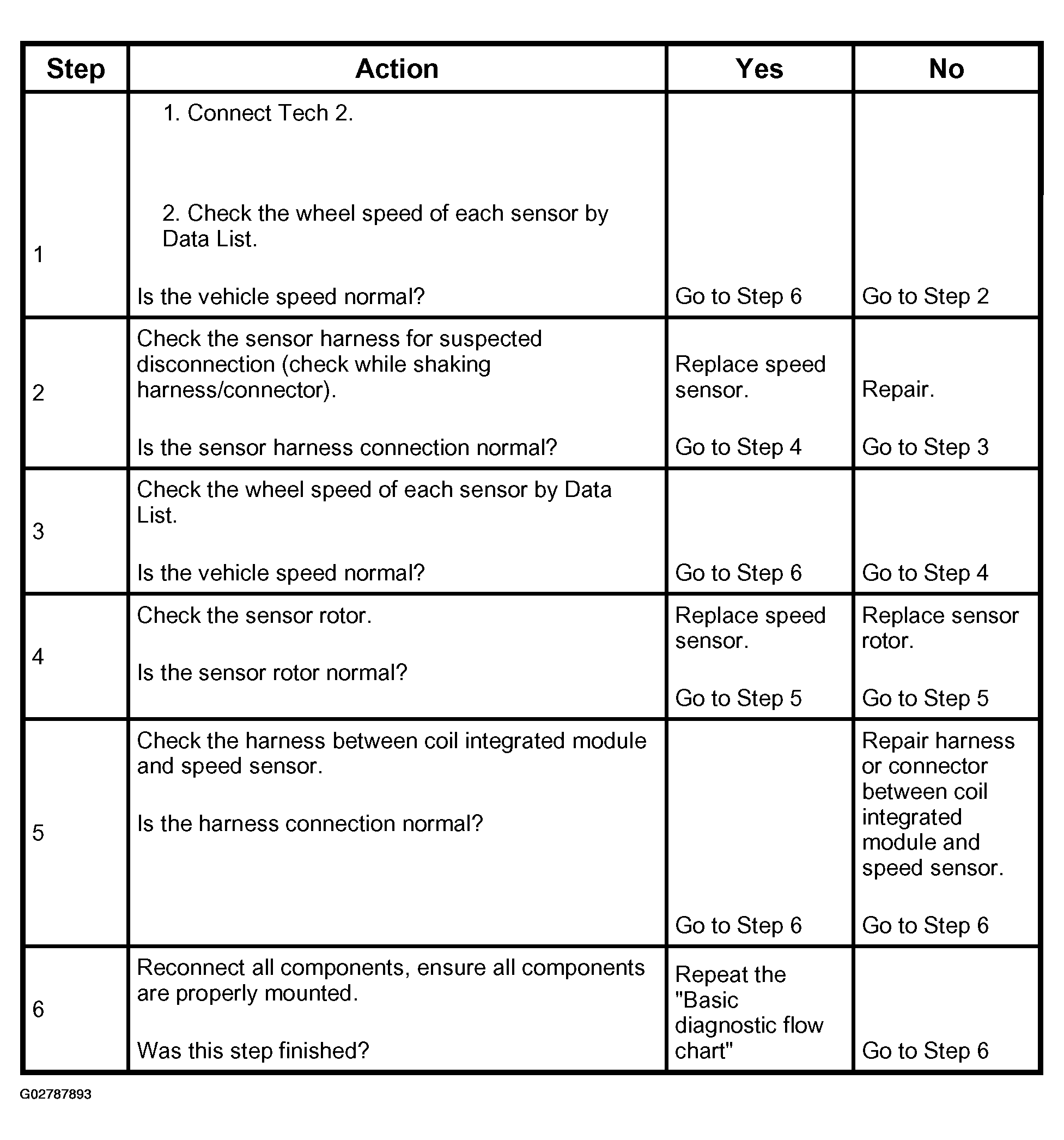

Fig 1: Unit Inspection Procedure Chart - Sensor Output Inspection Procedure
G02787893Courtesy of ISUZU MOTOR CO.
