Removal Procedure

  1. Disconnect the negative battery cable.
  2. Disconnect the ignition coil connector at the ignition coil assemblies.
  3. Remove the screw that secure the ignition coil assemblies to the rocker cover.

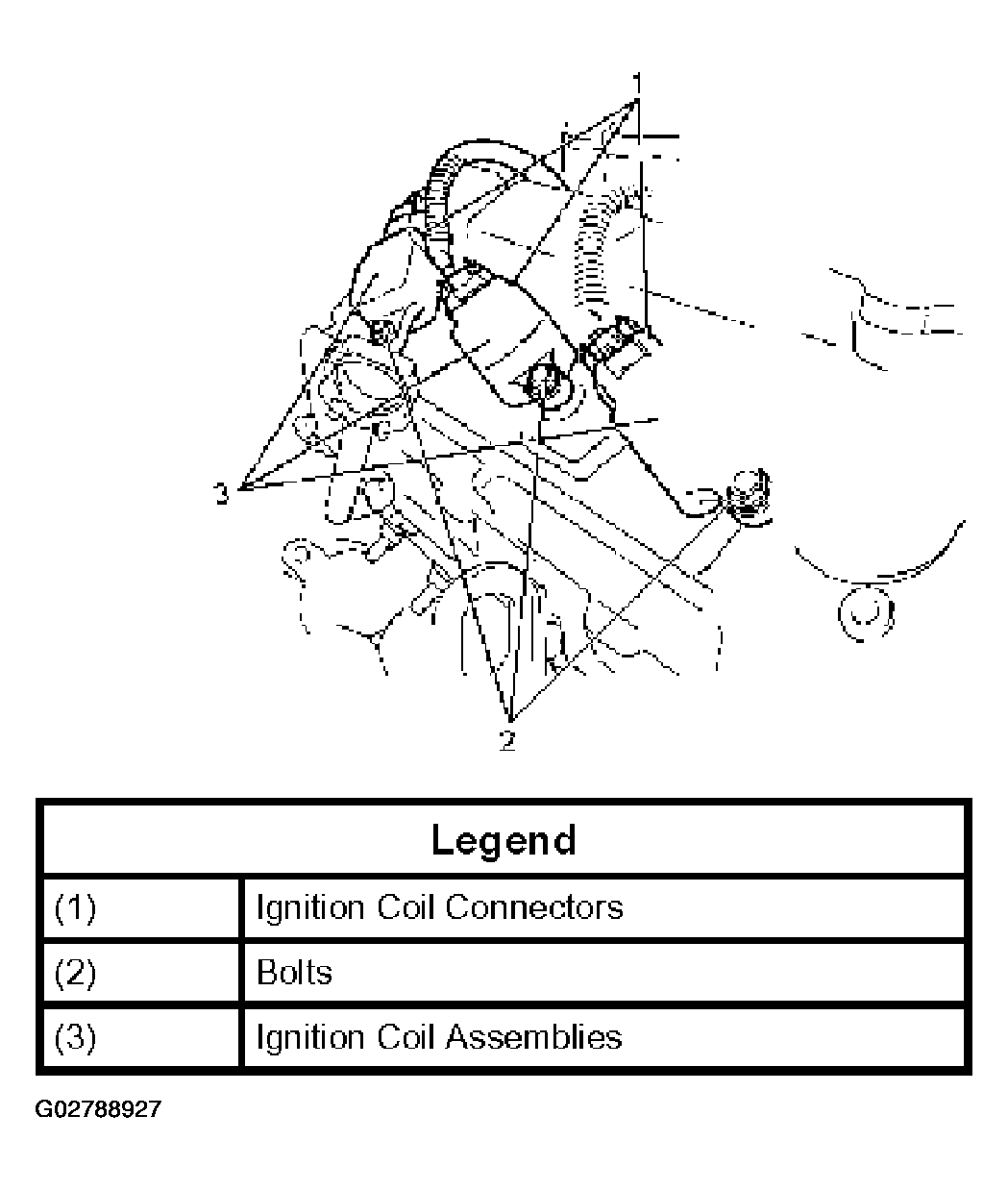

    Fig 1: Disconnecting Ignition Coil Connector At Ignition Coil Assemblies
    G02788927Courtesy of ISUZU MOTOR CO.
  4. Remove the ignition coil assemblies and the spark plug boot from the spark plug.
    • Twist the ignition coil assemblies while pulling it straight up.
  5. Use the appropriate spark plug socket in order to remove the spark plug from the engine.
