Removal Procedure

  1. Disconnect the negative battery cable.
  2. Block The wheels.
  3. Pull The "A" slider and lift the "B" lever.
  4. Disconnect the ECM electrical connectors.

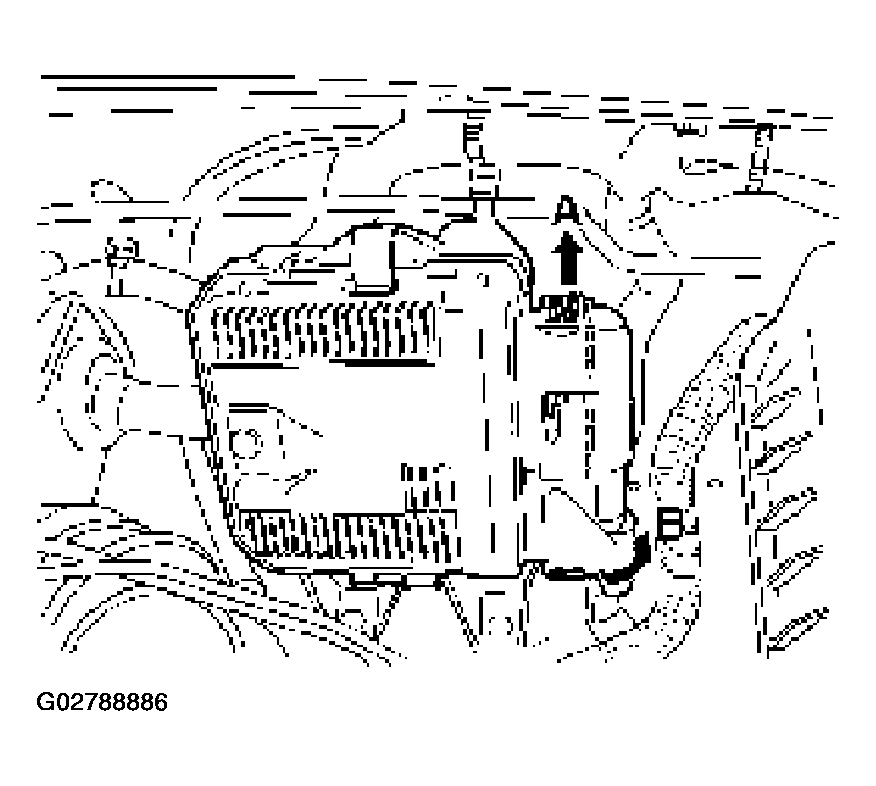

    Fig 1: Disconnecting ECM Electrical Connectors
    G02788886Courtesy of ISUZU MOTOR CO.
  5. After removing the clip which fixes the ECM to the bracket, remove ECM.

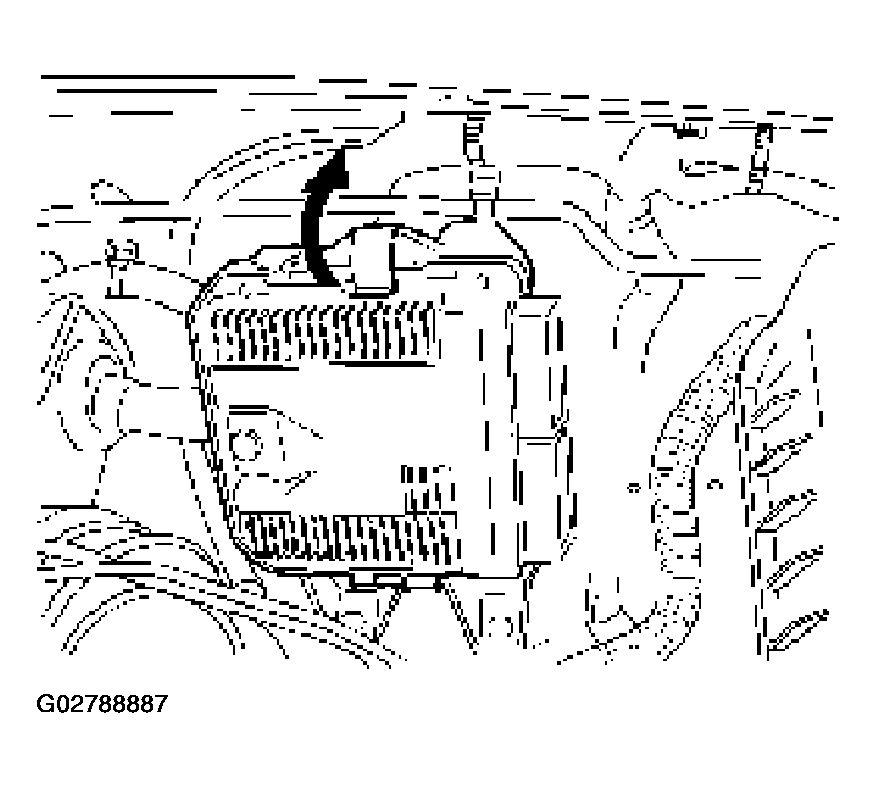

Fig 2: Removing ECM
G02788887Courtesy of ISUZU MOTOR CO.
