Removal Procedure

  1. Remove the fuse and relay box cover from under the hood.
  2. Consult the diagram on the cover to determine which is the correct relay.
  3. Insert a small screwdriver into the catch slot on the forward side of the fuel pump relay.
    • The screwdriver blade will release the catch inside.
    Fig 1: Removing Fuse And Relay Box Cover From Under Hood
    G02788918Courtesy of ISUZU MOTOR CO.
  4. Pull The relay straight up and out of the fuse and relay box.

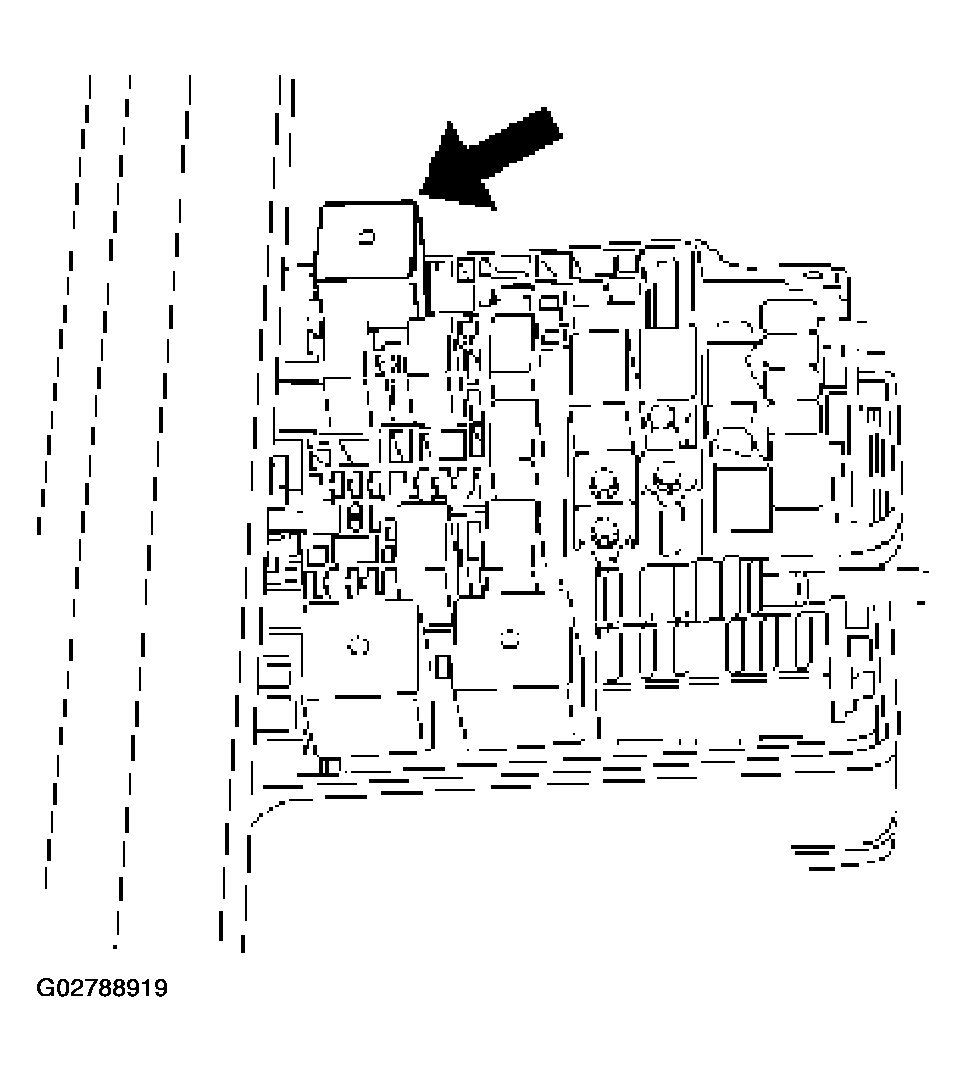

Fig 2: Pulling Relay Straight Up
G02788919Courtesy of ISUZU MOTOR CO.
