Installation Procedure

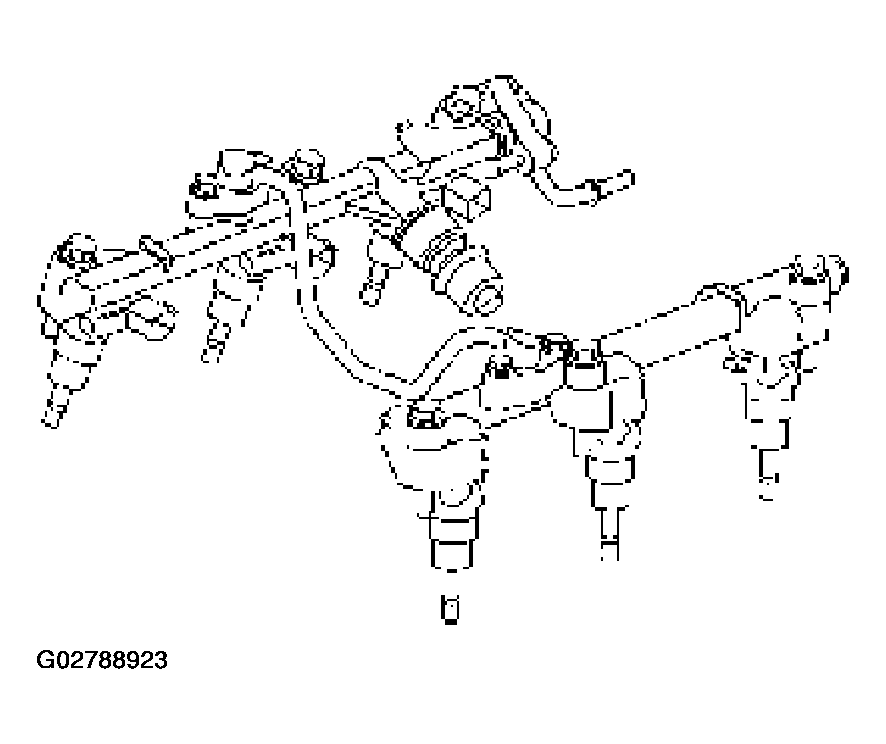

- If the fuel injectors were removed, install them. Refer to Fuel Injectors
.
- If the fuel pressure regulator was removed, install it. Refer to FUEL PRESSURE REGULATOR
.
- Install the common chamber. Refer to COMMON CHAMBER
.
Courtesy of ISUZU MOTOR CO.
- Connect the vacuum hose on Canister VSV and positive crankcase ventilation hose.
- Connect the connectors to solenoid valve, electric vacuum sensing valve.
- Connect the throttle position sensor electrical connector to throttle body.
- Install the engine cover.
- Connect the negative battery cable.
- Crank The engine until it starts. Cranking the engine may take longer than usual due to trapped air in the fuel rail and in the injectors.
