Removal Procedure

Some connectors use terminals called Metri-Pack Series 150. These may be used at the engine coolant temperature (ECT) sensor.

1. Slide the seal (1) back on the wire.
2. Insert the J 35689 tool or equivalent (3) in order to release the terminal locking tang (2).

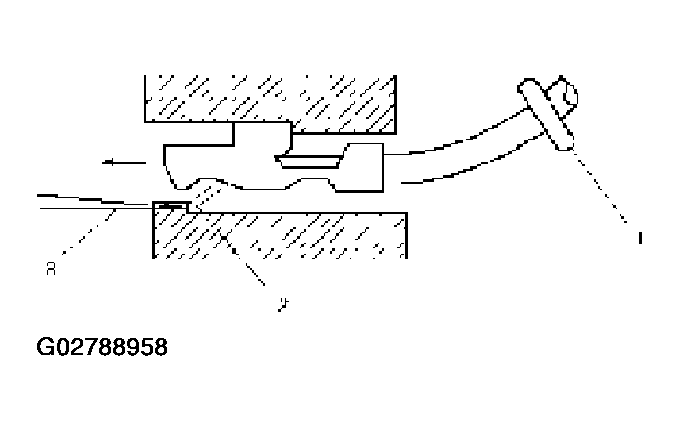

   Fig 1: Releasing Terminal Locking Tang

   Courtesy of ISUZU MOTOR CO.
3. Push the wire and the terminal out through the connector. If you reuse the terminal, reshape the locking tang.
