Installation Procedure

Use splice clips and rosin core solder in order to splice the two wires together.

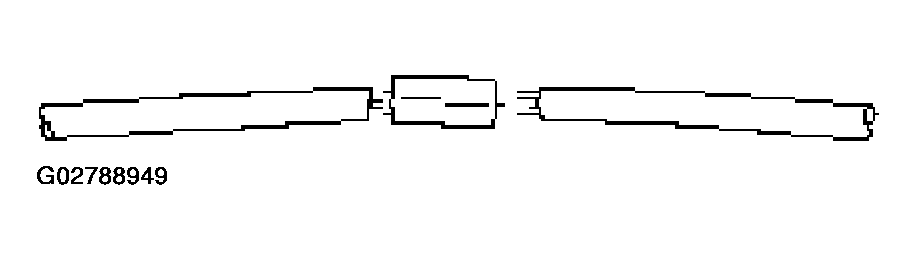

Fig 1: Using Splice Clips And Rosin Core Solder
Courtesy of ISUZU MOTOR CO.
Cover the splice with tape in order to insulate it from the other wires.

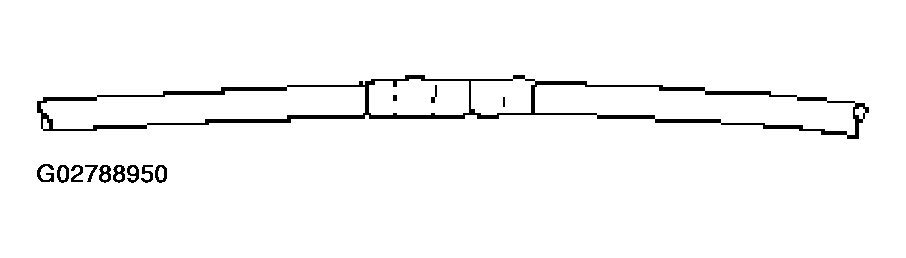

Fig 2: Covering Splice With Tape
Courtesy of ISUZU MOTOR CO.
Twist the wires as they were before starting this procedure.

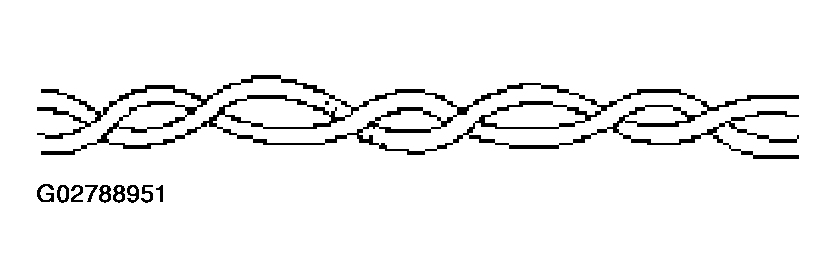

Fig 3: Twisting Wires
Courtesy of ISUZU MOTOR CO.
Tape the wires with electrical tape. Hold in place.

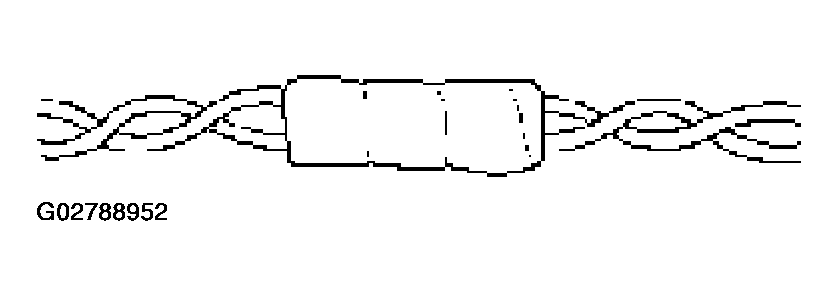

Fig 4: Tapping Wires With Electrical Tape

Courtesy of ISUZU MOTOR CO.
