Removal Procedure

A Weather-Pack connector can be identified by a rubber seal at the rear of the connector. This engine room connector protects against moisture and dirt, which could form oxidation and deposits on the terminals. This protection is important, because of the low voltage and the low amperage found in the electronic systems.

1. Open the secondary lock hinge on the connector.

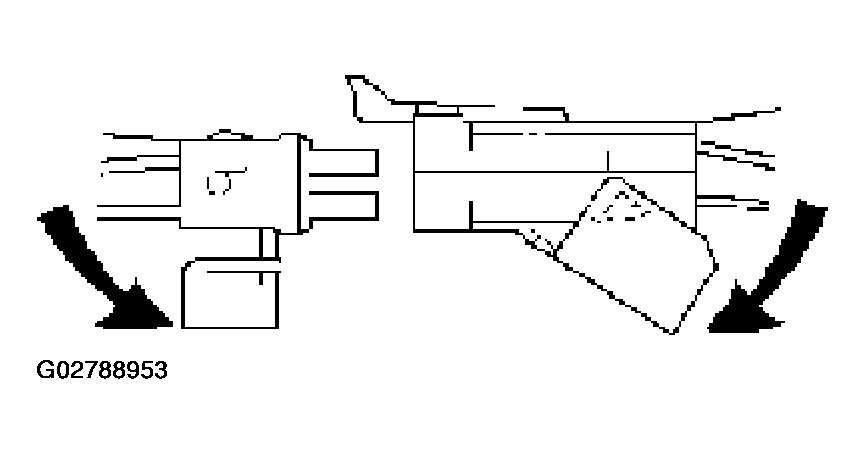

   Fig 1: Opening Secondary Lock Hinge On Connector

   Courtesy of ISUZU MOTOR CO.
2. Use tool J 28742-A or the equivalent to remove the pin and the sleeve terminals. Push on J 28742-A to release.
   NOTE: Do The use an ordinary pick or the terminal may be bent or deformed. Unlike standard blade terminals, these terminals cannot be straightened after they have been improperly bent.

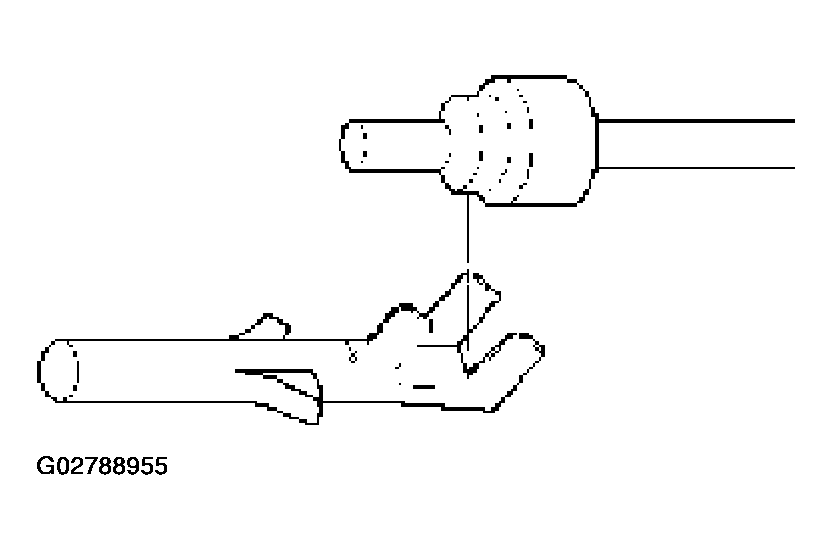

   Fig 2: Removing Pin And Sleeve Terminals

   Courtesy of ISUZU MOTOR CO.
3. Cut the wire immediately behind the cable seal.

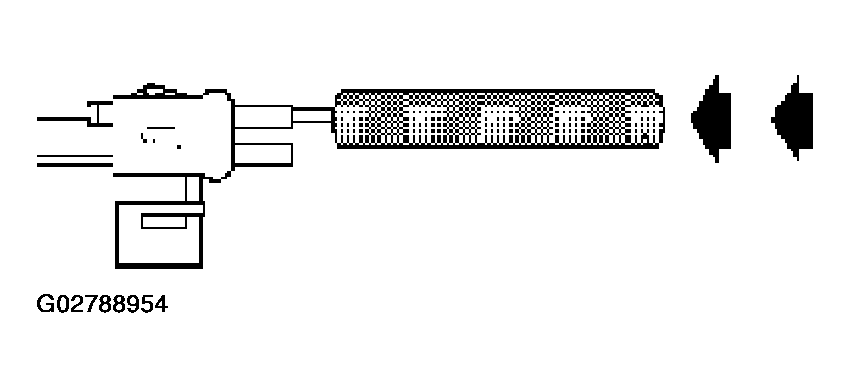

Fig 3: Cutting Wire To Cable Seal

Courtesy of ISUZU MOTOR CO.
