ECM Pinouts

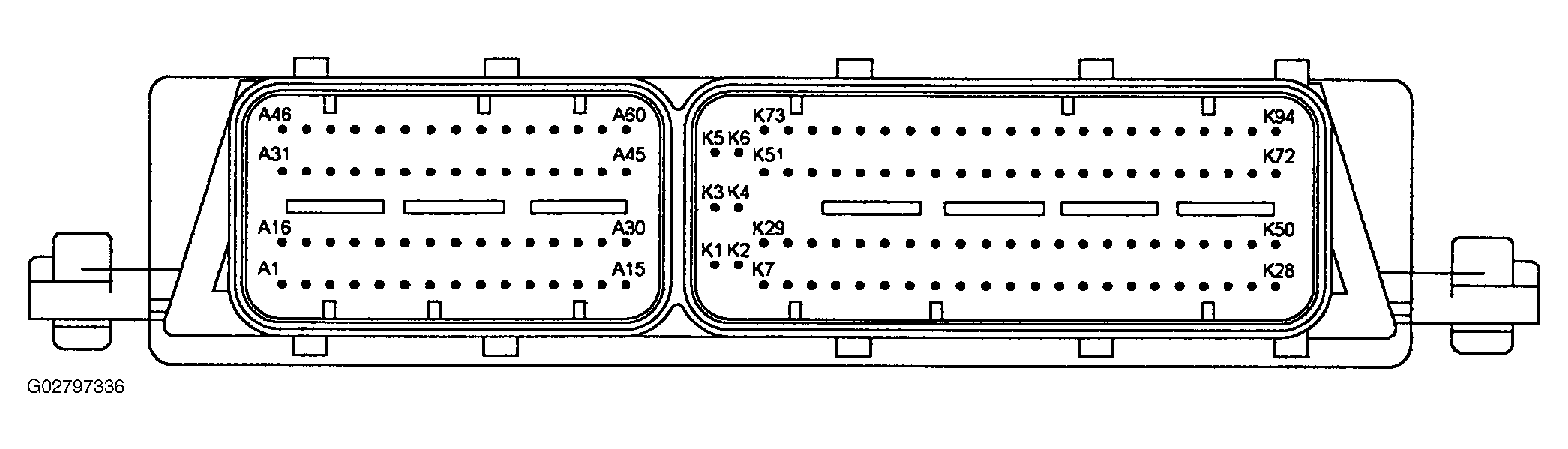

Fig 1: Locating ECM Terminals

Courtesy of ISUZU MOTOR CO.

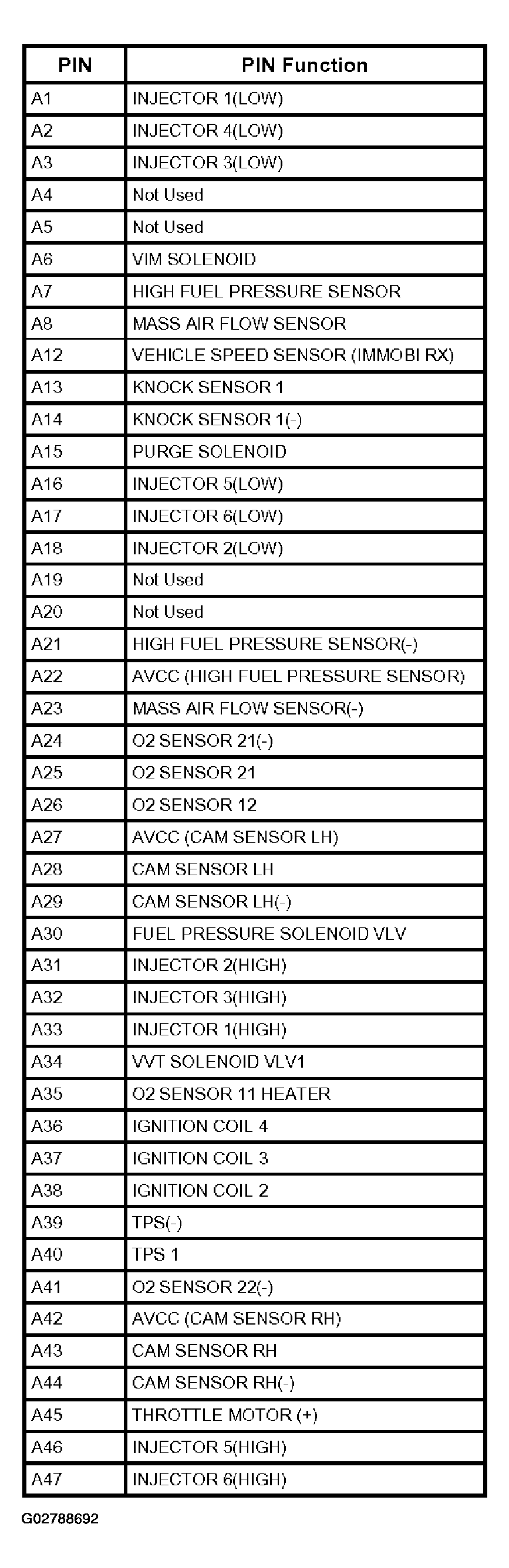

Fig 2: Identifying ECM Pinouts (1 Of 4)

Courtesy of ISUZU MOTOR CO.

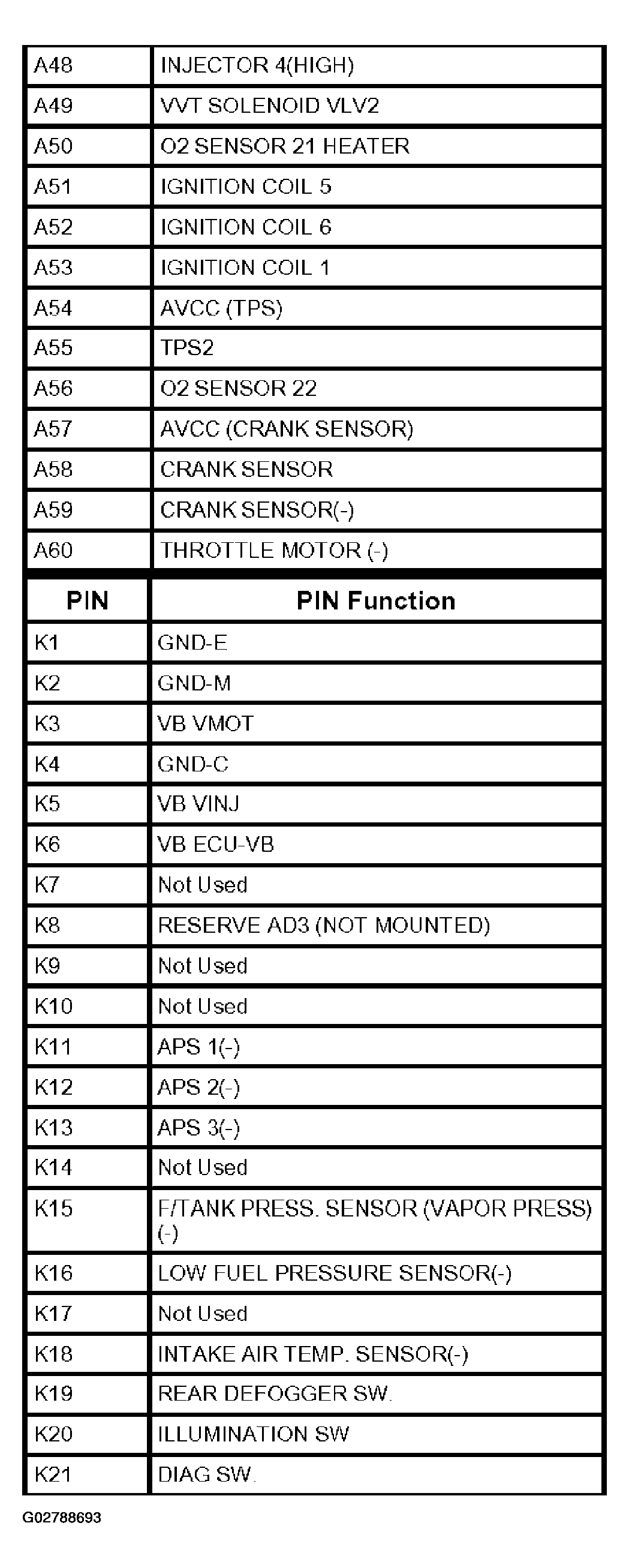

Fig 3: Identifying ECM Pinouts (2 Of 4)

Courtesy of ISUZU MOTOR CO.

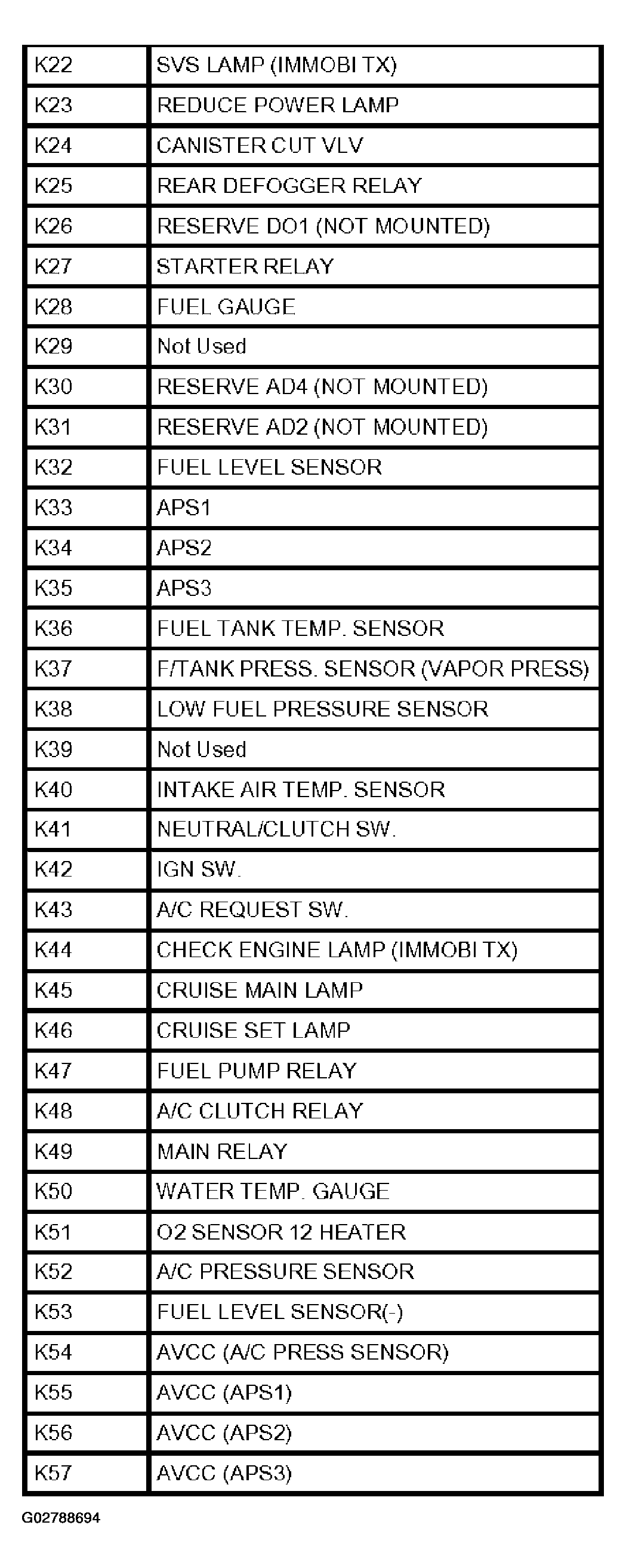

Fig 4: Identifying ECM Pinouts (3 Of 4)

Courtesy of ISUZU MOTOR CO.

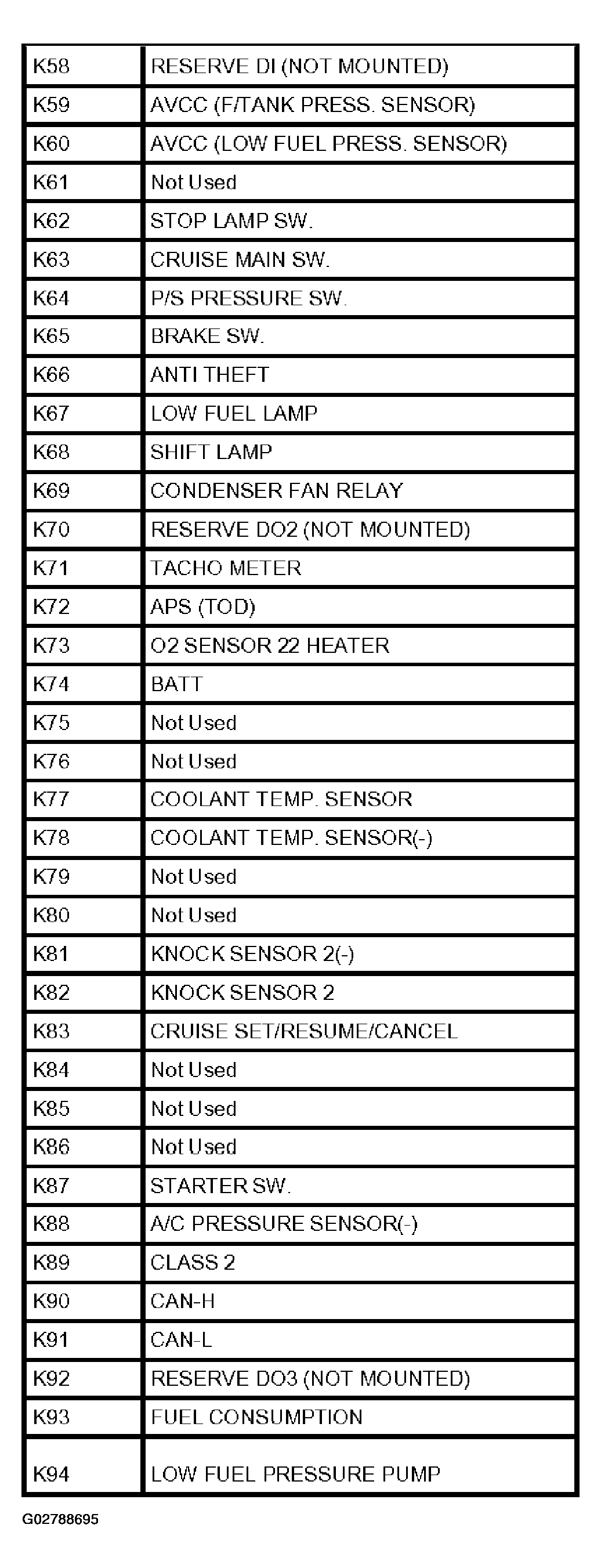

Fig 5: Identifying ECM Pinouts (4 Of 4)

Courtesy of ISUZU MOTOR CO.

ABS: Antilock Brake System

A/T: Automatic Transmission

ECT: Engine Coolant Temperature

PWM: Pulsewidth Modulation Signal

TCC: Torque Converter Clutch

APS: Accelerator Position Sensor
