Communication System Check: Notes

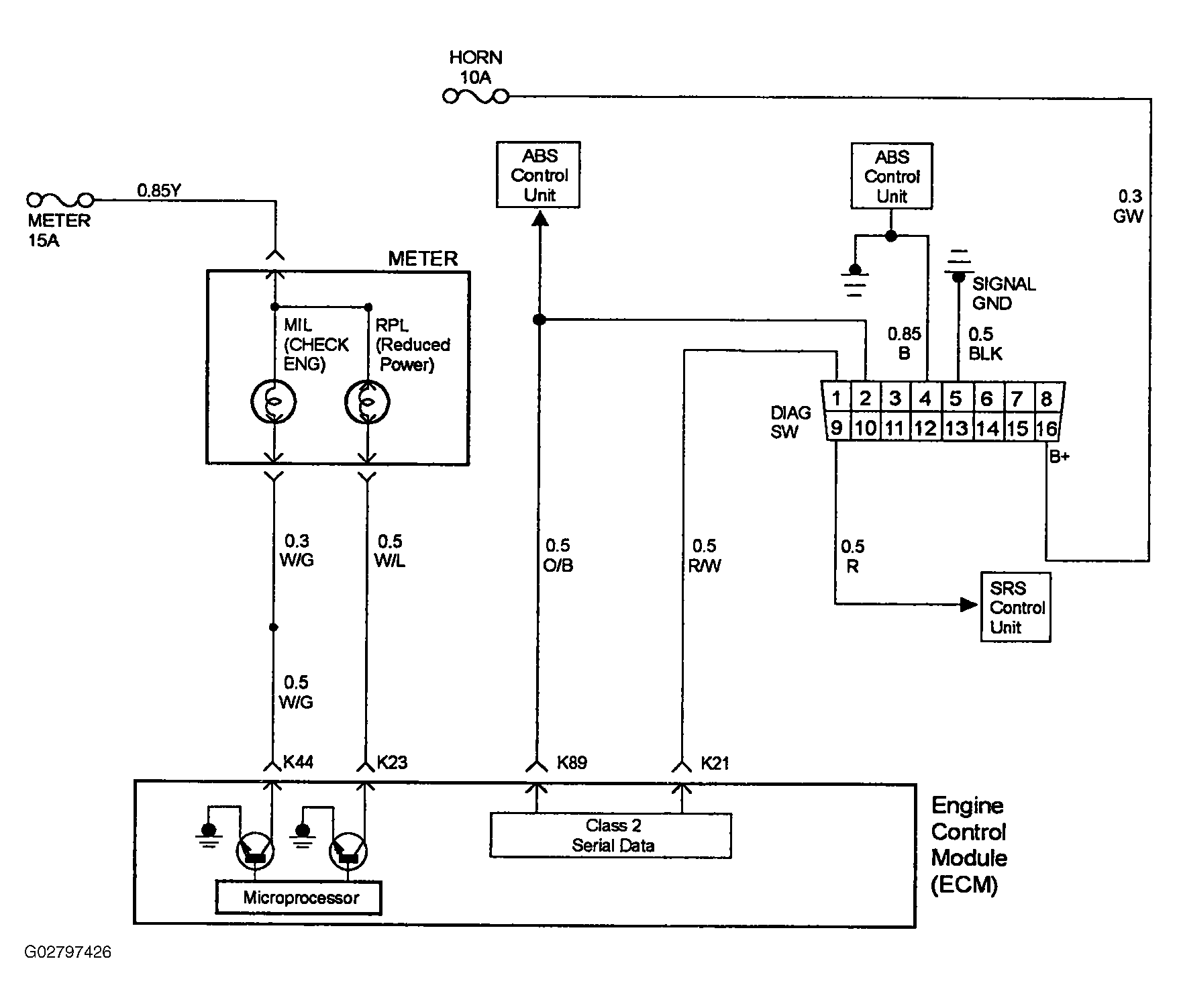

Fig 1: Identifying Communication System Check Wiring Diagram
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
